Multiscreen Introduction

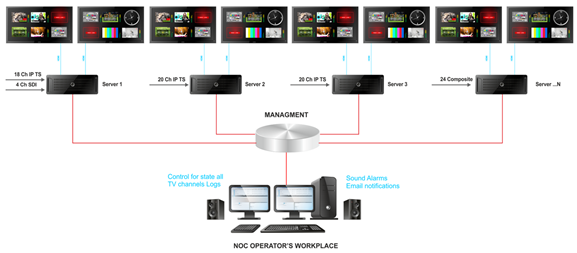

The Multiscreen system is used for real-time environment to simultaneously monitor multiple video and audio visual quality monitoring (Multiview) and data quality monitoring (QOS & QOE). A single console can simultaneously control one or more monitoring and playback terminal servers on the same interface.
Input interface: Support HD-SDI / SDI, ASI, IP, CVBS, OTT (RTMP / HLS / RTSP), DVB-T / C / S / S2 ...
Output interface: VGAL, DVI-D, HDMI, Display port output Video formats: MPEG-1 / 2/4, H.264, HEVC; Audio: MPEG-2, AC2, AAC / ADTS / ADIF, AES
Alarm: SNMP traps, Email sending, audible alarm
Support SQL Database logs
Support Encoding and Recording on the same terminal server
Multiscreen single server can support the interface
| Up to 40 Composite (NTSC, PAL, SECAM) |
| Up to 7 RF Analog (NTSC, PAL, SECAM) |
| Up to 20 SD-SDI (SMPTE-259M, 10 bit, 270 Mbit/s) |
| Up to 16 HD-SDI (SMPTE-292M, 10 bit, 1,5 Gbit/s) |
| Up to 20 DVB-ASI (ETSI EN 50083-9). Bitrate range 0..214 Mbit/s |
| Up to 32 AES/EBU (24 bit/ 192 kHz) channels |
| Up to 12 DVB-T/T2 (ETSI EN 300 744, 302 755) |
| Up to 12 DVB-S/S2 (ETSI EN 300 421, EN302-307, EN301-210) |
| Up to 12 DVB-C/C2 (ETSI EN 300 429 Annex A/B/C) |
| Up to 12 IP/Ethernet (ETSI TS 102 034) |
Adapter
| MS416 – 16 independent Composite inputs and 16 line stereo-audio inputs (NTSC/PAL/SECAM) |
| MS4 – 4 independent software switchable inputs DVB-ASI/SD-SDI |
| MS4+ –4 independent software switchable inputs DVB-ASI/SD-SDI/CVBS. 4 line stereo-audio inputs |
| MS2 – 2 independent software switchable inputs DVB-ASI/SD-SDI |
| MS2+ – 2 independent software switchable inputs DVB-ASI/SD-SDI/CVBS. 2 line stereo-audio inputs |
| MH4LM – 4 independent software switchable inputs DVB-ASI/SD-SDI/HD-SDI/CVBS. 4 line stereo-audio inputs |
| RF Tuner Card: DVB-T, DVB-C, DVB-S/S2 |
Video format
| Input video format: |
| MPEG-1（ISO / IEC11172-1） |
| MPEG-2（ISO / IEC 13818-1） |
| MPEG-4.2（ISO/ IEC 14496-2） |
| MPEG-4.10（H.264，ISO / IEC 14496-10） |
| HEVC（ITU-T H.265 Efficient video encoding） |
| Input audio format: |
| MPEG-2 Layer II (ISO 11172-3) |
| Dolby Digital (AC-3, ATSC A.52b) |
| AAC/ADTS/ADIF (ISO/IEC 13818-7, ISO 14496-3) |
| AES SMPTE 302M |
Monitoring parameters

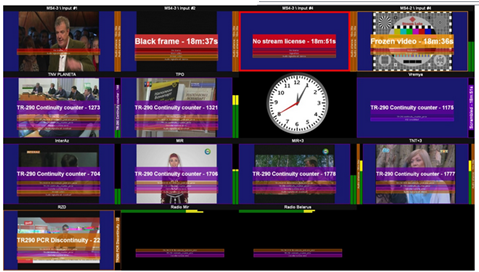

Multiscreen List monitoring
In this mode, a large number of channels are monitored in a list

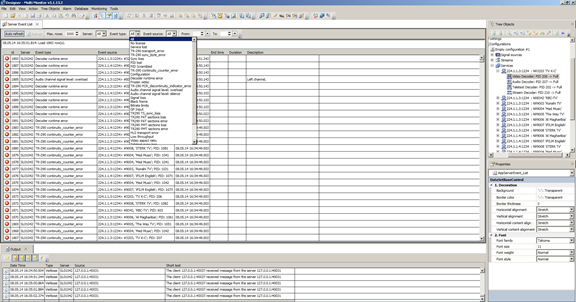

Microsoft SQL Database-Logs
Picture Encoding Module
- Source: MultiScreen server for visualization. Is complemented with simultaneous encoding of up to 4 LCD screens.
- Video encoder: MPEG-2 SD / HD or H.264 SD / HD; the bit rate of 0.2 - 30 Mbit/s
- Support for generation NIT, PAT, PMT, SDT tables.
- Ability to specify the service name in SDT table.
- Output: supports TS / IP, Multicast and Unicast protocols.
- Support of single-program and multi-program transport streams (SPTS and MPTS)
Programming keyboard
- Switching between created screen views.
- Management of screen views’ rotations.
- Full/default screen switching for any selected service.
- Play back of audio for any selected service or mute them all.
- Show/hide service’s info plates on a screen.
- Reset alarm history plates on a screen.
- Rotation of Screen templates
