Artiza Networks is the leader in 3G, 4G, and 5G radio access network (RAN) and core network (CN) node testing.

For over 20 years, Artiza has collaborated with the industry’s top vendors and operators in testing the RAN and core network nodes of the world’s most advanced mobile networks. We teamed with a major vendor and operator in Japan to perform the first ever experimental trial of LTE technologies. Since then, our high-density load testers have dominated the Japanese market, and set the standards for our global partners.

Artiza’s extensive engineering resources include PCB and FPGA/DSP development in wired and baseband formats, as well as highly skilled firmware and software engineers.

A world-class line of testing solutions, which have helped Artiza continuesly leading the market from development and early demonstrations of 4G through the implementation and rollout of 5G technologies.

DuoSIM-5G

Next-generation combined testing for gNodeBs and eNodeBs.

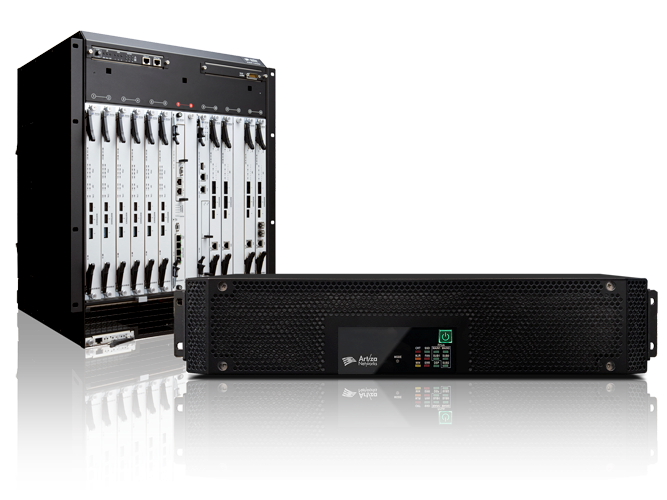

The DuoSIM-5G tests the function and performance of gNodeBs (gNB) and eNodeBs (eNB) to help network operators and equipment vendors create and develop 5G radio access networks.

DuoSIM-5G is the latest model in Artiza Networks’ award-winning DuoSIM line of base station testers, which have led the industry through the adoption of LTE, LTE-A, and LTE-A Pro.

The DuoSIM-5G test platform is adaptable and readily scalable to deliver first-to-market solutions based on 3GPP 5G New Radio (NR) standards.

High-Performance Standards

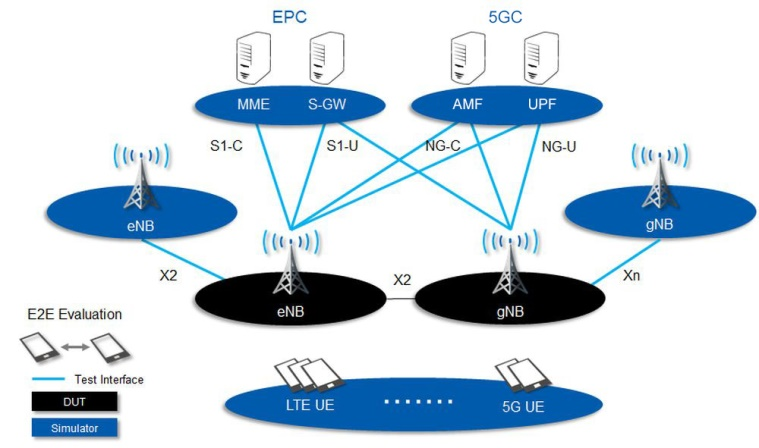

The DuoSIM-5G supports combined testing of LTE/LTE-A and 5G networks. In line with 3GPP’s releases of Non-standalone (NSA) and Standalone (SA) 5G NR specifications, the DuoSIM-5G simulates thousands of UEs across multiple LTE and 5G cells, generating diverse traffic and thousands of calls per second.

DuoSIM users develop and operate the world’s most advanced mobile communication networks. From early-stage functional testing to high-capacity performance testing, the DuoSIM-5G stays ahead of expectations with cutting-edge features and full support for all LTE bands as well as sub-6 Ghz and mmWave (above 24 GHz) spectrum for 5G.

Testing Capabilities

Performance Testing

• 5G SA / NSA modes
• C/U-Plane traffic models
• Dual Connectivity
• Carrier Aggregation, MIMO
• Network slicing
• Handovers
• Wrap-around testing
• Multi-RAT

Flexible Fronthaul Interface

• RAN/split option 7
• Split option 2
• RF

Application Testing

• VoNR, video streaming, web browsing
• Voice/video quality evaluation
• Throughput, packet loss, delay, jitter

5G Enabling Technologies

eMBB

High-throughput use cases such as :
AR, VR, immersive video streaming, and smart homes and offices will demand that your network delivers the blazing speeds promised by 5G. Ensuring this quality of experience means verifying key technologies such as mmWave, Carrier Aggregation, Dual Connectivity and Network Slicing.

URLLC

New requirements for connected cars, industrial IoT and remote medicine require 5G networks to maintain nearly 100% uptime with millisecond latency.To meet these requirements key technologies must perform together flawlessly even under stress: 5G C-Plane Improvements, 5G Core Networks, Network Slicing and End-to-End Testing.

mMTC

Smart logistics and connected cities will require networks to handle upward of one million connected devices per square kilometer. Achieving this unprecedented level of connectivity requires validating 5G C-Plane Improvements, Network Slicing, Latency and Multi-RAT performance.
