ClearView Shuttle Systems
A compact system for a desktop, lightweight for portability with a small carry case, ClearView Shuttle has all the features required for HD and SD testing with options for testing for 4K video as well.
To maintain quality as compression standards change, everyone along the chain needs to constantly measure the performance of the compression engines on which day-to-day operations depend. Any operation, large or small, from hardware/software manufacturers to television networks who develop or deploy with any kind of video signal processing in standard definition, high definition or ultra-high definition, should subjectively and objectively analyze compression performance to know how their technical and aesthetic choices will look to the viewing audience.
ClearView calculates the Video Quality Score and shows you results frame-by-frame.
Quantitative Picture Quality Evaluation

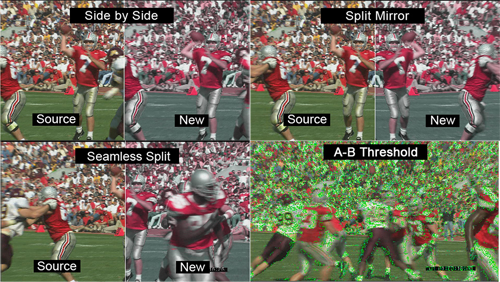

Fully Interactive Subjective Viewing Modes are Output to HDMI or HDSDI Monitor
Benefits
- Portable, lightweight solution (11.5lbs or 5.4Kg)
- 360 minutes of 1080i/60Hz 8-bit video sequences can be recorded (HD 2.5 TB Model)
- 33 minutes of 2160p/60Hz 10-bit video sequences can be recorded (4K 2.5 TB Model)
- Two models available with two storage capacity options each:
- 4K with single Quad/HDSDI IO with HDMI 2.0b output or dual HDSDI IO
- HD system, dual capture/play function with HDSDI IO
- Base model with 2.5 TB or 5.0 TB model is available
Features
- Preloaded with SD & HD test sequences/patterns
- Automatic Spatial & Temporal alignment
- Log, graph and track results
Specifications
- 8.6″x3.5″x13.75″ – 11.5lbs (15lbs in supplied hard carrying case)
- Play or Record up to 2160p/60Hz (two 30Hz sequences in side-by-side) in 4K model – CV-S2044
- Play and Record up to 1080p/60Hz Simultaneously in 4K model – CV-S2044
- Play and Record up to 1080i/60Hz in Dual HD model – CV-S2042-QA
- Play or Record 3G HDSDI to 1080p/60Hz in Dual HD model – CV-S2042-QA
- Full Broadcast I/O Specs:
- 4K Quad/HDSDI with HDMI and Analog outputs
- Dual I/O with 3G HDSDI
- ClearView File Importer format table
- ClearView Data Sheet
- ClearView System Guide
- Shuttle 4K and IP models
4K or IP Interface Video and Audio Quality Analyzer
Portable, Desktop and Rackmountable
| Format Independent Video Quality Analyzer with 4K@60Hz 10 bit Play or Record and Single 4K Output pr IP 10Gigabite for SMPTE 2022-6/7 IO (to 1080p50/60) |
| Preloaded VQEG & EBU Video Test Sequences |
| ClearView File Importer with Optional Dolby® Digital Plus Professional Input Decoder |
| Perceptual Audio & Video Metrics (PEAQ& MOVIE, JND, MS-SSIM on both DMOS and MS-SSIM scales) |
| Objective Audio & Video Metrics (LKFS Loudness, aFREQ with lip sync, PSNR) |
| New for v8.4 – Waveform & Vectorscope – WFM |
| 4K interactive side-by-side playback of two sequences up to 30Hz |
| IP model applied side-by-side playback of two 1080p50/60 sequences |
| 4K with Quad 3G input or 4K with Quad 3G and HDMI output up to 60Hz (both 4K Quad and 4K 2SI format supported) |
| Side-by-Side Viewing Modes |
| GUI controlled or command line scriptable with examples in perl. |
| Single 4K IO: Interface Description Page |
| 4K Models: CV-S2044 with 2.5 or -5 with 5 TB storage (Option: Venue Player) |
| IP Model: CV-S2043-IP-5 with 5 TB storage |
| Option: RTM application license – model CV-S2044-RTM-5 |
| Option: Test Patterns |
