ClearView Extreme Solutions
When you need a high performance solution for subjective and objective analysis of video quality, the ClearView Extreme provides a suite of repeatable, objective quality measurements and that correlate to independently verified subjective quality studies and the ability to visually compare source video to processed results.
To maintain quality as compression standards change, everyone along the chain needs to constantly measure the performance of the compression engines on which day-to-day operations depend. Any operation, large or small, from hardware/software manufacturers to entertainment delivery networks who develop or deploy any kind of video signal processing in standard definition, high definition or ultra-high definition, should subjectively and objectively analyze compression performance to know how their technical and aesthetic choices will look to the viewing audience.
ClearView calculates the Video Quality Score and shows you results frame-by-frame.

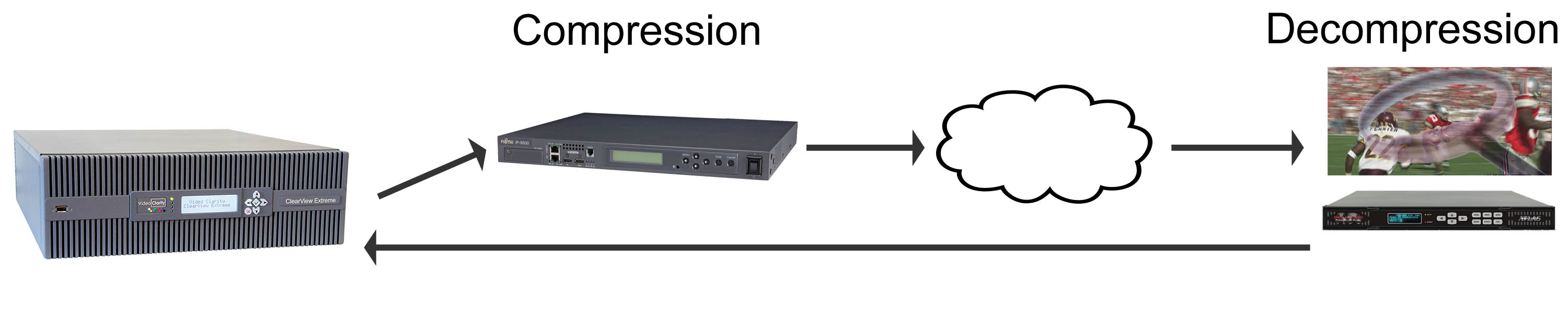

Quantitative Picture Quality Evaluation

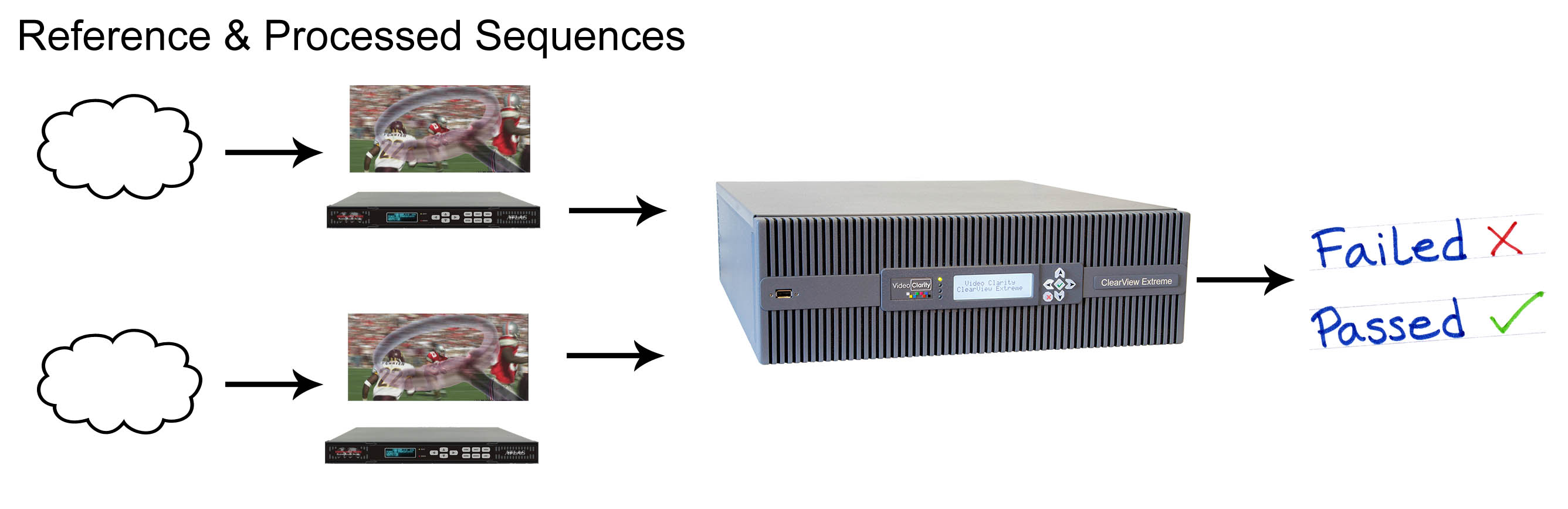

Automated Pass/Fail Testing
Interactive Subjective Viewing Modes – On Full Resolution HDSDI or HDMI outputs
Benefits
- Easy to record, align and play any resolution of video in a simple, single page graphical interface
- Measure and then view graphical representation of quality scores while playing separate, full resolution video
- Many models to choose from with hours of uncompressed video/audio storage
Features
- Preloaded with SD & HD test sequences/patterns
- Automatic Spatial & Temporal alignment
- Log & Graph and track results
- Play and Record up to 1080P/60Hz (with HDSDI 3G) simultaneously
- Play 2 or Record 2 AV sequences up to 1080P/60Hz (with HDSDI 3G)
- Play and Record up to 3840X2160 60Hz simultaneously (4K and 8K models)
- Play side by side of two 4K uncompressed 3840X2160p60 video sequences (4K and 8K models)
- Play side by side up to 30fps of two 8K uncompressed 7680X4320p video sequences (8K models only)
ClearView Extreme Specification Page Links
- Input/output specs of ClearView Extreme 4K models
- ClearView File Importer Format List with Full Overview Link
- ClearView Data Sheet
- ClearView System Guide
- Extreme 4K
- Extreme 8K
4K Dual Interface or 4K with Uncompressed IP Model
Picture Quality Analyzer and Audio Quality Tester
| Format Independent Video Quality Analyzer with 4K@60Hz 10 bit Play while Record and Dual Output |
| Preloaded VQEG & EBU Video Test Sequences |
| ClearView File Importer with Optional Dolby® Digital Plus Professional Input Decoder |
| Perceptual Audio & Video Metrics (PEAQ, MOVIE, JND, MS-SSIM on both DMOS and MS-SSIM scales) |
| Objective Audio & Video Metrics (LKFS Loudness, aFREQ with lip sync, PSNR) |
| New for v8.4 – Waveform & Vectorscope – WFM |
| 4K interactive side-by-side playback of two sequences up to 60Hz in Quad or 2SI (10G IP is up to 1080p50/60) |
| 4K Dual model applies two Quad 3G inputs, or two Quad 3G and HDMI outputs, or simultaneous 4K I/O up to 60Hz |
| 4K Single with IP model applies one Quad 3G for input or output, mix and match IP with SDI for simultaneous 1080p I/O up to 50/60 Hz. |
| Side-by-Side Viewing Modes |
| GUI controlled or command line scriptable with examples for python, perl, etc. |
| Dual 4K IO: Interface Description Page |
| Model CV-S8084-4K-12 – 12 TB, or Model CV-S8084-4K-24 – 24 TB storage |
| Single 4K + IP Models: CV-S8084-IP-12 -12 TB, or CV-S8084-IP-24 – 24 TB storage |
| Option: Venue Player |
| Option: Test Patterns |
| With RTM 4K license – models CV-S8084-RTM-4K-12 or CV-S8084-RTM-4K-24 |
| ClearView Extreme Solution Page |
8K Picture Quality Analyzer and Audio Quality Tester
| Format Independent Video Quality Analyzer with 8K@60Hz 10 bit Play or Record and Dual 4K Output |
| Preloaded VQEG & EBU Video Test Sequences |
| ClearView File Importer with Optional Dolby® Digital Plus Professional Input Decoder |
| Perceptual Audio & Video Metrics (PEAQ, MOVIE, JND, MS-SSIM on both DMOS and MS-SSIM scales) |
| Objective Audio & Video Metrics (LKFS Loudness, aFREQ with lip sync, PSNR) |
| New for v8.4 – Waveform & Vectorscope – WFM |
| 8K interactive side-by-side playback of two sequences up to 30Hz |
| 4K with Quad 3G recording or simultaneous 4K record and input up to 60Hz in Quad or 2SI format |
| Side-by-Side Viewing Modes |
| GUI controlled or command line scriptable with examples for python, perl, etc. |
| Model CV-S8088-8K-16 with 16 Terabyte storage |
| Model CV-S8088-8K-32 with 32 Terabyte storage |
| With RTM 4K license – models CV-S8088-8K-RTM-4K-16, CV-S8088-8K-RTM-4K-32 |
| Option: Test Patterns |
| ClearView Extreme Solution Page |
