XCAP
XCAP – PC BASED ANALYZER
- Quick troubleshooting and conduct root-cause analysis of wireless networks
- Including massive volumes of drive test data
- Provide detailed reports on service-specific and overall network performance
- Benchmark radio and application level metric
- Build and present KPI reports across the enterprise
- Analyze trends and perform complex statistical analysis

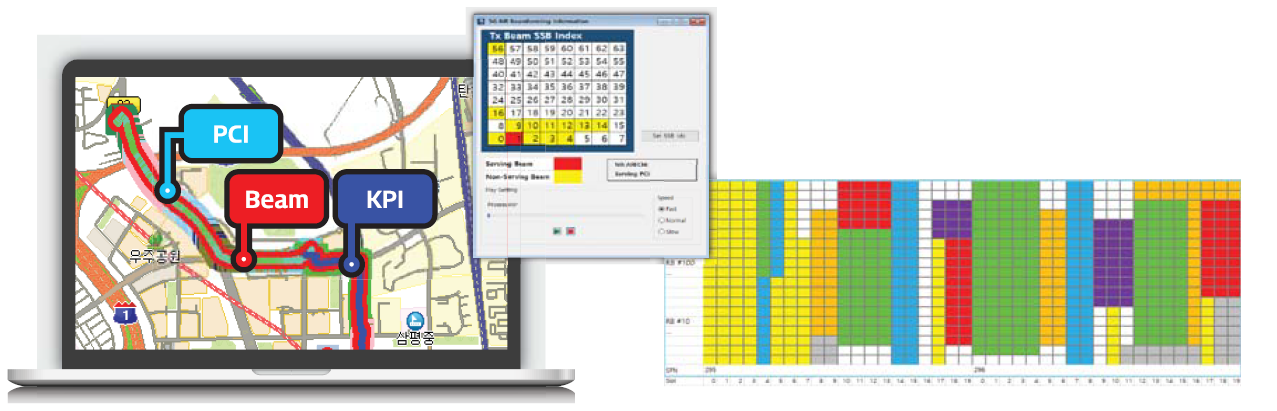

- Visualize service and network-level performance geospatially
- 5G-NR Chipset: Qualcomm, Samsung, Mediatek, Hisilicon
- 5G-NR Scanner: PCTEL, R&S (Rohde-Schwarz)
- ML1 Serving Cell Beam Mgmt / MAC BRS Report
- ML1 Searcher Init Acquisition / ML1 Searcher Measurement
- Tx Power Control Info / MAC LL1 CSF Info / MAC RACH MSG1 ~ MSG4
- MAC PDSCH Info / PDCCH DCI Format Info / PDSCH BLER Info
- L1 & L2 Throughput / RLC & PDCP Statistics Summary
- NR-EUTRA Cell Info / NR-PHY Debug Statistics / NR-PHY PRACH Status
- L1 & L2 Throughput / NR-PHY PRB / NR-PHY TBS / NR-PHY MCS
- NR-PHY BLER / RLC & PDCP Statistics Summary, NSA Coverage Delta Analysis
- [Qualcomm] MAC DCI Info[Per Slot], MAC PDSCH Statistics[Per Slot], MAC PDSCH Status[Per Slot]
- [Samsung] NR-PHY PDSCH Status, NR3333-PHY PUSCH Status, NR-PHY DCI UL/DL Grant Info
- PCI & Beam Management Info / Top Nth PCI Info
- NR-PCI Pollution & Interference Analysis / Dominant Cell Holding Info
Powerful Analysis & Reporting
XCAP is a powerful and highly configurable analysis platform that allows you to mine, analyze and report data gathered in XCAL. Available as both a stand-alone platform and an enterprise-grade client-server solution, it supports all wireless standards and major third party data formats.
XCAP minimizes OPEX by automating the whole network post-processing and troubleshooting workflow. Because it’s designed by engineers for engineers, it comes loaded with a comprehensive list of standard-specific KPIs, is easy to use, configure and maintain and is continually evolved to capture user feedback and major feature upgrades. Together with XCAL, XCAP offers unparalleled sophistication and simplicity in improving your network performance.
Use XCAP to
5G-NR(NSA) Features
Supported Chipset and Scanner:
5G-NR Qualcomm Log Analysis : L1 / L2
5G-NR Samsung Log Analysis : L1 / L2
5G-NR Log Analysis : L3 (RRC/NAS)
Signaling Call Flow and Logging Message Viewer provide the supported parsers from the latest RRC/ NAS specification. [3GPP 38.331 / 24.301 / 24.501(TBD)]
5G-NR Log Analysis : Slot Level
5G-NR PCTEL / R&S Log Analysis
5G-NR Main Tree
5G KPI Main Tree (for analysis beginner) & Chipset-Specific Main Tree
