TLV410S Obsolete

Obsolete, Replaced by TLV420S

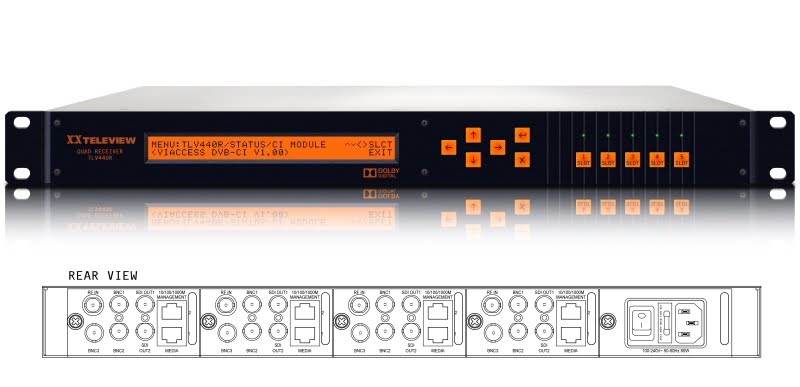

Up to four TLV410S DTV module is housed in 1RU frame, model TLV440R. The TLV410S can have a tuner, DVB-ASI input, SMPTE-310M input and MPEG over IP input. MPEG stream output is available through DVB-ASI, SMPTE-310M and MPER over IP. MPEG over IP can have up to five channel stream. Designed to support all the industry standard forms of the DVB/ATSC standard, it supports 576i/480i, 576p/480p, 720p and 1080i decoding. Video output is in SDI/HD-SDI digital format with embedded audio. Audio output is available through embedded audio and AES-3 BNC connectors.

Features

• Each TLV410S may have one tuner. DVB-S/S2 tuner, DVB-T/T2 tuner, ISDB-T tuner and 8VSB/QAM-B tuner
• Each TLV410S may have up to three BNC connectors which can be DVB-ASI input, SMPTE-310M input, DVBASI, SMPTE-310M output or AES-3 PCM or compressed audio output
• MPEG-2(HD/SD) decoding, MPEG-4/H.264 decoding
• H.264(MPEG-4)/MPEG-2 MP@HL compliant video decoder supplies digital video signal
• Digital video signal compliant with SMPTE-259M/SMPTE-292M(SDI) with embedded 8 channel audio(SMPTE-299M) or embedded compressed audio
• Dolby digital AC-3 and HE-AAC and MPEG-1/2 5.1 channel audio decoder (MPEG2 AAC-LC(13818-7), MPEG4 HE-AACv1(14496-3. 2003) and MPEG4 HE-AACv2(14496-3. 2004) supported
• Dolby digital (AC-3) or PCM stereo audio selectable over BNC connector
• SDI video signal with 1080i/720p/576p/576i(480i) video mode
• BISS-1/E support
• PSIP/EIA-608, 708 closed caption compliant
• Firmware upgradeable via the internet
• SNMP (Gigabit Ethernet) management support
• TS transmission/reception over IP(UDP/RTP)
• FEC support(PRO-MPEG parity)
• 2 lines by 40 characters LCD display
• 1U rack mountable frame

IP Gateway

TLV410S is Gigabit Ethernet IP Gateway product that performs the following:

• Three channel ASI to IP Gateway
• Three channel SMPTE-310M to IP Gateway
• DVB-S/S2 to IP Gateway
• DVB-T/T2 to IP Gateway
• 8VSB to IP Gateway
• Five channel combination of ASI/310M/DVB-S,S2/DVB-T,T2/8VSB to IP Gateway

Specification

• MPEG2/MPEG4 video over UDP and RTP
• Simulcast and Multicast (IGMP v3)
• FEC with Pro MPEG CoP3 - SMPTE 2022
• ASI throughput: 216Mbps each
• IP throughput: 450Mbps
• Web based remote control: http and SNMP support

Available Tuner Options

• DVB-S+S2, DVB-T+T2, 8VSB+QAM, ISDB-T options
