CAT 6 Cable simulator reproduce the characteristics of 4 pairs (8-wire) of CAT6 network cable with an RJ-45 connector at each end.

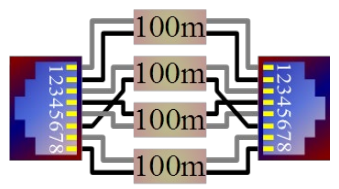

The pins of the RJ-45 are connected according to the Ethernet 568A or 568B standards as shown in the figure at the left.

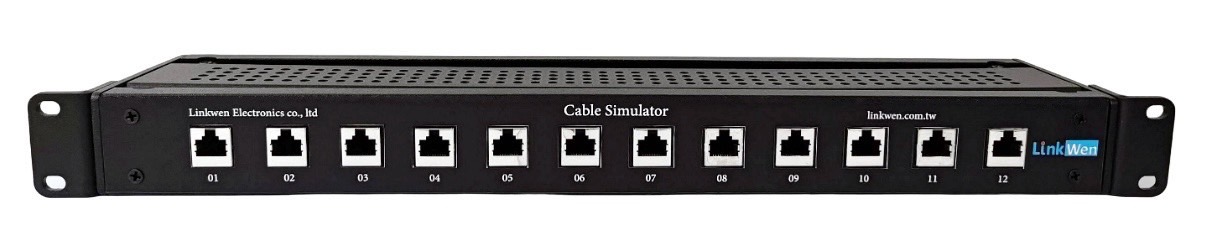

12 wirelines rack mount case 19" x 1.75" x 3.5" 480mm x 45mm x 90mm 12 ports at the front, 12 at the back

The following lengths are available:10, 20, 40, 80 and 100m
