MVE5000/MVD5000
AVC/H.264 Compact IP Encoder/Decoder
MVE5000/MVD5000
1U Half-Rack Low Bit Rate and Super Low Latency
Superior quality and performance using NTT Electronics' cutting edge LSI. Compact 1U half-rack size, suitable for the Flyaway or the small OB van.
Key features
- NTT Electronics' High Performance In-House Single Chip LSI
- Inherits the high picture quality cultivated by contribution applications
- 1 and 3 Frame Super Low Latency
- Multiple Interface
- Video I/O: HD/SD-SDI, HDMI, Analog Composite (Analog Model)
- Audio I/O: SDI embedded Audio, HDMI embedded Audio, Analog (Analog Model)
- Stream I/O: IP (100Base-TX/1000Base-T), DVB-ASI (ASI Model)
- Seamless Protection Switching for IP input
- Seamless bit rate change
- Network Function
- Simultaneous outputs for redundancy (Encoder)
- Supports IPv4/v6, FEC, ARQ which enables high quality video transmission using IP network
- Compact 1U Half-rack
- TS Pass Through
- Quick Boot up
- RoHS Compliant

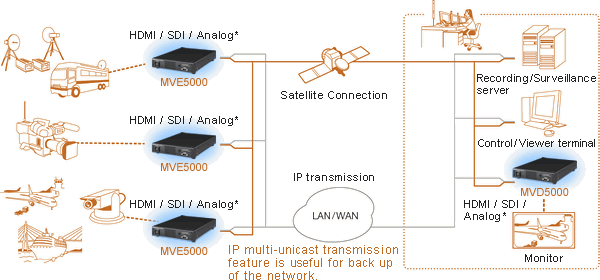

Application
* Analog Model
Front/Rear Panel (Encoder)

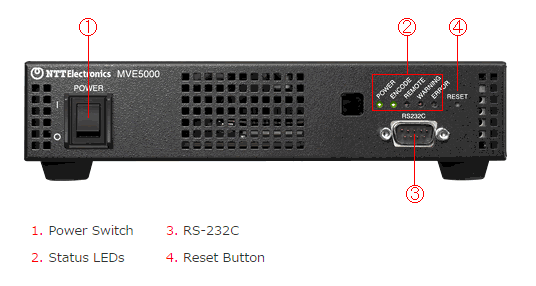

MVE5000 (Encoder): Front panel

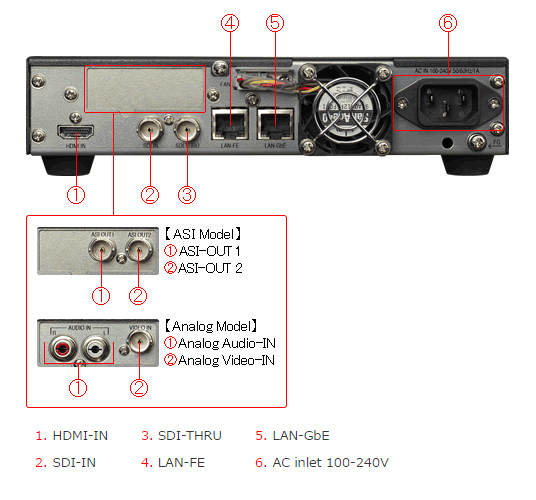

MVE5000 (Encoder): Rear panel
Front/Rear Panel (Decoder)

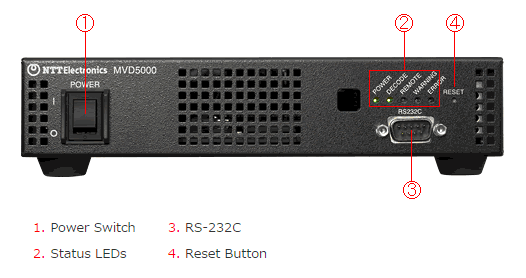

MVD5000 (Decoder): Front panel

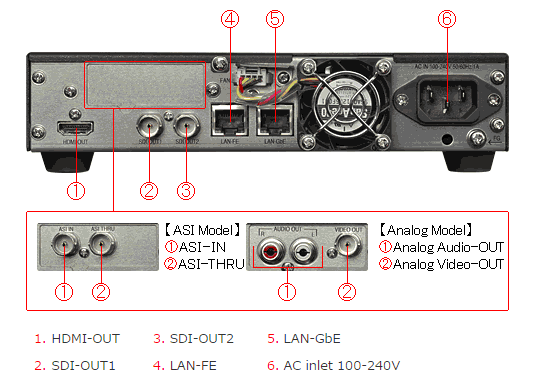

MVD5000 (Decoder): Rear panel
Specifications
Video
| Encoder | Decoder | Specification | ||
|---|---|---|---|---|
| Standard Model | Analog Model | ASI Model | ||
| Input Format |
Output Format |
HD-SDI (SMPTE292M), SD-SDI (SMPTE259M), HDMI (HDCP non-compliant) | ||
| Analog Composit (NTSC/PAL) | ||||
| Encoding Format | Decoding Format | MPEG-4 AVC/H.264 Profile: High, Main Level: 4.1/4.0/3.2/3.0 |
||
| MPEG-2 Video (Decoder only) HD: MP@HL SD: MP@ML |
||||
| Video Format | 1080i: 1920/1440/1280/960 x 1080 720p: 1280/960/640 x 720 576i: 720/352 x 576, 352 x 288 480i: 720/352 x 480, 352 x 240 |
|||
| Frame Rate | 1080i: 25/29.97 (SMPTE274M) 720p: 50/59.94 (SMPTE296M) 576i: 25 (ITU-R BT.656-4) 480i: 29.97 (SMPTE125M) |
|||
Audio
| Encoder | Decoder | Specification | ||
|---|---|---|---|---|
| Standard Model | Analog Model | ASI Model | ||
| Input Format |
Output Format |
SDI Embedded Audio, HDMI Embedded Audio (2ch only) | ||
| Analog Audio : RCA | ||||
| Encoding Format |
Decoding Format |
MPEG-1 Audio Layer II (2ch) max. 2PES | ||
| SMPTE302M (2ch) max. 2PES | ||||
| MPEG-2 AAC (2ch, 5.1ch) max. 1PES | ||||
System
| Encoder | Decoder | Specification | ||
|---|---|---|---|---|
| Standard Model | Analog Model | ASI Model | ||
| Output Stream Type |
Input Stream Type |
MPEG-2 TS, MPEG-2 TTS (IP only), MPEG-2 PS (IP only, Decoder only) | ||
| Output Interface |
Input Interface |
IP | IP, DVB-ASI | |
| Max. Output TSRate |
Max. Input TSRate |
Encoder : 50Mbps, Decoder : 80Mbps | ||
Network (Encoder/Decoder)
| Interface | LAN-GbE 10BASE-T/100BASE-TX/1000BASE-T (RJ-45), LAN-FE 10BASE-T/100BASE-TX (RJ-45) |
|---|---|
| Transmission | RTP/UDP/IP, Unicast/Multicast |
| Network | IPv4/IPv6, IGMP v2/v3, MLDv2, SNTP, DHCP, Ping, PPPoE, Syslog, SAP |
| FEC | FEC (Pro-MPEG COP#3 R2), ARQ |
Control (Encoder/Decoder)
| Interface | Power ON/OFF Key, RESET Button, LAN-GbE 10BASE-T/100BASE-TX /1000BASE-T (RJ-45) , LAN-FE 10/100BASE-TX (RJ-45) |
|---|---|
| Equipment control | Web GUI, SNMP v1/v2c, Web API |
Other features
Superimpose, Simultaneous Output of 2 x IP Streams, RS-232C Pass Through, Seamless Protection Switching , TS Pass Through
Dimensions, Weight
W210 x D300 x H44(mm) w/o Connector, Foot, Rack mount bracket.
2.6kg/5.73lb typ.
Power Source
AC100 - 240V, 50Hz /60Hz
Power Consumption
25W max.
RoHS Compliant
This product is RoHS compliant
*A : Maximum 2PES is supported only for MPEG-1 Audio Layer II and SMPTE302M. (Stereo x 2)
*B : AC adapter is not attached.
Option Table (MVE5000 (Encoder))
| Suffix | Option Name | Description | |
|---|---|---|---|
| *1 | MVE5000_OP_AAC | MPEG-2 AAC-LC(2ch x 1, 5.1ch x 1) | |
| *2 | MVE5000_OP_SLDELAY | Super Low Latency Mode(3 frames) | |
| *3 | Basic Pack MVE5000_OP_PACK_V5 |
Operation parameter +8 preset, SMPTE302M(2ch), Dolby E Pass through, Seamless Protection, Video Format(576i: 352 x 288, 480i: 352 x 240), NIT/SDT, Web GUI lightweight operating mode, Syslog | |
| *4 | MVE5000_OP_PACK_ULDELAY | Ultra Low Latency Mode(1 frame)(Including MVE5000_OP_SLDELAY) | |
| *5 | MVE5000_OP_PACK_SAP | Session Announcement Protocol(SAP) | |
| *6 | MVE5000_OP_PACK_TS-PASS | TS Pass Through | |
Option Table (MVD5000 (Decoder))
| Suffix | Option Name | Description | |
|---|---|---|---|
| *7 | MVD5000_OP_AAC | MPEG-2 AAC-LC(2ch x 1, 5.1ch x 1) | |
| *8 | MVD5000_OP_MPEG2 | MPEG-2 Decode(4:2:0) | |
| *9 | Basic Pack MVD5000_OP_PACK_V4 |
Operation parameter +8 preset, SMPTE302M(2ch), Dolby E Pass through, Web GUI lightweight operating mode, Syslog | |
| *10 | MVD5000_OP_PACK_SAP | Session Announcement Protocol(SAP) | |
| *11 | MVD5000_OP_PACK_TS-PASS | TS Pass Through | |
| *12 | MVD5000_OP_PACK_SEAMLESS | Seamless Protection | |
| *13 | MVD5000_OP_PACK_MPEG2-PS | MPEG-2 PS(IP only) | |
