HVD9130
4:2:2 10bit AVC/H.264 and MPEG-2 Decoder
HVD9130
High Performance and Reliable 10bit 4:2:2 AVC/H.264 & MPEG-2 Decoder
HVD9130 performs low latency and compressed video transmission with NTT Electronics' High End Encoder family.
In addition, it supports 4k transmission with multiple units(4 units) and can decode completely synchronized 4k contents without an external synchronizer.
HVD9130 is also available with DVB-S2 Demodulation option.
Key features
- Professional-of-the-Art-Demodulator for Broadcast and telecom Applications
- DVB-S, DVB-S2 demodulator up to 32APSK
- DVB-DSNG: 16QAM, 8PSK (TC8PSK)
- VCM and ASI Multistream mode for countermeasures for rain fade
- Low Roll off support (5%, 10%, 15%, 20%)
- Supports 10bit 4:2:2 AVC/H.264 and MPEG-2 Decoding
- Low Latency Mode (Minimum Latency 1 Frame) with HVE9110, HVE9200, HVE9210, HVE9230, XVE9310 combination (with HVE9100 : 3 Frames)
* AVC/H.264 only * Encoder optional - Compressed Audio for Super Low Latency
- Multiple video format compatibility including
1080i, 1080p, 720p, 576i, 480i
1080p50, 1080p59.94, 1080p60 - Phase Aligned Audio
- Embedded audio features up to 16ch/8PES
- Multiple audio format support up to 16ch/8PES combinations
- MPEG-1 LayerII: Stereo x 8
- MPEG-2 AAC/MPEG-4 AAC/HE-AAC (5.1 + Stereo) x 2
- Analog Audio output
- Closed Caption: CEA-608, CEA-708
- Cascade Connection with Multiple Units for 3D and 4K decoding
- Auto signal Synchronization for 3D and 4K decoding
- Ancillary Data Transmission Support : Time Code, SMPTE RDD11, SMPTE2038, ARIB TR-B22, TR-B23
- Redundant IP input x 2
- Seamless Protection Switching for IP input
- Redundant power supply
Front/Rear Panel

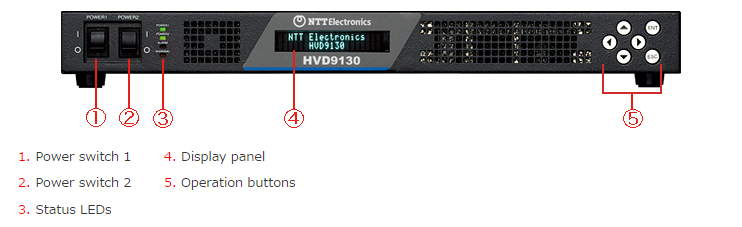

Front panel
Rear panel
Specifications
RF Demodulator
| Demodulation /Symbol Rate (Mbaud) |
DVB-S2 (EN310 210) |
QPSK, 8PSK :(32A,16A,8PSK) / 16APSK : (32A,16A) 0.256-45Mbaud (Data rates < 1Mbaud require pilots) 32APSK : (32A) 1-30Mbaud (Normal Frames only) |
|---|---|---|
| QPSK, 8PSK (16A, 8PSK) 3 - 45Mbaud 16APSK : (16A) 3 - 45Mbaud |
||
| DVB-S (EN300 421) |
QPSK, 8PSK, 16QAM : 1 - 45Mbaud | |
| QPSK, 8PSK : 1 - 45Mbaud | ||
| DVB-SNG (EN301 210) |
QPSK, 8PSK, 16QAM : 1 - 45Mbaud | |
| Coding and Modulation | Auto CCM, CCM, VCM (ASI multi stream capable) | |
| Frame Length | Normal Frame : 64kbits Short Frame : 16kbits |
|
| FEC | DVB-S2 | QPSK: 1/3, 1/4, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 |
| DVB-S (EN300 421) |
QPSK: 1/2, 2/3, 3/4, 5/6, 7/8 8PSK: 2/3, 5/6, 8/9 16QAM: 3/4, 7/8 |
|
| DVB-S (EN301 210) |
QPSK: 1/2, 2/3, 3/4, 5/6, 7/8 8PSK: 2/3, 5/6, 8/9 16QAM: 3/4, 7/8 |
|
| Pilot tones | Pilot tones detection for low data rates and LNB' switch a bad phase noise (in 8PSK or higher) | |
| Input Frequency Range | IF 950-2150MHz (L band) | |
| Roll-off Factor | DVB-S2 | 0.05, 0.10, 0.15, 0.20, 0.25, 0.35 |
| DVB-S | 0.25, 0.35 | |
| Signal Level | -65 to -45dBm@1Mbaud -60 to -35dBm@10Mbaud -53 to -28dBm@45Mbaud MAX input: Total input power -25dBm |
|
| RF input connector | Dual 75 ohm F (Female), input selectable | |
| LNB Power and Control |
DC output | Off / 13V (Vertical) / 18V (Horizontal) |
| Max Current | 300mA | |
| Band Switching | OFF/22kHz | |
Decoder Specifications
| Supported Standards |
System | ISO/IEC13818-1(MPEG-2 SYSTEM TRANSPORT STREAM) | |
|---|---|---|---|
| Video | ISO/IEC14496-10 (AVC/H.264)ISO/IEC13818-2 (MPEG-2 VIDEO) | ||
| Audio | ISO/IEC11172-3 (MPEG-1 AUDIO LayerII) ISO/IEC13818-7 (MPEG-2 AAC) LC Profile ISO/IEC14496-3 subpart 4 (MPEG-4 AAC)LC Profile ISO/IEC14496-3 Amendment 1 (MPEG-4 HE-AAC v1) ISO/IEC14496-5:2001 Amendment 24:2009 (MPEG-4 AAC-ELD) SMPTE302M-2002 |
||
| Video Specifications |
Video Format |
1080I(1920/1440/1280/960x1080)@25Hz, 29.97Hz, 30Hz: SMPTE274M 1080P(1920/1440/1280/960x1080)@23.98Hz, 24Hz: SMPTE274M 1080P(1920/1440/1280/960x1080)@29.97Hz, 30Hz: SMPTE274M 1080P(1920/1440/1280/960x1080)@50Hz, 59.94Hz, 60Hz : SMPTE274M *H.264 Only 720P(1280x720) @50Hz, 59.94Hz, 60Hz: SMPTE296M 480I(720/352x480) @29.97Hz: SMPTE125M 576I(720/352x576) @25Hz: ITU-R BT.656-4 |
|
| Profile / Level |
AVC/H.264 | Profile: Main, High, High4:2:2 (10bit) Level: 4.2 / 4.1/ 4.0 / 3.2 / 3.1 / 3.0 Entropy: CABAC/CAVLC |
|
| MPEG-2 | MP@HL, 422P@HL, MP@ML, 422P@ML | ||
| Video Output |
SMPTE424M/SMPTE292M/SMPTE259M BNC x 2lines (0.8Vp-p 75Ω) | ||
| Audio Specifications |
Audio Output |
AES/EBU (2ch + 6ch) : BNC x 1 + 3 lines (1Vp-p 75Ω) Embedded Audio: SMPTE424M, SMPTE299M, SMPTE272M ANALOG(4ch): D-SUB 15Pin (50Ω, balanced) |
|
| Decoding Channels |
AES max. 8ch, Embedded max. 16ch | ||
| Decoding Method |
MPEG-1 L2(1ch(Mono), 2ch(DualMono), 2ch(Stereo)) max. 4PES (8PES ) MPEG-2 BC(1ch(Mono), 2ch(DualMono), 2ch(Stereo)) max. 4PES (8PES ) MPEG-2 AAC-LC (1ch(1/0), 2ch(1+1), 2ch(2/0), 4ch(3/1), 4ch(2/2), 4ch(4/0), 5.1ch(3/2/1), 6ch(6/0), 6ch(6x1)) max. 2PES (4PES ) MPEG-4 AAC-LC (2ch(2/0), 5.1ch(3/2/1)) max. 2PES (4PES ) MPEG-4 HE-AACv1 (2ch(2/0), 5.1ch(3/2/1)) max. 2PES (4PES ) SMPTE302M (2, 4, 6, 8 ch) max. 4PES (8PES ) MPEG-4 AAC-ELD(2ch(2/0), 4ch(3/1), 5.1ch(3/2/1)) max. 4PES /td> | ||
| Sampling Frequency | 48kHz | ||
| Sampling Bit |
16bit (MPEG-1, MPEG-2 BC, MPEG-2/4 AAC, MPEG-4 HE-AAC), 16/20bit (SMPTE302M) | ||
| Bitrate | 128/192kbps (MPEG-1, MPEG-2 BC 1ch) 128/192/256/384 kbps (MPEG-1, MPEG-2 BC 2ch) 128/192/256/320/384 kbps (MPEG-2/4 AAC-LC 1ch, 2ch) 320/384/480/512/640 kbps (MPEG-2/4 AAC-LC 4ch, 5.1ch, 6ch) 64/96/128 kbps (MPEG-4 HE-AAC 2ch) 128/192/256 kbps (MPEG-4 HE-AAC 5.1ch) |
||
| Pass Through |
Dolby E external decoder delay absorption function (0 to 1 frame) | ||
| Ancillary Data | Data Type | TIMECODE, SMPTE334M, SMPTE2038, ATSC A/53, ATSC A/72, OP-47, ARIB TR-B22, TR-B23 | |
| TS Specifications |
Input Interface |
DVB-ASI: BNC x 1 lines (0.8Vp-p 75Ω) | |
| IP: 100Base-TX/1000Base-T (RJ-45) x 2 line(Category 5/5e/6) RTP/UDP/IP (RFC1889), FEC (Pro-MPEG COP#3 R2 method) |
|||
| Stream Type |
TS (188/204byte: No Reed-Solomon) | ||
| Max. Multiplicity |
Video: 1, Audio max. 4 + Ancillary Data max. 3 (Audio + Ancillary Total max. 5) Video: 1, Audio max. 8 + Ancillary Data max. 3 (Audio + Ancillary Total max.11) |
||
| Maximum TS Rate |
160.0000Mbps | ||
| Control Specifications |
Local Control |
FL display (20 digits x 2) + operator switches (6 buttons) | |
| Remote Control |
LAN 100Base-TX/1000Base-T (RJ-45) | ||
| Maintenance I/O |
LAN 100Base-TX/1000Base-T (RJ-45) (joint use with remote control) |
||
| Alarm Output |
Buzzer (volume adjustable), relay contact outputs (2 NO/NC contacts) | ||
| External Reset |
System reset by relay contact input (1 NO contact) | ||
| Device Monitor Control |
SNMPv1, WEB Based GUI | ||
|
Other |
TS Descramble |
BISS-1/E | |
| Dimensions (mm) |
44(H) x 432(W) x 460(D) (w/o Connector, Foot, Rack mount bracket) | ||
| Weight (typical) |
6kg (w/o option card) | ||
| Power Source |
AC100V to 240V, 50/60Hz | ||
| Power Consumption | 50W max. | ||
| Operating Environment | 0 to 45℃, 30 to 90% (condensation not allowed) | ||
| RoHS Compliant | This product is RoHS compliant | ||
