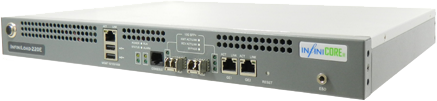

Infiniload-220E
Infiniload-220E 10G L2-L7 Network Traffic Simulator
As networks, applications and services are converging to a single IP based infrastructure. Network equipment manufacturers, data center operators, service providers and enterprises are under the pressure to deliver products with superior reliability, interoperability and performance.
Infinicore’s Infiniload™-220E Testing appliance provides an unified testing platform for customers to deliver a full range of L2-L7 test solutions for data, signaling, voice, video and security applications.
Empowered by its unique hardware architecture, Infiniload™-220E is capable of generating 10G line rate stateless traffic as well as complex stateful application traffic. A single Infiniload™ appliance is able to simulate millions of IPs and millions of connections with more than 500K TCP connection setup and tear down rate.
Dual 10G SFP+ Testing Ports
- 10GBps Line Rate Traffic Generation
- Fully support EDC and up to 10 meters DAC cable
- Proven Interoperability
- Support up to 10,000 bytes of Jumbo Frames
Dual 1G RJ-45 Testing Ports
- Up to 1GBps Line Rate Traffic Generation
- Tri-Speed 10/100/1000Mbps
- Auto Negotiation or force speed mode
- Support up to 10,000 bytes Jumbo Frames
Management Port
- Dedicated robust management interface
- Tri-Speed 10/100/1000Mbps
- Auto Negotiation
- Powerful management software
Console Port
- Standard DB-9 Serial Port
- Popular 9600 baud 8N1 setup
- Easy to use Cisco style CLI
- Robust first contact to manage your appliance
Physical Size and Weight
- Height:1.75 inches(4.4cm)
- Width:16.9 inches(43cm) without mounting kit
- Width:19 inches(48.3cm) with mounting kit
- Depth:11.8 inches(30cm)
- Weight:9.5 pounds(4.3kg)
Comprehensive Easy to Use User Interface
- Command Line Interface
- Embedded Web GUI
- Infiniload™ Test Design Environment
- Infiniload™ Test Automation Environment
Base Packages
- Stateless Traffic Generation
- Stateful Traffic Generation
- Infiniload™ Test Design Environment
- Infiniload™ Test Automation Environment
Stateless Traffic Generation
- 14.88 Mpps Per 10 Gigabit Interface
- 1.488 Mpps Per 1 Gigabit Interface
- 64 — 10,000 Bytes
IEEE802.1q — Virtual LAN
IEEE802.1QinQ — QinQ Virtual LAN
RFC826 — Address Resolution Protocol
RFC791 — Internet Protocol Version 4 (IPv4)
RFC792 — Internet Control Message Protocol Version 4
RFC768 — User Datagram Protocol (UDP)
RFC793 — Transmission Control Protocol (TCP)
RFC2460 — Internet Protocol Version 6 (IPv6)
RFC3376 — Internet Group Management Protocol (IGMP)
RFC2544 — Benchmarking Methodology for Network Interconnect Devices
Stateful Traffic Generation
- TCPBlaster Client and Server Modules
10 Gbps Throughput
Up to 500,000/sec Session Setup Rate
4M Concurrent Sessions
- HTTPBlaster Client and Server Modules
Up to 350,000/sec Session Setup Rate
4M Concurrent Sessions
Support of HTTP 1.0 & 1.1
Environmental Specifications
- 00-240V, 50-60 Hz, 250W 80 PLUS Certification
- 85W, 80 Plus Power Supply
- FCC Class A, Part 15
- Operation Temperature: 0 to 40 degree C, 32 to 104 degree F
- Storage Temperature: -25 to 70 degree C, -13 to 158 degree F
- Humidity: 5 to 95% non-condensing
