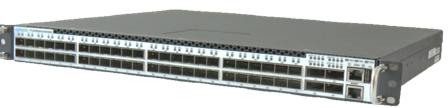

FlowDirector 640G
Network Fabric Visibility Appliance - FlowDirector-640
Infinicore™ Flow Director series product represents a new tool to help network administrator to operate, monitor and debug their networks effectively and effortlessly. Infinicore™ Flow Director allows network administrator to orchestrate network traffic through map, tap, tag, replicate and load balance their traffic across any input and output ports. Network administrators can cost effectively improve their network with advanced monitor, security and forensic functionality without risks of service disruption.
Infinicore™ Flow Director can be also used together with Infiniload™ Traffic Simulator to form large scale simulation cluster to cost effectively achieve cloud scale traffic. The sharing of test equipments across multiple teams and projects is made easy and manageable through Infinicore™ Flow Director.
SFP+ Ports with EDC support
- Support 48x 1G/2.5G/10G SFP+ and 4x 40G QSFP+ Ports
- Up to 1.28Tbps of Hardware Ensured Line Rate Packet Operations
- Support EDC and up to 10m DAC cables
- Proven Interoperability
- Support Jumbo Frames
Management Port
- Dedicated management interface
- Tri-Speed 10/100/1000Mbps
- Support Jumbo Frames
Console Port
- RJ-45 Serial Port with DB-9 to RJ-45 Serial Cable Included
- 115200 baud 8 Bit Data 1 Bit Stop
- No Parity Bit
Physical Size and Weight
- Height:1.75 inches(4.4cm)
- Width:17.25 inches(44cm) without mounting kit
- Width:19 inches(48.5cm) with mounting kit
- Depth:17.25 inches(44cm)
- Net Weight:18.7 pounds(8.5kg)
Typical Supported Flow Domains
- Virtual Wire
- Virtual Wire with Converged Tap
- Virtual Wire with Independent Tap
- Traffic Replication with Filters
- Traffic Aggregation with Filters
- Traffic Aggregation with Reverse Switching
- Traffic Aggregation and Load Balancing
- Traffic Aggregation with Replication
- L2/L3 Switch Mode
- And much more
User Interface
- Command Line Interface
- Web Based User Interface, Supporting Chrome, Firefox, Safari, IE
- HTTP/JSON based API
Wide Variety of Protocols Support
- TRILL, MPLS, VPWS, Q-in-Q, MAC-in-MAC
- IPv4, IPv6, GRE, ECMP, TCP, UDP
- IGMPv1, IGMPv2, IGMPv3, VEPA+
