metageek

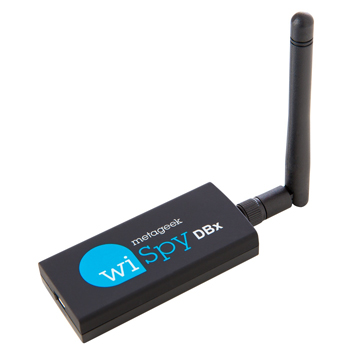

Wi-Spy (must be used with Chanalyzer Essential)
Wi-Spy is easy to carry and this portable USB spectrum analyzer can achieve high performance. The high resolution and enhanced amplitude range of this instrument allow you to clearly identify frequency interference in the 900 MHz, 2.4 GHz and 5 GHz frequency bands. While efficiently managing your wireless network, you can also save a lot of time and money.
Applies to: IT professionals, wireless network consultants, all customers who want to use spectrum analyzers to optimize wireless networks
Operating sysetm： Microsoft Window 8, 7, Vista, XP (SP3)
Display resolution： 1024 x 768 (or greater)
FRAMEWORK： Microsoft .NET 3.5 (or newer)
USB： 1.1 (minimum)
- Wi-Spy DBx
- Device Finder
| Frequency range | 2.400 to 2.495 GHz 5.150 to 5.850 GHz |
| Output amplitude range | -100 to -6.5 dBm |
| Amplitude resolution | 0.5 dBm |
| Resolution of frequency width | (2.4 GHz) 58.036 to 812.500 KHz (5 GHz) 53.571 to 750.000 KHz |
| Scanning time | (2.4 Ghz) 507 msec (low 5 Ghz) 1242 msec (mid 5 Ghz) 1587 msec (high 5 Ghz) 641 msec |
| Antenna | RP-SMA |
| Software | Chanalyzer |
| Additional accessories | Device Finder Directional Antenna (requires Chanalyzer) |
| Frequency range | 2.4 to 2.5 GHz |
| Electrical Impedance | 50 ohms |
| Horizontal beam width | 60 degrees |
| Gain | 7 dBi |
| Compatible with Wi-Spy models | Wi-Spy DBx Wi-Spy 2.4x |
| Advantages and features: | Accurately detect and record downloads No interferences during connection |
