BRIDGE
BRIDGE Technologies
The entire company group of BRIDGE Technologies has a deep background in the broadcasting, telecommunications and media industries. The advantage of the product is to take into account the two operational areas of broadcasting and telecommunications, and provide IPTV & DTV Monitor solutions for these two different network operators.
The VB series provides end-to-end signal monitoring and analysis methods for digital TV operations in the radio, television and telecommunications industries to accelerate the speed of commercial deployment. Whether it is a project based on traditional HFC networks or a project based on IP networks, VB series products are effective Reduce technical obstacles to project implementation.
The monitoring and analysis of VB series products are not only suitable for the core monitoring of technologically advanced national trunk networks, but also for monitoring complex network edge equipment. The client equipment connected to the front-end server can effectively reduce operating costs Reduce the number of maintenance personnel going out to troubleshoot. Operators can find technical problems in time or eliminate potential problems in advance through the images of the VB product series. As we all know, controlling operating costs and reducing customer churn rates are key factors for the success of digital TV operations.
Through the alarm and display functions provided by the VB series, operators can grasp real-time operating conditions and detailed historical data, and use these data to plan new service projects in the future.

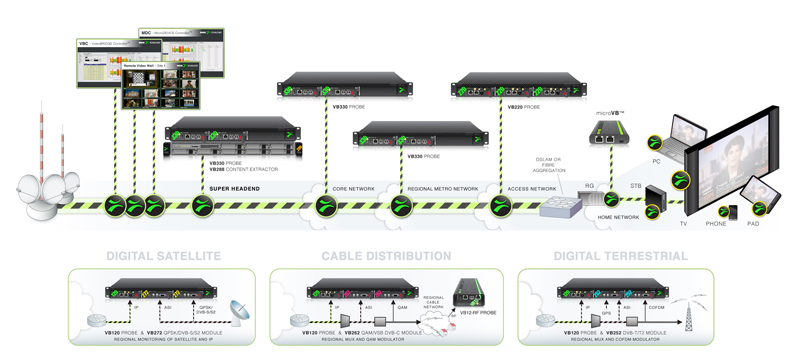

VB series products provide dedicated solutions for monitoring and analysis of front-end, core network, network edge to user end. VB IP-PROBES product design is based on actual operation from the beginning, so all products use the most robust carrier-grade hardware platform.
Digital TV signal and quality monitoring solutions
Traditional analog digital TV technology has reached maturity and stability after half a century. Until today, people still use the technology invented 50 years ago to operate. A practical example is the currently widely used PAL / NTSC / SECAM TV And analog TV transmitters. However, as digital TV technology becomes more and more popular, only by establishing an effective monitoring system can digital TV bring users the same quality and analogous enjoyment as analog signals and eliminate defects such as mosaics.
Both TV users and TV advertisers take it for granted that TV operators should provide near-perfect TV signals. A 10-second signal interruption during a prime time is recognized by the industry as a serious technical error. When operators begin to promote digital TV, regardless of whether the signal is transmitted through cable digital TV (QAM) or terrestrial digital TV (DTT) or optical fiber, users naturally expect the quality and stability of digital TV signals to be equal to or higher than analog TV. In the eyes of users, even a slight drop in quality will affect their viewing experience, thereby increasing the potential churn rate.
If the digital TV signal quality does not reach this level, regardless of technical reasons or human error, users will feel that the stability of digital TV is problematic. Operators must invest a lot of time and cost to restore user confidence. Negative news reports and users' lack of confidence in digital TV will hinder the advancement of digital TV. To avoid this vicious cycle, operators must proactively monitor signal quality, try to find problems before they occur, and resolve problems in a timely manner. In the operation of the triple play, operators can use BRIDGE Technologies' VB220 and VB120 IP-PROBE probe systems to monitor the status of multicast TV signals at any time with low investment.
Bridge Technologies provides the world's most complete digital TV signal monitoring and measurement products
PocketProbe contains the same OTT engine in the award-winning VB1, VB2 and 10G VB3 series of Probe, you can easily verify the HTTP change bit rate for streaming analysis in your hands.
Whether microVB is viewed from the case size or the function of real-time monitoring of the user's home, microVB is a technological breakthrough. This small and exquisite device is installed at the user end and can monitor the details of digital TV packet transmission, providing an end-to-end full monitoring method for the transmission of broadcast-grade media signals over IP networks.
VB288 can decode thumbnails of 100 sets of MPEG2 or MPEG programs and extract the metadata of these programs. The main purpose of VB288 is to find errors in the descrambling and decoding process in the front-end equipment in time and send out an alarm, and monitor the signal at a clear distance through a standard browser.
VB120 is a real-time monitoring platform that includes various applications for monitoring digital video signals transmitted by IP networks. This is a network monitoring tool designed specifically for broadcast needs. It can be used for pure IPTV networks and is also suitable for monitoring cable. IP trunk transmission in networks and wireless networks.
VB220 is a high-end monitoring solution. A 1RU rack can monitor 540 programs at the same time. VB220 is designed for long-term operation and deployment. The product meets the carrier-grade standard. Its intelligently designed backplane enables the inter-module Communicating with each other is the most cost-effective ultra-long-term operation monitoring tool in the industry.
VB330 Probe is a high-level IPTV monitoring and testing tool, designed for real-time IPTV trunk network, equipped with two 10G Ethernet interfaces, which can monitor thousands of IPTV data streams simultaneously
VB242 is a high-end monitoring solution. The input monitoring module for DVB-ASI signals, VB242 can be used in the 1U rack of VB120 or VB220, and two VB242 modules can be built in each 1U rack.
The input monitoring of DVB-T / T2, VB252 includes the monitoring of the COFDM signal input in the DVB-T network. Each rack can be equipped with a VB120 or a VB220 IP-PROBE probe master card, and the master card controls 1 to 2 VB252 COFDM input card.
DVB-C, VB262 的QAM/VSB雙輸入方案可以同時監測有線網路裏的QAM信號和8/16VSB 無線網路裏的DTT信號。每個機架可以配備一個VB120或一個VB220 IP-PROBE 主卡，由主卡控制1到2個VB262 射頻輸入卡。
DVB-S / S2-VB272 provides monitoring and analysis of QPSK / 8PSK signals. Each rack can be equipped with a VB120 or a VB220 IP-PROBE control card, and the control card controls 1 to 2 VB272 QPSK / 8PSK input cards.
VB243 is an automatic switching system for ASI intelligent road preparation, with two signal paths that can be switched through autonomous operation and in-depth analysis. The complete VB243 system consists of VB120 controller module, VB242 monitoring module, and VB243 switching system module Can be installed on a RU rack.
VB273 DVB-S / S2 satellite signal intelligent main and standby automatic switching system. The complete VB273 system is composed of VB120 controller module, VB272 monitoring module and VB273 switching module. Used for IF or L-Band signal and monitoring standards (ETSI TR 101 290).
NOMAD is a device that supports OTT, IP, DVB signal monitoring, and its small size and easy portability are its major features and advantages. The input interface supports DVB-C / T / T2 / S / S2, OTT (HLS, M-DASH,), IP, RF, ASI, and can support WIFI.
