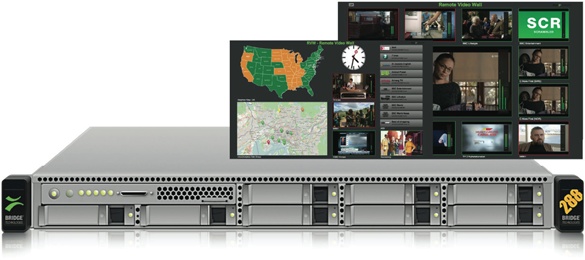

VB288 OBJECTIVE QoE CONTENT EXTRACTOR

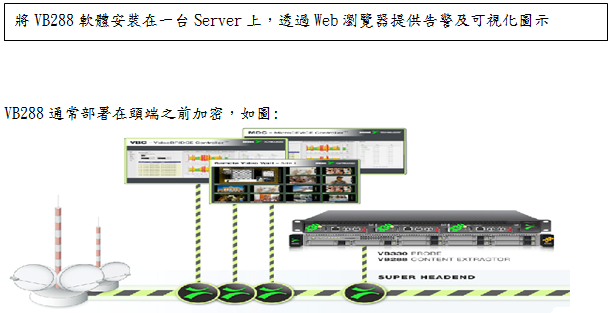

VB288 can monitor the stream of MPEG-2, H.264 / MPEG-4, H.265 and HEVC through objective video and audio, and provides a monitoring method that can use remote video capabilities through a web browser, providing a complete vision It can be used to decode thumbnails of 100 sets of MPEG2 or MPEG4 programs and extract the source materials of these programs. The main purpose of VB288 is to find errors in the decoding process of the head-end device in time and issue an alarm, and send signals through the browser For remote monitoring at a glance, it is generally installed before the front-end scrambler and sends the scrambled state of the collected code stream to the VBC server.

Features include

• RVW - Remote Video Wall support for 4 screens with up to 16 slots (channels or widgets) on each screen
• Condensed mosaic thumbnail view of all services monitored
• IP multicast support and Over-the-top/Adaptive-Bitrate-Streaming support
• Thumbnail extraction and content alarming on up to 100 services per VB288 installation:
  - Scrambling Expected alarming
  - Scrambling Not Expected alarming
  - Freeze-frame Detected alarming
  - Color freeze Detected alarming
  - Audio silence detected alarming
  - No data on video PID detected alarming
  - Transport Stream Continuity Counter errors detected
  - No Transport Stream sync alarming
  - Wrong DAR alarming
  - Wrong PAR alarming
  - Missing custom video PID
• Continuous monitoring of audio level for audio level compliance monitoring
• Loudness support and LUFS metering in RVW acording to ITU 1770, ATSC A/85 and EBU R128
• Display of audio level bars and other meta data in RVW view
• Full VBC integration with visual service alarms, live alarms and live user configurable Graphics
• Multicast protocol formats: nTS/UDP, nTS/RTP/UDP n=[1:7] (ETSI TS 102 034)
• OTT/ABR protocol formats: Apple HLS and Adobe HDS
• Custom video PID definition for non-PSI streams
• Visual alarm icons for standard errors in thumbnail views and RVW views
• Easy configuration process for changing which services are shown on video wall
• Searchable alarm lists
• SNMP TRAP alarm forwarding to up to 3 unique destinations
• NTP Time synchronization support
• XML-based configuration storage and retrieval
• Software-based solution running on standard server hardware
• Web-based client access through CHROME web browser
• Dual GigE interface support for separate DATA and MANAGEMENT ports
• Easy installation through kickstarter image
