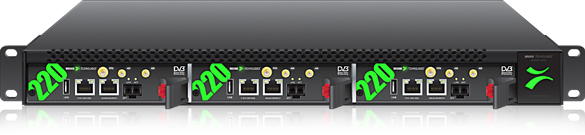

VB220 PROBE

It is a rack-mounted high-end digital TV broadcast monitoring and testing tool. A single rack can monitor 780 programs at the same time. Designed for use in IPTV trunk network for long-term operation monitoring. Access, support fiber and Giga Ethernet interface input, DVB-T, DVB-C, DVB-S / S2 demodulation module. VB220 supports network protocols such as IGMP, RTP, and VLAN.

Each module of VB220 can independently analyze ETR101290 and decode various encoding formats (MPEG2 / 4, MFRTP), and measure the Loss and Jitter of the network transmission, set the alarm mechanism and stream recording, VB220 has a unique FSM , Sustainable monitoring of QOE of Middleware and Network services.

VB220's patented MediaWindows function allows users to easily query the monitoring status of the past time and find out whether there is an error condition such as no-sync, packet loss, packet jitter…

VB220 supports SNMP or direct control and reading through HTTP, without the need to install additional software, it can also output XML reports.
