DS2831

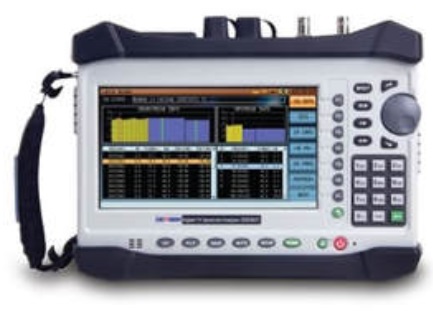

DS2831 Digital TV Spectrum Analyzer

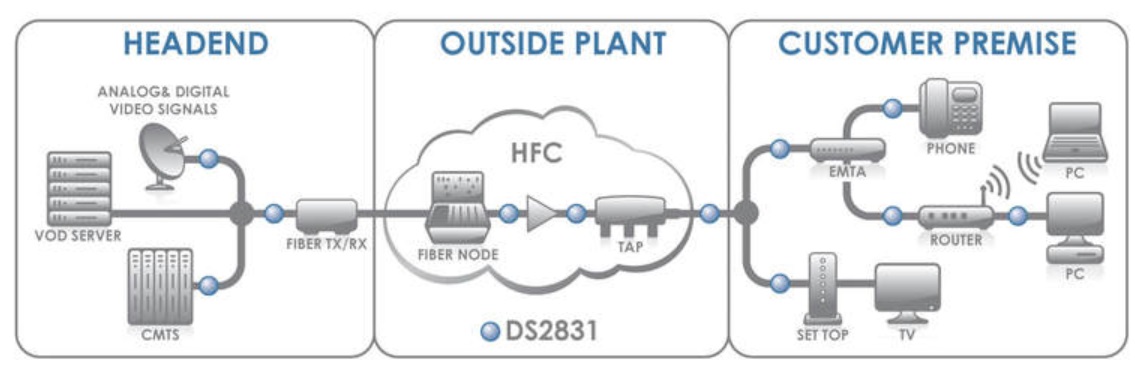

Whether you’re an installer, a contractor, a service engineer or a headend engineer, the DS2831’s broad suite of customizable tools makes it the ultimate test instrument for validating OFDM/DOCSIS 3.1 networks. Tie it all together with the Deviser EDGE platform for managing assets, firmware upgrades, channel plans, and measurement results.
- Fast Spectrum Analyzer: detect and troubleshoot ingress with exceptional sensitivity of -60dBmV @ 300KHz RBW.

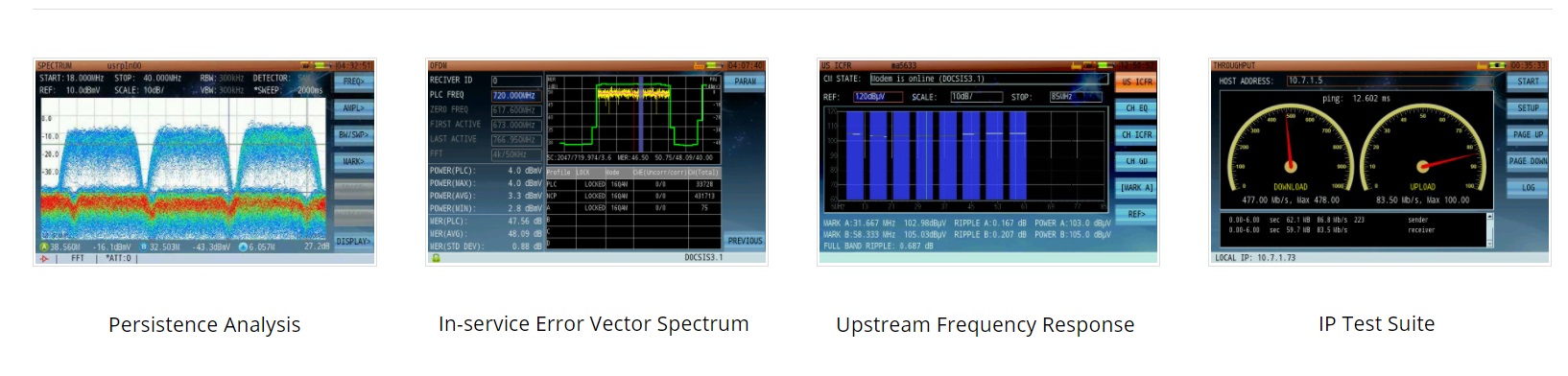

- Color-Coded Persistence Test: find transient noise hiding under upstream bursty signaling, without disrupting service
- MER Measurement: up to 47 dB MER with 48 hours of statistical recording with 1 second resolution
- Analog TV and SC-QAM: troubleshoot typical analog interference and distortions as well as SC-QAM performance
- Time-Domain EVS Measurements: uncover interference from LTE signals under downstream QAM carriers with no service interruptions
- Characterize OFDM carrier performance and DOCSIS 3.1 cable modem performance
- 7” Capacitive Touchscreen: with excellent touch response and 7 hours of operating time
Key Features
| Real spectrum analyzer performance from 4 – 1.22 GHz (optional extension to 2.15 GHz) | Forward/Reverse passive non-intrusive sweep (does not require US sweep receivers for up to 51.2 MHz of high resolution sweep response in the Upstream path) |
| Downstream & Upstream Spectrum Analysis cover DOCSIS 3.1 frequency bands | Integrated Upstream Signal Generator (J.83A/B-FEC) |
| Spectrum Persistence Analysis: any frequency band, max span 206 MHz | Transport stream analysis with TR 101 290 Monitoring, auto-generated program lists, and program-channel mapping |
| In-service Error Vector Spectrum identifies interference under OFDM and SC-QAM carriers with no interruptions in service | Gated Measurements: in-service CCN, CSO, CTB, CLDI, DG/DP, DOM, ICR tests |
| ITU-T J 83 Annex A/B/C/D, QAM; auto-detects channel parameters | Optical features such as OPM, VFL, and an optional Fiberscope |
| Full DOCSIS3.1 capabilities with downstream OFDM and 32x SC-QAM bonded carriers, and upstream OFDM transmit feature with 8x SC-QAM bonded carriers | Highly responsive capacitive touchscreen |
| Auto Test | Deviser EDGE asset and test data management software |
