VB262 CABLE QAM ITU.T J-83 ANNEX A/B/C RF INPUT

The VB262 DUAL QAM/8VSB input option offers monitoring of cable TV signals as found in ITU-T J.83 Annex A/B/C QAM networks and DTT signals found in 8VSB networks. A chassis can be equipped with a VB120 or VB220 PROBE controller that has one or two VB262 RF input cards under its control.

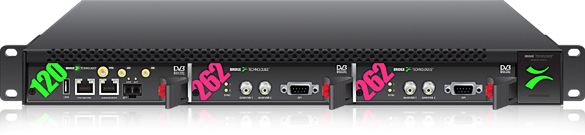

Figure - The 1RU Enhanced Chassis populated with one VB120 controller module and two VB262 QAM/8VSB input modules.

A complete configuration with a fully licensed VB120 provides real-time monitoring and alarming for four QAM or VSB RF inputs, 50 IP MPTS/SPTS multicasts, upgradeable in steps of 10 from an initial 10 streams, and a ASI TS input and output.

ETSI TR 101 290 analysis is performed in parallel for the QAM/8VSB inputs, the ASI input and the IP input. If the VB220 is used as master card the IP monitoring capacity is increased to impressive 260 MPTS/SPTS multicasts in addition to the RF inputs.

The combined unit is ideal for hybrid networks where IP is used as a carrier from head-end to the regional edge multiplexer/ modulator/ transmitter. The built-in round-robin functionality allows sequential analysis of multiple QAM or VSB multiplexes, making it possible to monitor the total broadcast contents of a cable transmission system using a single VB262.

Each RF input port can be programmed to scan through 50 individual frequencies in a round-robin fashion.

TECHNICAL FEATURES

• Frequency range: 51-1003 MHz
• Dual input digital cable receiver
• Fully independent inputs
• Fully compliant with EN 300 429 (DVB-C)
• Fully compliant with ITU-T J.83 Annex A/B/C
• QAM modes: 16,32,64,128,256
• Constellation Diagram
• Wide symbol rate range of 0.87 to 7.0 Mbaud
• User selectable IF filter (6/7/8 MHz)
• Excellent neighbour channel isolation
• Dual 75 ohm F-connector inputs
• Pre-FEC BER, Post-FEC BER, SNR, MER, Level
• CFO, SRO

VB262 SPECIFICATIONS

• Symbol rate: 0.87-7.0 Msym/s
• RF power level: -60 dBm to-10 dBm (+/-1.5 dB)
• SNR (*): < 42 dB (+/-2 dB)
• MER: < 42 dB (+/-2 dB)
• BER pre-FEC (*) > 1.0E-8
• BER post-FEC (*) > 1.0E-9
• Input sensitivity: -60 dBm
• (*) 6.9MS,BER2x10e-4,QAM256
• Minimum signal strength for highest MER readings: -45 dBm

VB262 VSB FEATURES INCLUDE

• Dual input digital terrestrial receiver
• Fully independent inputs
• VSB modes: 8VSB
