Standard Features:

 Combined DVB-ASI Output Board.
 PCI 2.2, 32 bit, 33/66MHz 3.3V.
 Bus Master DMA, Scatter /Gather Interface Protocol.
 Windows XP, Vista, Windows 7 ( 64bit ) Drivers + SDK & Linux Drivers.
 Accompanied by DVSStation3 Alitronika's Application Software.
 Supports DVB According to Standard A1010 Rev1 and EN50083.
 Supports 188 & 204 byte or Arbitrary Packet Sizes.
Output
 Programmable Output Bit Rate.
 Two DVB-ASI outputs ( BNC ).
 Can output True and Inverted signals.
 Supports Burst Mode.
 Null packet insertion by Hardware.
 PCR, continuity counter correction.
 Packet time and date correction.
 Error insertion.

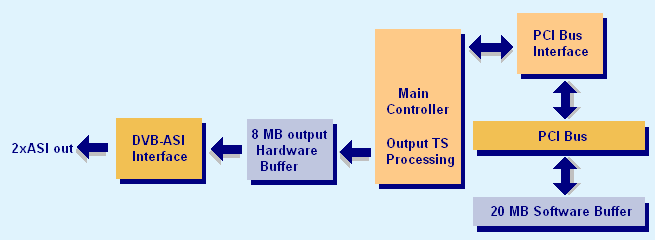

Block Diagram:

Application:

Targeted for Digital Video Professionals, Sophisticated End Users and OEMs
the AT30LPPCI is an ideal solution for a number of applications such as:
Development Tools.
DVB to IP Gateway.
Universal Interface for Digital Video or MPEG-II Transport Stream Playing and Processing.
Video on Demand Server.
Transport Stream Test Generator.
High Speed Serial Data Link.
Software Based MPEGII Encoders and Decoders.

Specification:

On Board Buffer: 8 Mbytes
External DVB-ASI Connector: 75 Ohms BNC.
Output Signal level: 1.0Vp-p nominal.
DVB-ASI Input/Output Bit Rate: 0 to 214 Mbit/s.
Bit Rate Stability:
                               Standard: +/- 25ppm.
                               Maximum: +/- 1ppm.
DVB-ASI Output Clock: 270 MHz.
Size WxL: 60mmx120mm.

Application Software:

DVSStation3/4/IP: Alitronika devices are supported by DVSStation3/DVSStation4 or DVSStationIP, Alitronika's FREE Transport Stream Player, Recorder, Analyser and converter application software. Please refer to the specification and User Manual of these applications for more information. Even better please download them from our website and try them out. They works in DEMO mode without any Alitronika devices.

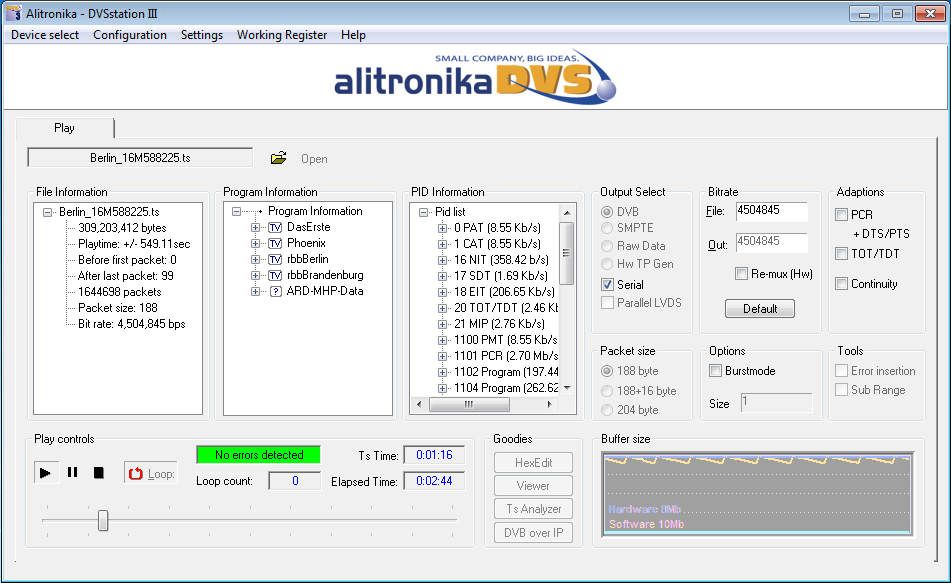

Play Screen

The application software provides the user with many functions & features such as :

Bit, Byte & Packet error insertion

TOT & TDT selection

PlayBack in loops, sub-loops.......

Hardware Working Regiters are accessable for monitoring

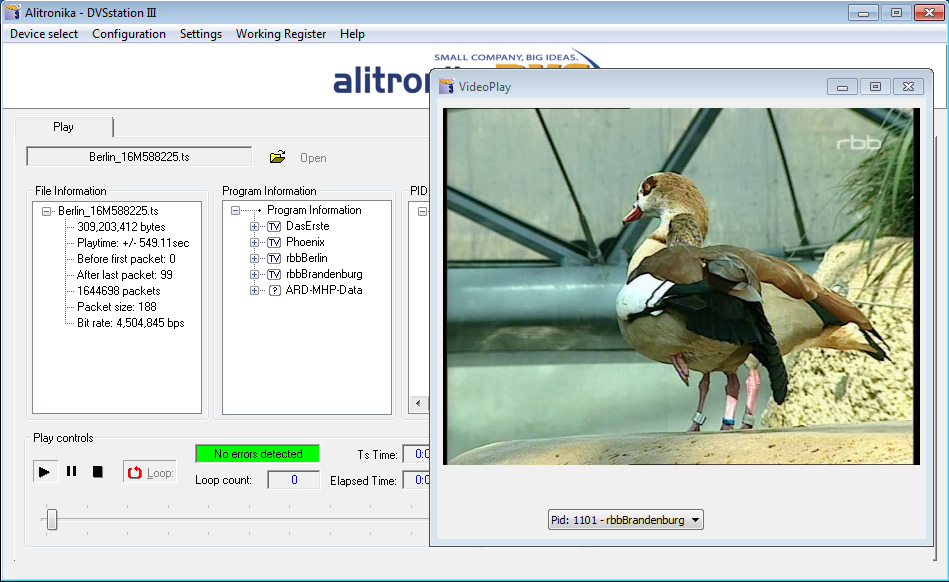

Among the "Goodies" are a Video Viewer

Hex Editor

A DVB to IP Player/Converter

As well as the Integrated Quick TS Analyzer, TSReadersupport these devices.
