Standard Features:

QPSK Modulator and UHF Up-converter, supports DVB-S2 & DVB-S.
PCI 2.2, 32 bit, 33/66MHz 3.3V.
Bus Master DMA, Scatter /Gather Interface Protocol.
Windows XP, Vista, Windows 7 ( 64bit ) Drivers + SDK & Linux Drivers.
Accompanied by DVSStation4 Alitronika's Application Software.
Supports DVB According to Standard A1010 Rev1 and EN50083.
Modulation of Transport Stream files from Harddisk.
All modulation processes are carried out by the hardware so that there is no load on the PC processor,
   So there is no need for an expensive high performance PC.
Supports Burst or continuous modes, 188 and 204 packet sizes.

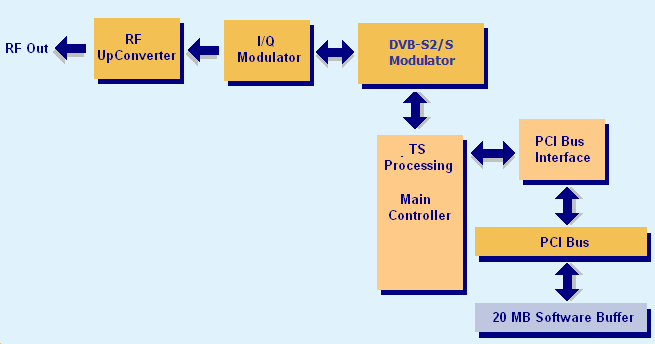

Block Diagram:

Application:

Targeted for Digital Video Professionals, Sophisticated End Users and OEMs
the AT290PCI is an ideal solution for a number of applications such as:
Development Tools for DVB-S2/S Receiver R&D.
IP to DVB Gateway.
DVB-S2/S Transport Stream Generation.
Stand alone QPSK signal generator for Test & Validation.
Demonstration and Trade Shows.
DVB-S2/S output for OEM product.

Specification:

On Board Buffer:8 Mbytes.
RF Connector:75 Ohms F-Type.
RF Output Frequency Range: 950MHz to 2150MHz.
RF Output Power over bandwidth:-10dBm to -45dBm, adjustable in 0.5dB steps.
DVB modes: DVB-S and DVB-S2.
Spectral modes: inverted and non-inverted.
DVB-S Mode:
Alpha rolloff: 0.35.
Modulation Modes: QPSK.
FEC Code Rates: 1/2, 2/3, 3/4, 5/6 and 7/8.
Symbol rate: up to 45 MSymbols/s.
Bitrate: up to 72.574 MBit/s.
DVB-S2 & DVB-S2X Modes:
Alpha rolloff: 0.20, 0.25 and 0.35.
Modulation Modes: QPSK, 8SPK, 16APSK and 32APSK.
FEC Code Rates: 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9 and 9/10.
Symbol rate: up to 45 MSymbols/s.
Bitrate: up to 200.385 MBit/s.
Size WxL: 107mmx175mm.

Application Software:

DVSStation3/4/IP: Alitronika devices are supported by DVSStation3/DVSStation4 or DVSStationIP, Alitronika's FREE Transport Stream Player, Recorder, Analyser and converter application software. Please refer to the specification and User Manual of these applications for more information. Even better please download them from our website and try them out. They works in DEMO mode without any Alitronika devices.

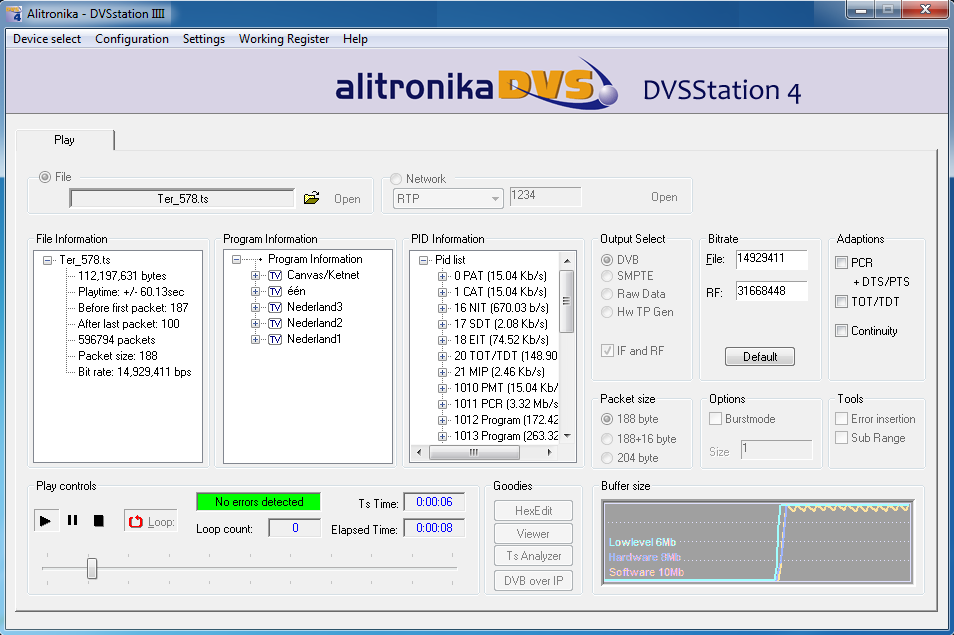

Play Screen=> In normal operating conditions

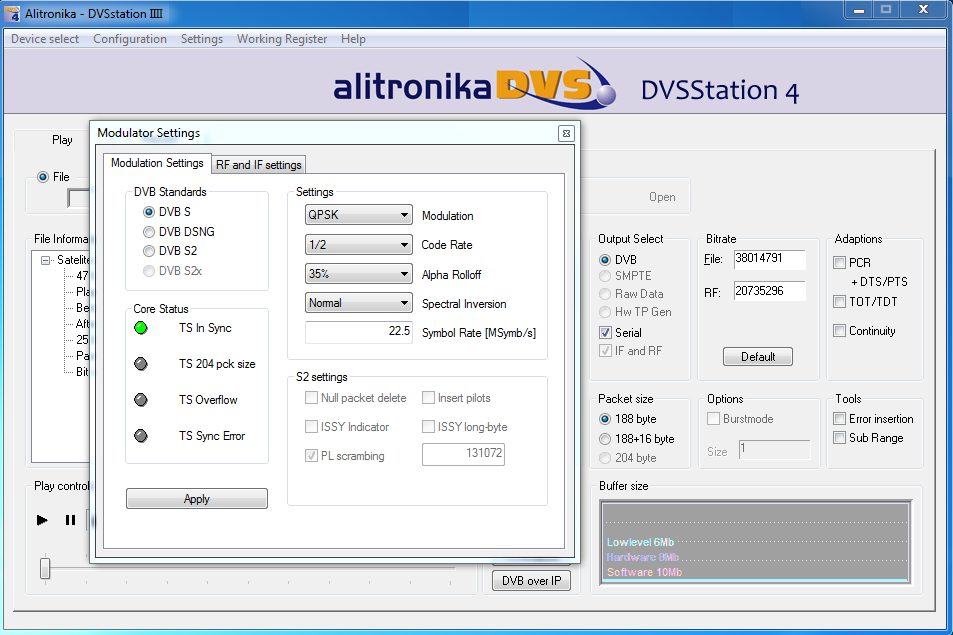

DVB-S Settings

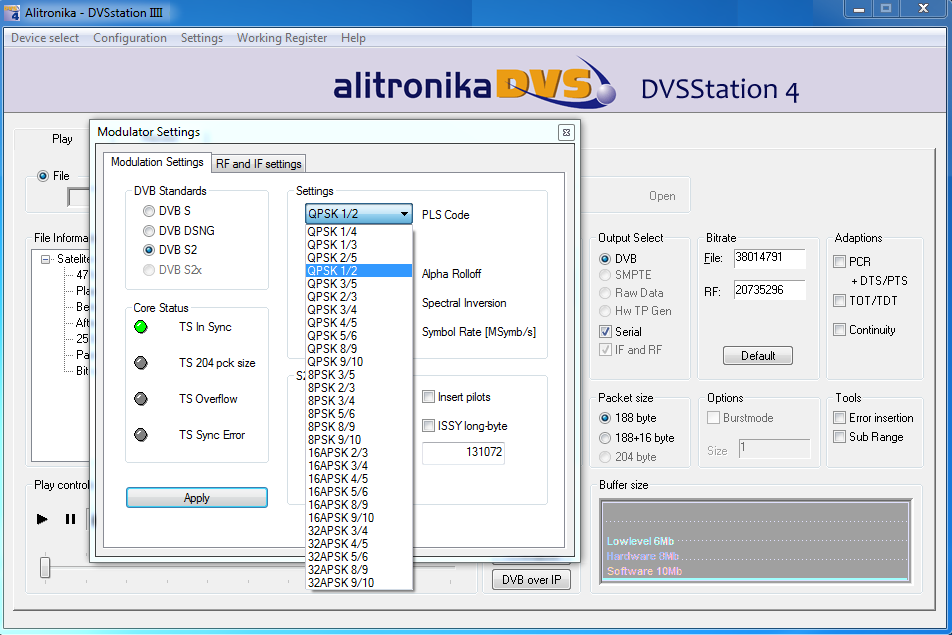

DVB-S2 PLS Codes

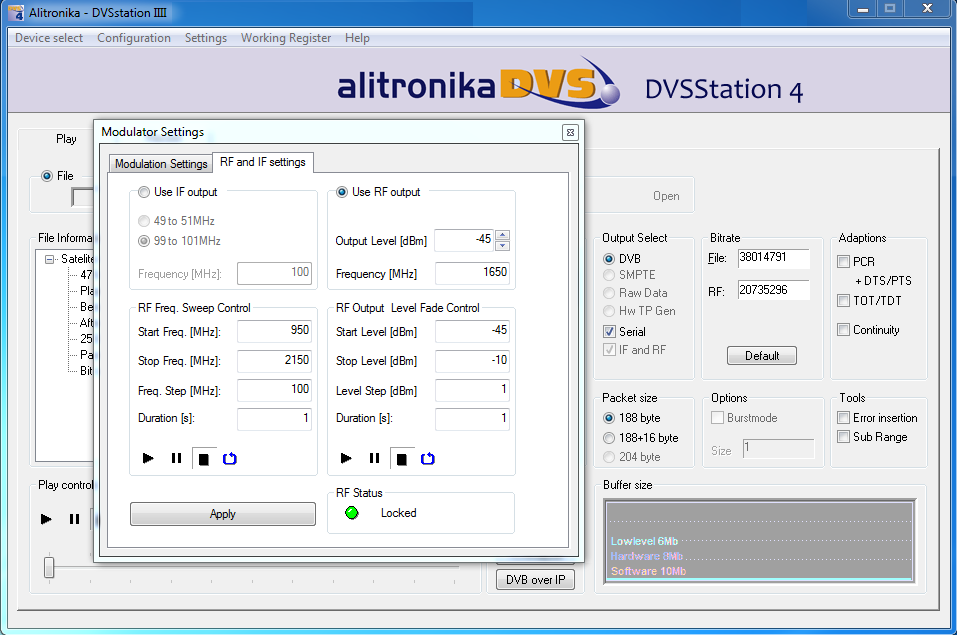

Rf Settings

The application software provides the user with many functions & features such as :

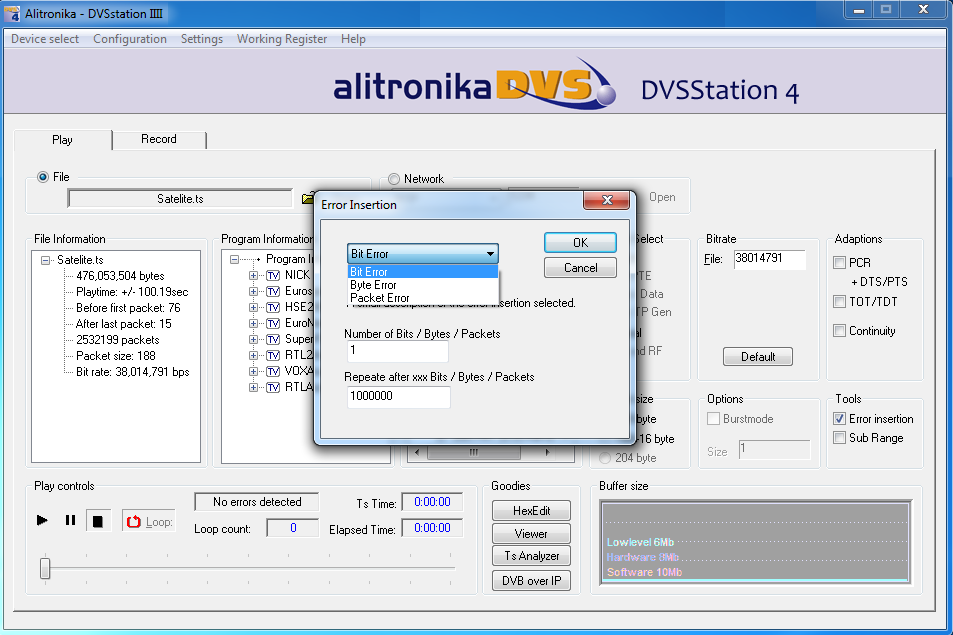

Bit, Byte & Packet error insertion

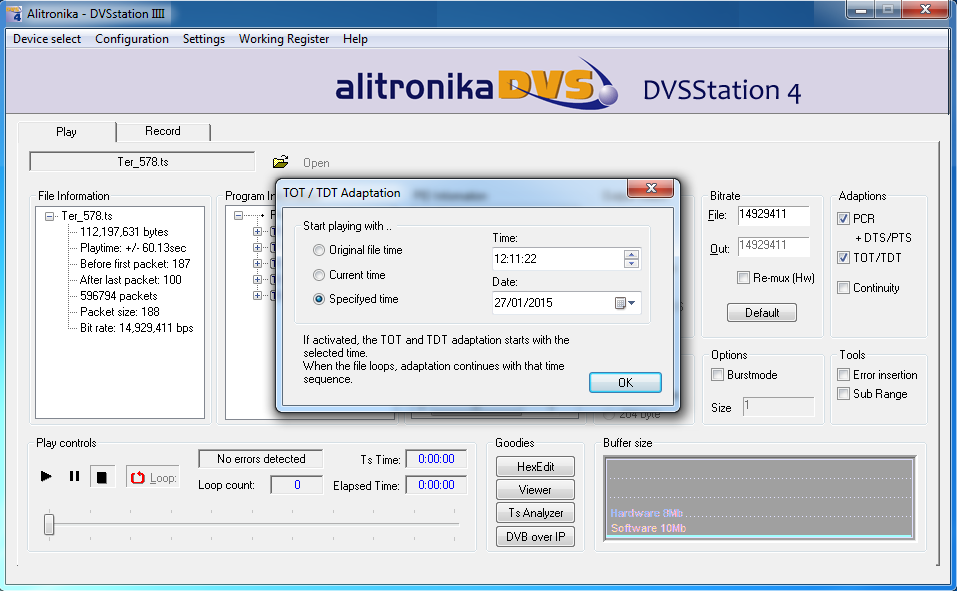

TOT & TDT selection

PlayBack in loops, sub-loops.......

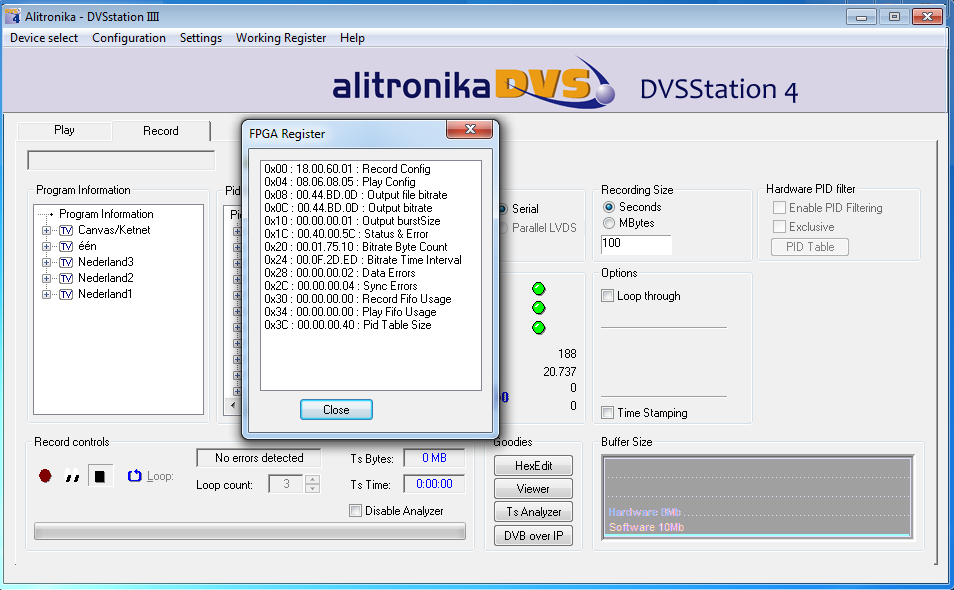

Hardware Working Regiters are accessable for monitoring

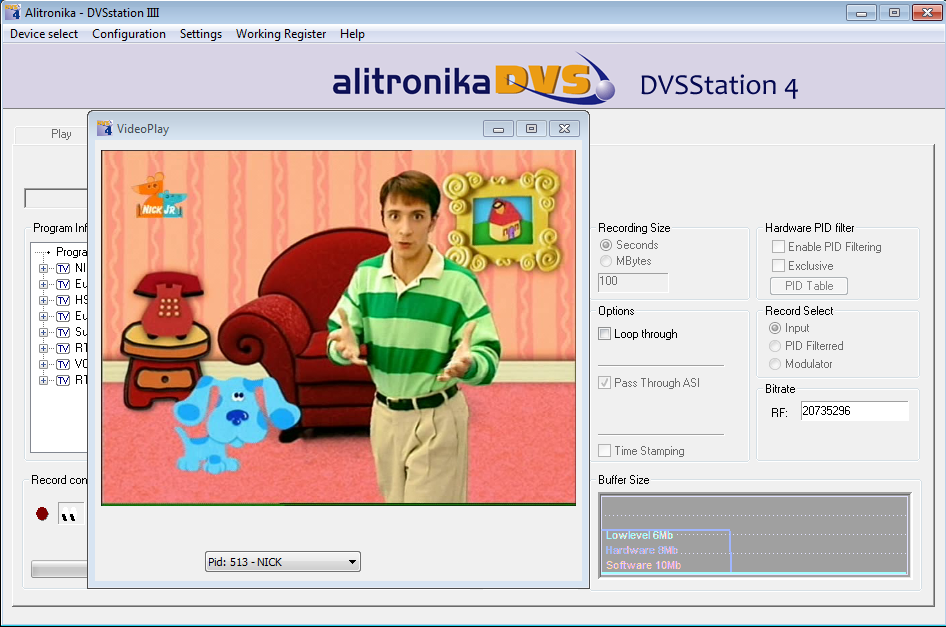

Among the "Goodies" are a Video Viewer

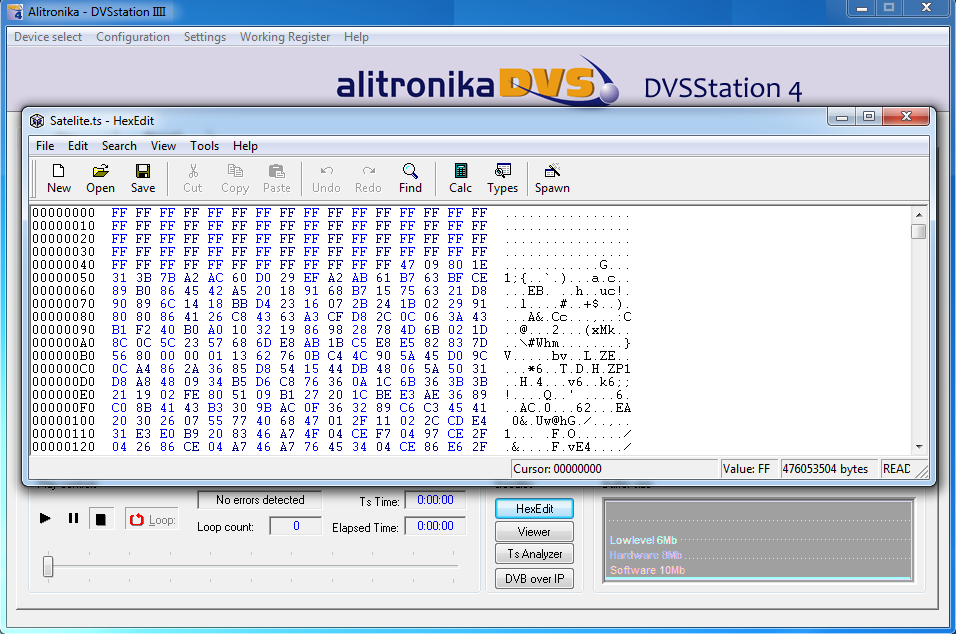

Hex Editor

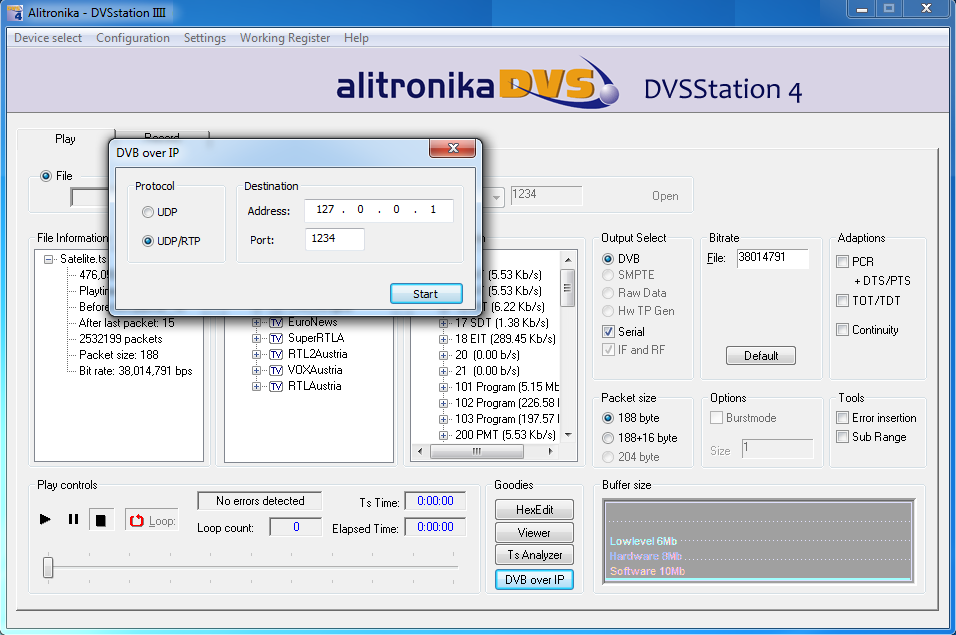

A DVB to IP Player/Converter

As well as the Integrated Quick TS Analyzer, TSReader support these devices.
