IPTV Combine 4X 是一個高集成IPTV伺服器,可應用酒店, 醫院, 教育機構, 電信商, IPTV實驗室等,本產品單一主機內建VOD Server, Middleware, DVB to IP Gateway , billing等,可同時處理高達500個IPSTB 的計費功能, DVB to IP 可接收解碼4個 DVB-S/S2,DVB-T/C 的節目,1台IPTV Combine 4x 最多可同時處理50個節目流,並具1TB硬碟儲存空間.

IPTV_Combine_4x

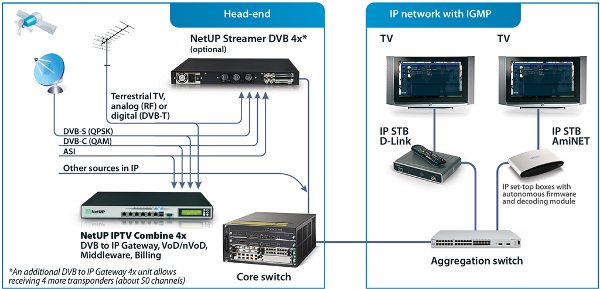

schema_combine
特點:
  • 高集成性: IPTV Combine 4X 的所有軟體均由NETUP開發,整合在單一主機時無相容性問題,出貨時所有軟硬體皆已安裝完成,客戶可快速使用無需再煩心安裝及整合等問題.
  • IPTV Combine 4X 可同時接收及解碼4個DVB-S/S2 的訊號,相當於50個電視節目.
  • IPTV Combine 4X 顯示介面採用C++開發,當使用者透過IPSTB進行選單觀看及選擇時,其運行速度遠較使用Javascript/HTML 開發之介面快速.
IPTV Combine 4x Specification
Services:
  • VoD + nVoD server (Video on Demand + near Video on Demand)
  • DVB to IP Gateway: 4 DVB-S/DVB-S2 inputs + 4 CI solts
  • Middleware, interactive user's interface for IP set-top boxes
  • Electronic Program Guide (EPG)
  • IP STB firmware update server, DHCP, DNS, IGMP querier, IP router
  • optional: interface to hotel property management systems
Physical & Power
  • standard rack-mount case for 19" telecom rack
  • height: 1U
  • dimensions (WHD): 430 x 44 x 411 mm
  • weight: 11.5 kg
  • power supply: 90 ~ 264 Volts, 47 ~ 63 Hz
Disk Drives
  • flash card for reliable storage of OS and configuration files
  • 1 TB HDD for multimedia content and database (corresponds to over 400 full-length movies in MPEG-2 4 Mb/s
Inputs/Outputs
  • 6 x Gigabit Ethernet 10/100/1000 Mb/s
  • 4 x CI solts
  • 4 x DVB-S/DVB-S2
  • or 4 sx DVB-T/DVB-C
  • or 4 x inputs for modulated TV signal (RF to IP) with real-time encoding into MPEG-2
  • or 4 x inputs for analog video signal (A/V, RCA) with real-time encoding into MPEG-2
Control & Administration
  • front panel LCD for initial configuration and system summary information
  • administration Web interface
  • administration Java interface
  • ssh console, Linux 2.6.x OS
  • RS-232 console
Performance
  • over 50 simultaneous VoD streams (4 Mb/s per stream). Total VoD bandwidth - 200 Mb/s
  • satellite TV channels can be received from 4 different transponders at a total bandwidth of 240 Mb/s
Media Content Format
  • VoD files formats: MPEG-2, H.264 (MPEG-4 AVC) transport stream
  • recommended bitrate: 4 Mb/s and more
  • definition: SD, HD (720x576 or higher)
IPTV Combine 4x Hotel 是針對飯店業者提供完整的IPTV 頭端系統,其內容包括
  • IPTV Middleare/Billing
  • DVB to IP gateway
  • VoD/nVoD server
  • Interface to hotel property management systems (Hotel PMS)
特點
  • Welcome message on guest check-in
  • Hotel information page
  • Auto posting TV services from the IPTV system to the PMS
  • Express checkout
  • messages from reception
  • Room status change via TV(dirty/clean) for the housekeeping service.
支援飯店PMS系統
MICROS-Fidelio hotel property management systems based on FIAS protocol:
  • Fidelio Suite 6
  • Fidelio Suite 7
  • Fidelio Suite 8
  • OPERA

以下畫面為IPTV Combine 4x Hotel的STB 訊息畫面,抓取自AmiNET 130

IPTV_Combine_4x

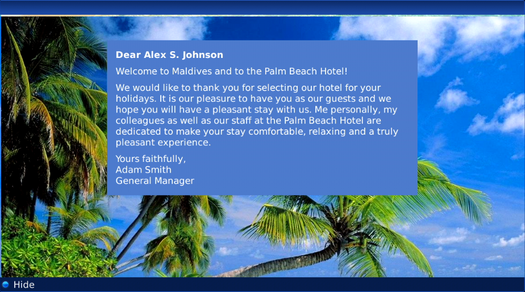

歡迎畫面

Hotel_welcome

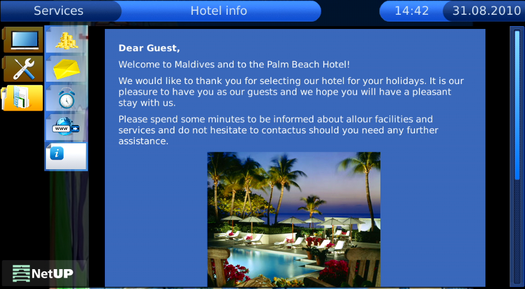

飯店簡介

Hotel_ServicesInfo

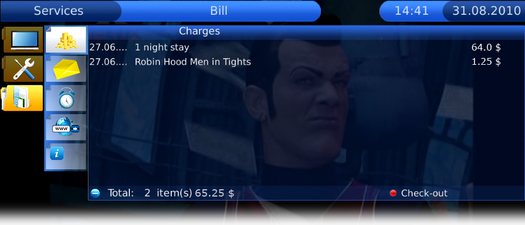

付費訊息&快速退房

Hotel_ServicesBill

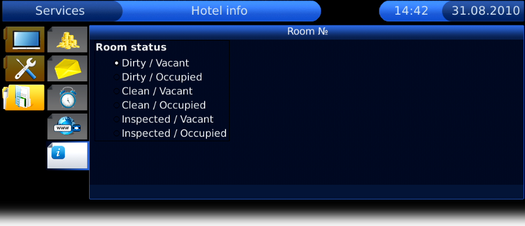

改變房間環境維護

Hotel_RoomStatus
