AMM400 Generator

AMM400 is the T-DMB/DAB/DAB+ Signal Generator RF integrated.

AMM400 includes T-DMB Video/Audio Service(H.264 + BSAC), DAB/DAB+ Service (Audio + DATA), Ensemble Multiplexer, OFDM Modulator and RF Upconvertor.

A user can use it to develop a DAB/DAB+/DMB receiver and use for QC and Mass Production in easy and convenient way.

General Characteristics

• All-in-One integrated T-DMB/DAB/DAB+ Signal Generator (DMB Service + DAB/DAB+ Service + Ensemble MUX + OFDM Modulator + RF Upconvertor)
• Extend a channel up to 5 per an unit
• Support Remote Control RS232C, GPIB (Optional)
• Support user friendly UI based on Windows
• Flexible Size of storage of video, audio and data (Basic 160GB~1TB)
• Support Reconfiguration
• Real-time Live Mux. (Ethernet, ASI)

Ensemble Multiplexing

• Support Enhanced Packet Mode (EN 300 401 v.1.4.1)
• No limit of No. of Service and Service Component
• RS/CI Encoder integrated (Support RS/CI 204byte Video, 188byte Video)
• Support big size of Ensemble on real-time (Default : 1.152Mbps, FEC=1/2, Changeable by Protection Level)
• Available to extend specification such as BiFS
• Support National FIG Information (Korea, China, Germany, France, Italy, Netherlands, United Kingdom, Russian Federation)
• Support Programmed Schedule Simulation
• Support Primary/Secondary Service, Primary/Secondary Label
• ETI recording for saving ETI signal as file type
• ETI File Generation
• ETI Signal Input (Optional)
• ETI Signal RF Output (Optional)

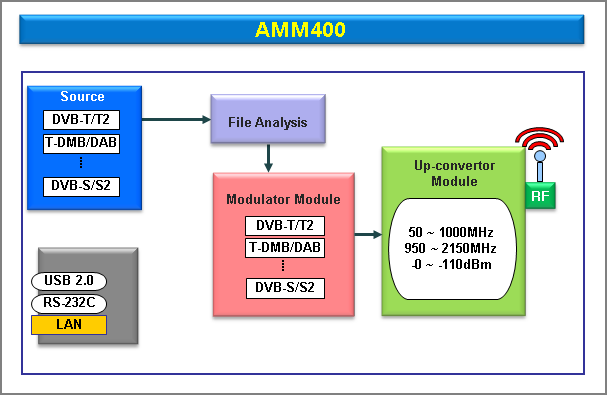

System Diagram
