MAT-7710
MAT-7710
75 Ohm 1 GHz Manual Step Attenuators

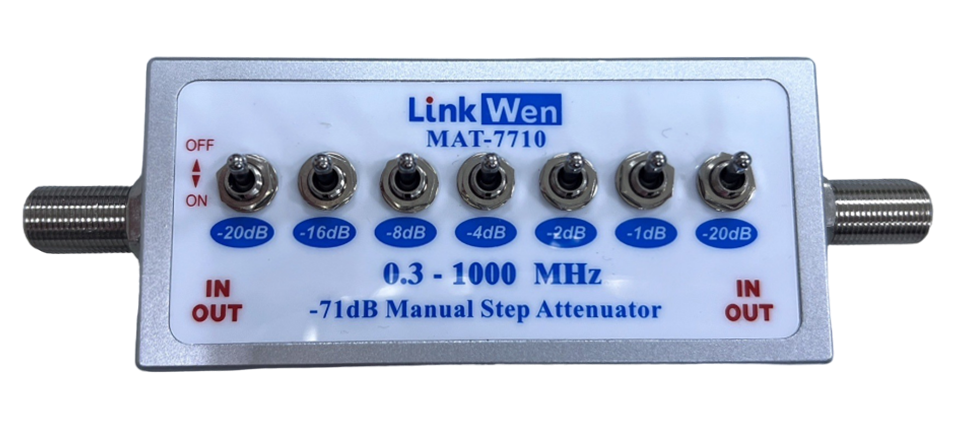

MAT-7710 is a 75 Ohm 1 GHz manual step attenuator that provides attenuation in 1dB-steps from 0 to 42/ 61/ 71dB. It boasts a very good full band attenuation accuracy (+/- 0.5dB) and a minimum 16dB return loss. These specifications are stable for at least 20,000 usage cycles! Now, the 1250 MHz models is also available.
Feature:
- 1 dB/step
- High Precision
- Excellent Return Loss
- Long Life : 20,000 switch cycles(min)
- Excellent Mechanical Structure
- Excellent Return Loss
- Precision Connector
- Aluminum Alloy Housing
- Exquisite Baking Painting Quality
- Good Weather Resistance
