MPEG2 TS Player, Recorder & Converter . TS-over-IP.
DVB-S2/S input & DVB-ASI Output
DVB-IP Transmiter & Receiver
Tunnelling of DVB-S2/S signals over LAN, WAN or the Internet
Pro-MPEG Code Of Practice #3(COP3) forward error correction (FEC)
Combined DVB-S2/S to DVB-IP/DVB-ASI Converter.
Web based Software as well as DVSStationIP,Alitronika's TS Recorder/Player/Analyzer.
Windows XP, Vista, Windows 7 ( 64bit ) Drivers/SDK, Linux Drivers.
Remote Web-based configuration management and remote firmware upgrade.
Saved configuration setting. No re-configuration needed after system reboot.
IP Encapsulation of the TS data for Ethernet uses IP and the User Datagram Protocol (UDP).
Real-time Transport Protocol (RTP)encapsulation.
Pro-MPEG Code Of Practice #3(COP3) forward error correction (FEC).
Dedicated hardware performs the encapsulation, which maximizes the throughput and latency.
Encapsulation of the TS data for Ethernet uses IP and the User Datagram Protocol (UDP), with Real-time
Transport Protocol (RTP) encapsulation and COP3 FEC.
Dedicated hardware performs the encapsulation, which maximizes the throughput and
The device can accept traffic from Ethernet network and recover TS data.
For RTP encapsulated data, the device incorporates buffer to absorb network jitter and correct for packet reordering and packet duplication.
COP3 FEC-based lost packet recovery is available.
For multiple TS interfaces, the AT60IP, individually maps each one to a specific UDP/IP socket (a combination of IP address and UDP port).
All other encapsulation parameters can also be individually configured per TS.
Input & Output
IP Maximum rate of up to 214 Mbps per ASI channel.
Network jitter correction.
Supports constant bit rate ASI output.
IP address assignment from DHCP server and static IP address.
IP address also configurable through the web interface.
Configuration for Time To Live (TTL) for Multicast.
DVB-S2/S Direct TV Compliant QPSK Reception.
Demodulation Standards: DVB-S, DVB-S2, DVB/DSS.
Input Frequency Range: 950 MHz to 2150 MHz.
Symbol Rate: 2 Mbaud to 45 Mbaud.
Channel Bitrate: 190Mbit/s.
Supports 188, 204 Transport Packet Sizes.
RF Loop Through Output.
Supports DVB According to Standard A1010 Rev1 and EN50083
AT60IP the Key to the Cloud
The Easiest & Cheapest way to send TS from a Dish to the Cloud

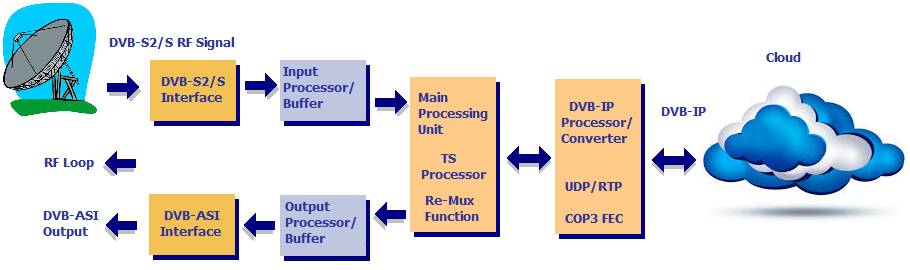

AT60IP => DVB-S2/S to IP converter.
Targeted for Digital Video Professionals, Sophisticated End Users and OEMs
the AT60IP is an ideal solution for a number of applications such as:
DVB-S2/S to IP Gateway.
Universal Interface for Digital Video or MPEG-II Transport Stream Recording, Playing and Processing.
Video on Demand Server.
Software Based MPEGII Encoders and Decoders.
Studio to Transmitter Links.
ENG (Electronic News Gathering) – Stream content to and from remote locations.
Ethernet encapsulation: IEEE 802.2 SNAP, Eth.
Encapsulation: UDP or RTP
IP support: IPv4
IP-address assignment: DHCP,link local or static
Multicast support: IGMPv2
Date Rate: 100/1000
GigE port Physical layer: IEEE 802.3a
GigE port Connector: RJ-45 with LEDs
FEC: Pro-MPEG Code Of Practice #3(COP3)
TSoIP to ASI latency: Less than 1ms
Jitter tolerance range: 1 .. 500ms

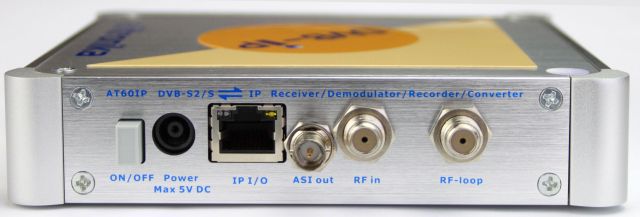

RF Tuner Connector: 75 Ohms F Type
Loop Through Connector: 75 Ohms F Type.
Input Frequency Range:950 MHz to 2150 MHz.
Input Signal Level:-65dBm to -25dBm @ 27.5 Mbaud.
Maximum Symbol Rate: QPSK/LDPC/BCH: 45MSPS, 8PSK/LDPC/BCH:30MSPS, DVB:2-45MSPS.
DisEqc: DisEqC 2.X.
Standards: DVB-S2/S & Direct TV.
Demodulation Standard: DVb-S2 & DVB/DSS compliant.
Modulation Method: DVB-S:QPSK, DVB-S2: QPSK, 8PSK, 16APSK & 32APSK.
Supported Code Rate:
-QPSK: 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9 and 8/10.
-8PSK: 3/5, 2/3, 3/4, 4/5, 5/6, 8/9 and 9/10.
-16APSK: 2/3, 3/4, 4/5, 5/6, 8/9 and 9/10.
-32APSK: 3/4, 4/5, 5/6, 8/9 and 9/10.
DVB-ASI port Physical layer: EN50083-9
DVB-ASI Connector: 75 Ohms Mini BNC.
Input Return Loss: >15 dB.
Input Signal level: 800 mV +/- 10%
Output Signal level: 1.0Vp-p nominal.
DVB-ASI Input/Output Bit Rate: 0 to 214 Mbit/s.
DVB-ASI Output Clock: 270 MHz.
Alitronika devices are supported by DVSStation3/DVSStation4 or DVSStationIP, Alitronika's FREE
Transport Stream Player, Recorder, Analyser and converter application software.
Please refer to the specification and User Manual of these applications for more information.
Even better please download them from our website and try them out. They works in DEMO mode without any Alitronika devices.
Using the"Discover" function of DVSStationIP, the device is located
Two options, "Update" the device's Firmware or go to "Settings"
Updating the device's Firmware takes a few seconds
Play Screen - Select the device's IP address & send Transport Streams to it
Record Screen - Or Receive & Record Transport Streams from it

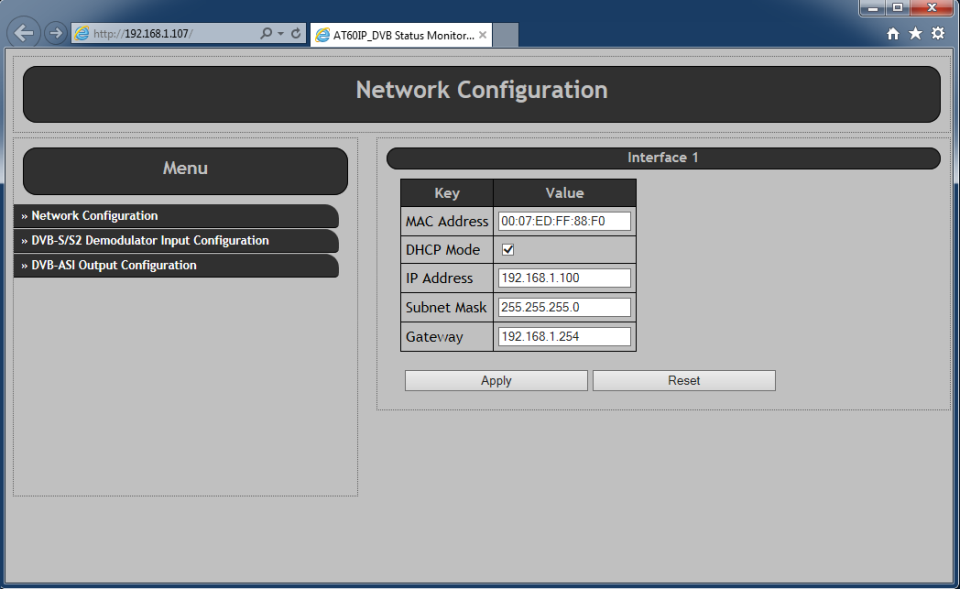

The AT60IP Version1 Web application Main Screen

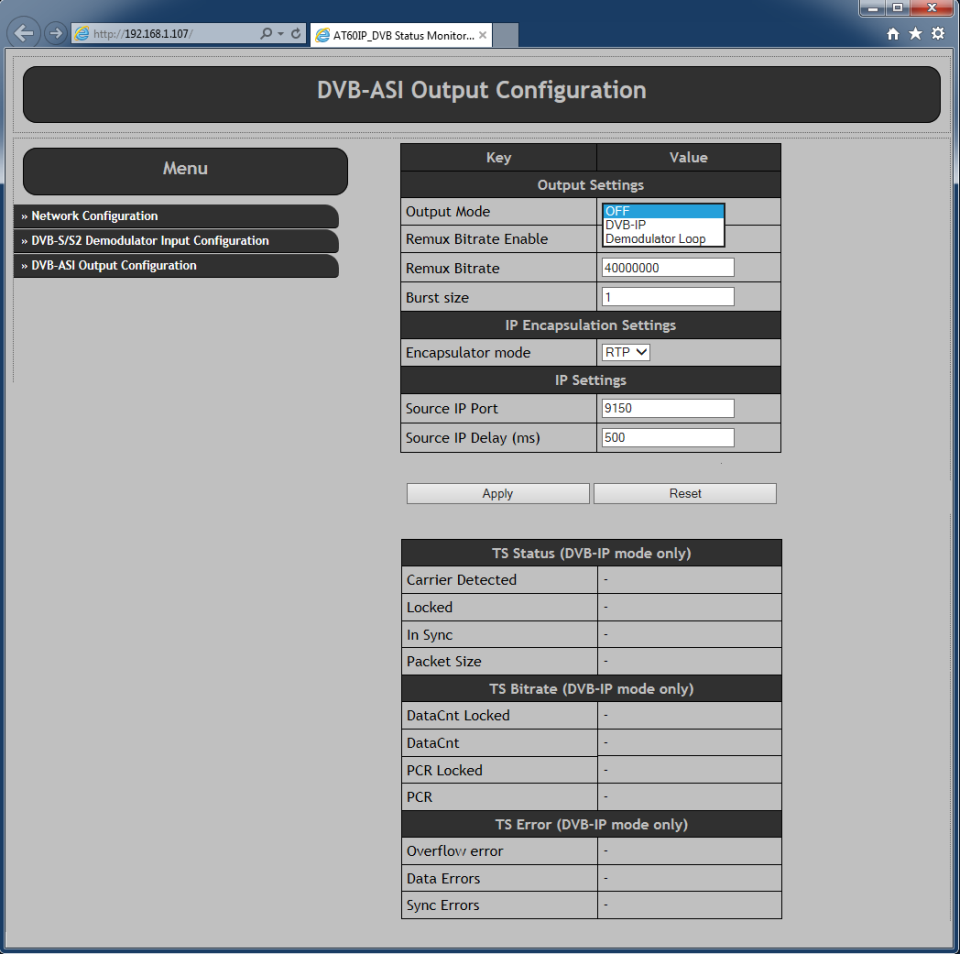

DVB-ASI Output Settings

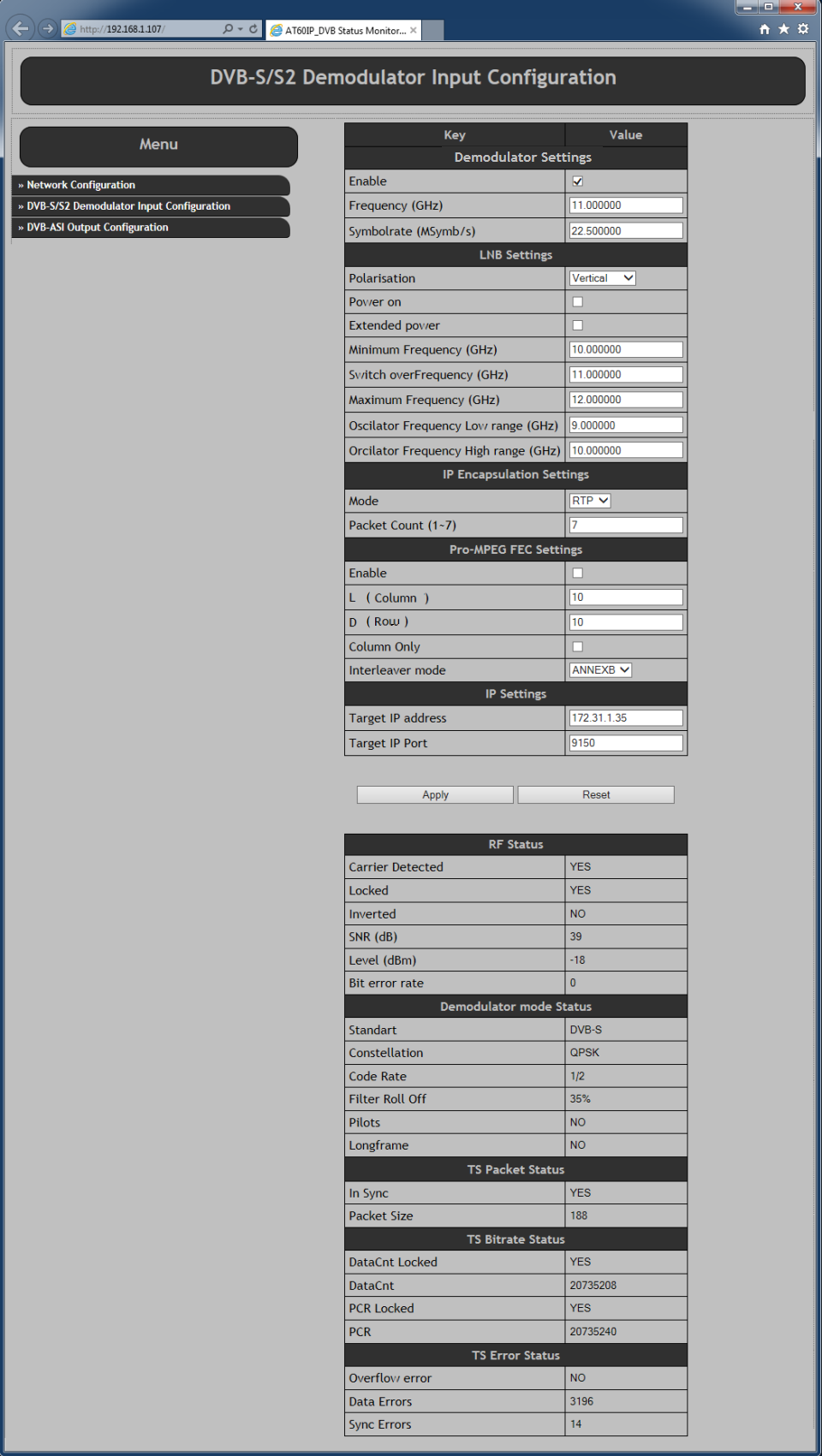

DVB-S2/S Input Settings
