MPEG2 TS Player & Recorder
DVB-ASI Input & Output
Combined DVB-ASI Input & Output Device.
PCI 2.2, 32 bit, 33/66MHz 3.3V.
Bus Master DMA, Scatter /Gather Interface Protocol.
Windows XP, Vista, Windows 7 ( 64bit ) Drivers + SDK & Linux Drivers.
Accompanied by DVSStation3 Alitronika's Application Software.
Supports DVB According to Standard A1010 Rev1 and EN50083.
Supports 188 & 204 byte or Arbitrary Packet Sizes.
Integrated Loop Through output.
Automatic Cable Equalization of up to 350m.
Supports True or Inverted ASI signals.
Carrier and Lock Detection.
Sync, Error & Code Violation Detection.
PID filtering by Hardware.
PCR Time stamping by Hardware.
Programmable Output Bit Rate.
Can output True and Inverted signals.
Supports Burst Mode, RAW Data Mode.
Null packet insertion by Hardware.
PCR, continuity counter correction.
Packet time and date correction.
Hardware Generated Null Packet or Counter Packet.
Targeted for Digital Video Professionals, Sophisticated End Users and OEMs
the AT40LPPCI is an ideal solution for a number of applications such as:
DVB to IP Gateway.
Universal Interface for Digital Video or MPEG-II Transport Stream Recording, Playing and Processing.
Video on Demand Server.
Transport Stream Test Generator.
High Speed Serial Data Link.
Software Based MPEGII Encoders and Decoders.

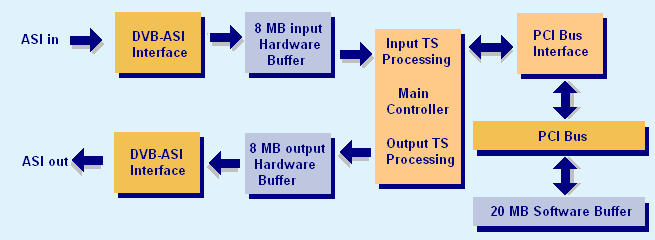

On Board Buffer: 16 Mbytes
External DVB-ASI Connector: 75 Ohms BNC.
Input Return Loss: >15 dB.
Input Signal level: 800 mV +/- 10%
Output Signal level: 1.0Vp-p nominal.
DVB-ASI Input/Output Bit Rate: 0 to 214 Mbit/s.
Bit Rate Stability:
Standard: +/- 25ppm.
Maximum: +/- 1ppm.
DVB-ASI Output Clock: 270 MHz.
Size WxL: 60mmx120mm.
Alitronika devices are supported by DVSStation3/DVSStation4 or DVSStationIP, Alitronika's FREE
Transport Stream Player, Recorder, Analyser and converter application software.
Please refer to the specification and User Manual of these applications for more information.
Even better please download them from our website and try them out. They works in DEMO mode without any Alitronika devices.
The application software provides the user with many functions & features such as :
Bit, Byte & Packet error insertion
TOT & TDT selection
PlayBack in loops, sub-loops.......
Hardware Working Regiters are accessable for monitoring
Among the "Goodies" are a Video Viewer
A DVB to IP Player/Converter
As well as the Integrated Quick TS Analyzer,
TSReadersupport these devices.
