Stand alone, Multi-standard Modulator including Re-Mux function
Supports DVB-S2X, DVB-S2/S & DVB-DSNG
VHF & UHF Up-converter

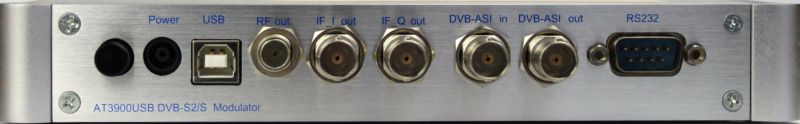

IF & RF outputs, DVB-ASI input & output
Can modulate TS files from USB,
external DVB-ASI/SPI, an
IP source or on-board
QPSK Modulator and UHF Up-converter, supports
DVB-S2, DVB-S & DVB-DSNG.
function to reduce bitrate for trans-modulation.

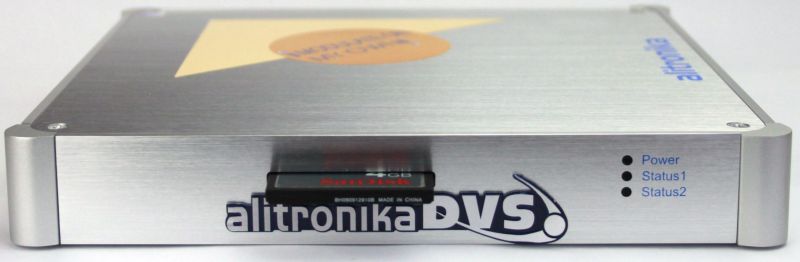

Compact Flash Memory to play Transport Streams without a need for an
Stand alone operation. No PC needed. Modulation of TS files from On Board CF or External DVB-ASI source.
High Speed USB 2.0
Windows XP, Vista, Windows 7 ( 64bit ) Drivers + SDK.
Accompanied by DVSStation4 Alitronika's Application Software.
Supports DVB According to Standard A1010 Rev1 and EN50083.
Modulation of Transport Stream files from Hard disk.
Modulation of Transport Stream from an external source via DVB-ASI input.
All modulation processes are carried out by the hardware so that there is no load on the PC processor,
So there is no need for an expensive high performance PC.
Supports Burst or continuous modes, 188 and 204 packet sizes.
control of Settings & Parameter.
for both Settings & Data transfer.
& (Q) Output.
DVB-ASI output for monitoring the modulated TS file.

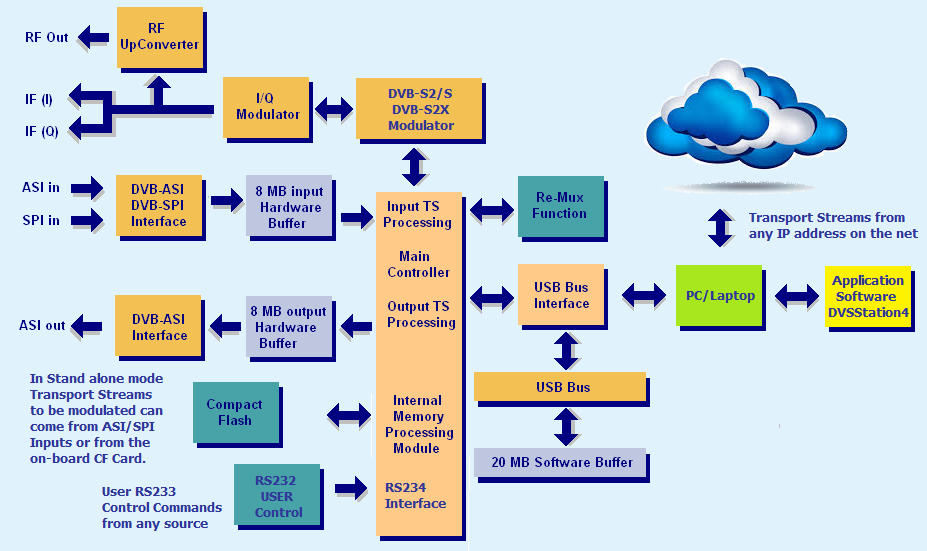

Modes of operation
In this mode the AT3900USB operates just as a standard USB based
device. The Modulation and IF/RF parameter can be set via the
application software, DVSStation4.
The Transport Streams could be entering the
device via the USB interface or via an external DVB-ASI source.
A Re-Mux function could be used to Filter out
unwanted PIDs to reduce the bitrate of the TS file or the Incoming
DVB-ASI Transport Streams.
Stand alone Mode
In this mode the device no longer requires a
PC for its operation. Any Transport Streams from the DVB-ASI input is
modulated according to the parameters set by the user. The
modulation, If & RF parameters are stored on the on board
memory of the AT3900USB. These parameters could changed by the user
ant any time via the USB or RS232 interfaces.
If there are no incoming DVB-ASI streams, the device modulates from
the TS files recorded on its ON BOARD COMPACT FLASH memory.
In this mode of operation, it is possible to have UNINTERRUPTED modulations of a MPEG
Transport Streams, having RF ( 950 to 2150MHz ), IF ( both I & Q
DVB-ASI outputs available at the SAME TIME, 24 Hours a day, 7 days a
week without a PC.
Targeted for Digital Video Professionals, Sophisticated End Users and OEMs
AT3900USB is an ideal solution for a number of applications such as:
Development Tools for
DVB-S2/S Receiver R&D.
IP to DVB Gateway.
DVB-S2/S Transport Stream Generation.
QPSK signal generator for Test & Validation.
Demonstration and Trade Shows.
DVB-S2/S output for OEM product.
On Board Buffer:16 Mbytes.
IF Output Frequency:49-51 MHz or 99-101MHz adjustable in 1Hz steps.
IF Output Power over bandwidth: -10dBm.
RF Connector:75 Ohms F-Type.
RF Output Frequency Range:950MHz to 2150MHz.
RF Output Power over bandwidth:-10dBm to
-45dBm, adjustable in 0.5dB steps.
DVB-DSNG, DVB-S, DVB-S2 and DVB-S2X.
Spectral modes: inverted and non-inverted.
Alpha rolloff: 0.35.
FEC Code Rates: 1/2, 2/3, 3/4, 5/6 and 7/8.
up to 45 MSymbols/s.
up to 72.574 MBit/s. In Stand Alone mode bitrate is limited to
DVB-S2, DVB-S2X Mode:
0.20, 0.25 and 0.35.
QPSK, 8SPK, 16APSK and 32APSK.
FEC Code Rates: 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9 and 9/10.
up to 45 MSymbols/s.
up to 200.385 MBit/s. In Stand Alone mode bitrate is limited to
0.20, 0.25 and 0.35.
8SPK and QAM16.
DVB-ASI Input/Output Connectors:75 Ohms BNC.
DVB-ASI Output Signal level:1.0Vp-p nominal.
DVB-ASI Output Clock: 270 MHz.
DVB-ASI Input return loss: 15dB.
Alitronika devices are supported by DVSStation3/DVSStation4 or DVSStationIP, Alitronika's FREE
Transport Stream Player, Recorder, Analyser and converter application software.
Please refer to the specification and User Manual of these applications for more information.
Even better please download them from our website and try them out. They works in DEMO mode without any Alitronika devices.

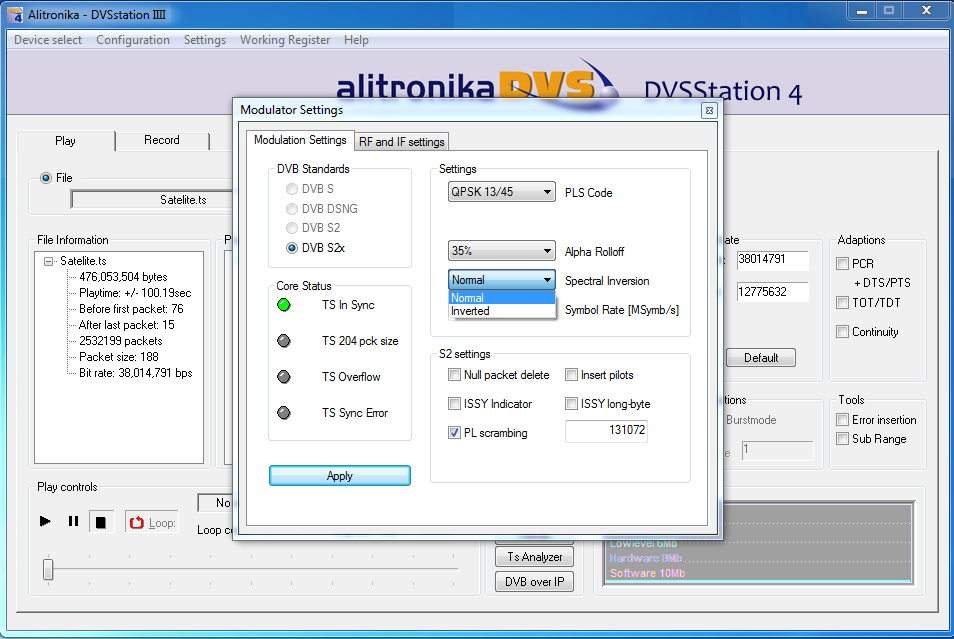

Play Screen=> In normal operating conditions
Record Screen => In normal operating conditions

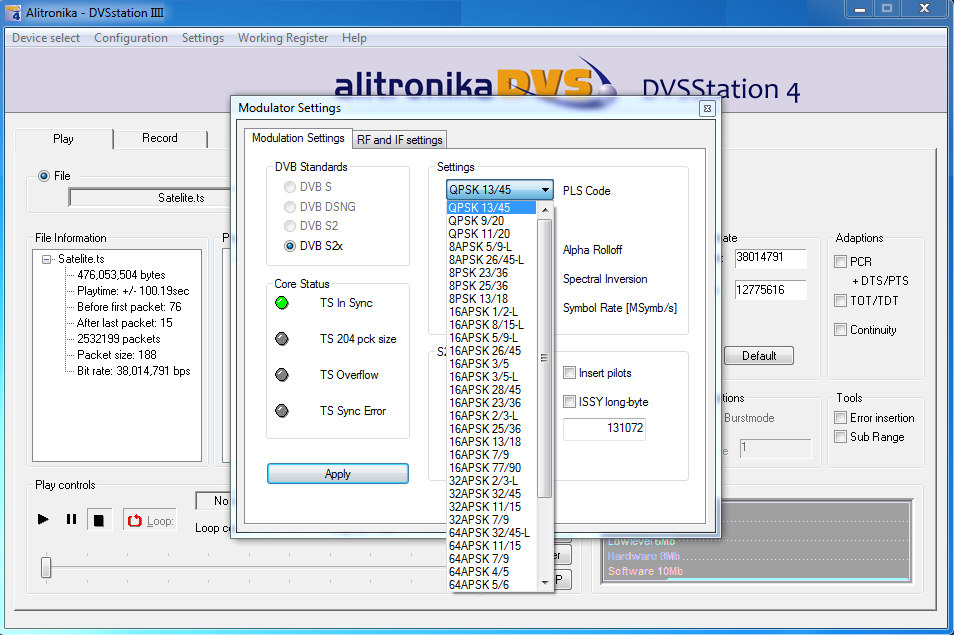

DVB-S2 PLS Codes
DVB-S2X PLS Codes
Alpha Roloff Settings
IF output frequency is selectable between 50MHz & 100MHz
The application software provides the user with many functions & features such as :
Bit, Byte & Packet error insertion
TOT & TDT selection
PlayBack in loops, sub-loops.......
Hardware Working Regiters are accessable for monitoring
Among the "Goodies" are a Video Viewer
A DVB to IP Player/Converter
As well as the Integrated Quick TS Analyzer,
TSReader support these devices.

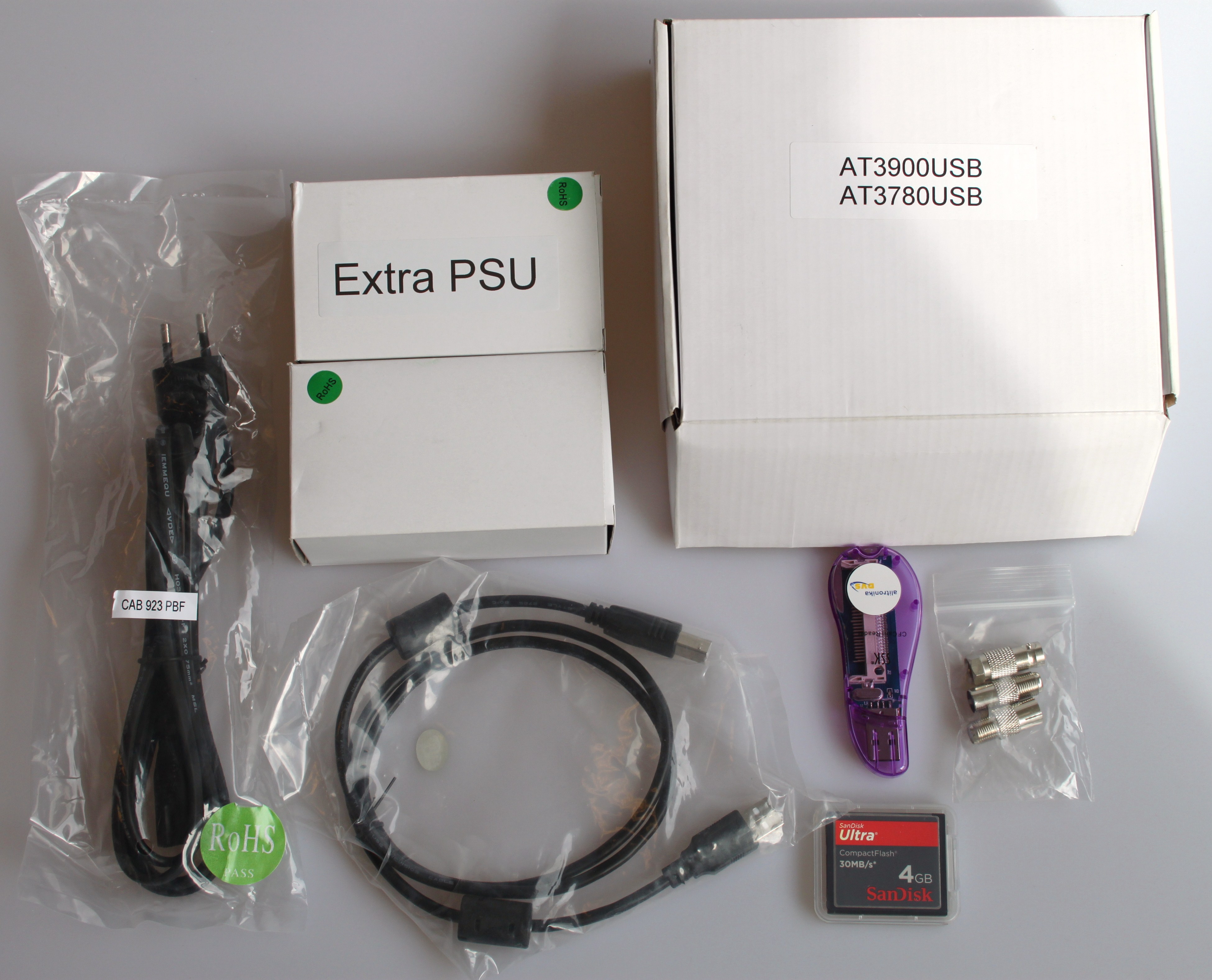

Accessories: The AT3900USB is
delivered with the following items, 2 power supply units, a power
cord, a USB cable, a 4MB CF card, a CF card reader, a set of 3
different RF adaptors.
