Xena Ethernet Traffic Test Modules
Comprehensive Verification Solutions from 10Mbps to 1.6Tbps
Test Modules Overview
Xena provides a full range of Ethernet traffic generation, analysis, and network emulation modules covering speeds from 10 Mbps up to 1.6 Tbps. Each module is designed for specific speed ranges and technical scenarios, supporting high-speed SerDes, PAM4/NRZ modulation, error injection, latency/jitter measurement, and more. When combined with Chimera for network emulation, these solutions become indispensable tools for R&D teams and test laboratories.
The Xena platform enables complete Ethernet performance testing from Layer 1 to Layer 3, covering protocol validation, performance benchmarking, and real-world impairment simulation.
Module Families
- ODIN
- Speed Range：10 Mbps → 10 Gbps
- Supports 10/100 Mbps、1G、2.5G、5G、10G
- Focused on NRZ modulation, ideal for entry-level and foundational Ethernet testing
- Applications: Basic systems, IoT devices, edge networks, and product validation
- LOKI
- Speed Range：10 Gbps → 50 Gbps
- Supports 10G / 25G / 40G / 50G / 100G（NRZ）
- Optimized for switch, NIC, and data center interoperability testing
- Provides reliable and efficient verification for mid- to high-speed Ethernet
- THOR
- Speed Range：10 Gbps → 400 Gbps
- Supports NRZ (10G to 100G) and PAM4 (50G to 400G)
- Designed for high-speed networking equipment, mainstream switches, and optical interconnect validation
- Features comprehensive traffic generation, error injection, latency/jitter statistics, and more
- FREYA
- Speed Range：10 Gbps → 800 Gbps
- Designed for next-gen data centers and backbone networks
- Supports QSFP-DD / OSFP / 800G interfaces
- Enables advanced Layer 1 and Layer 2 validation
- EDUN
- Speed Range：100 Gbps → 1.6 Tbps
- Next-generation test platform supporting Terabit Ethernet
- Supports OSFP-1600 interface and 112G/224G SerDes
- Applications include advanced chip, switch, cable, and module testing

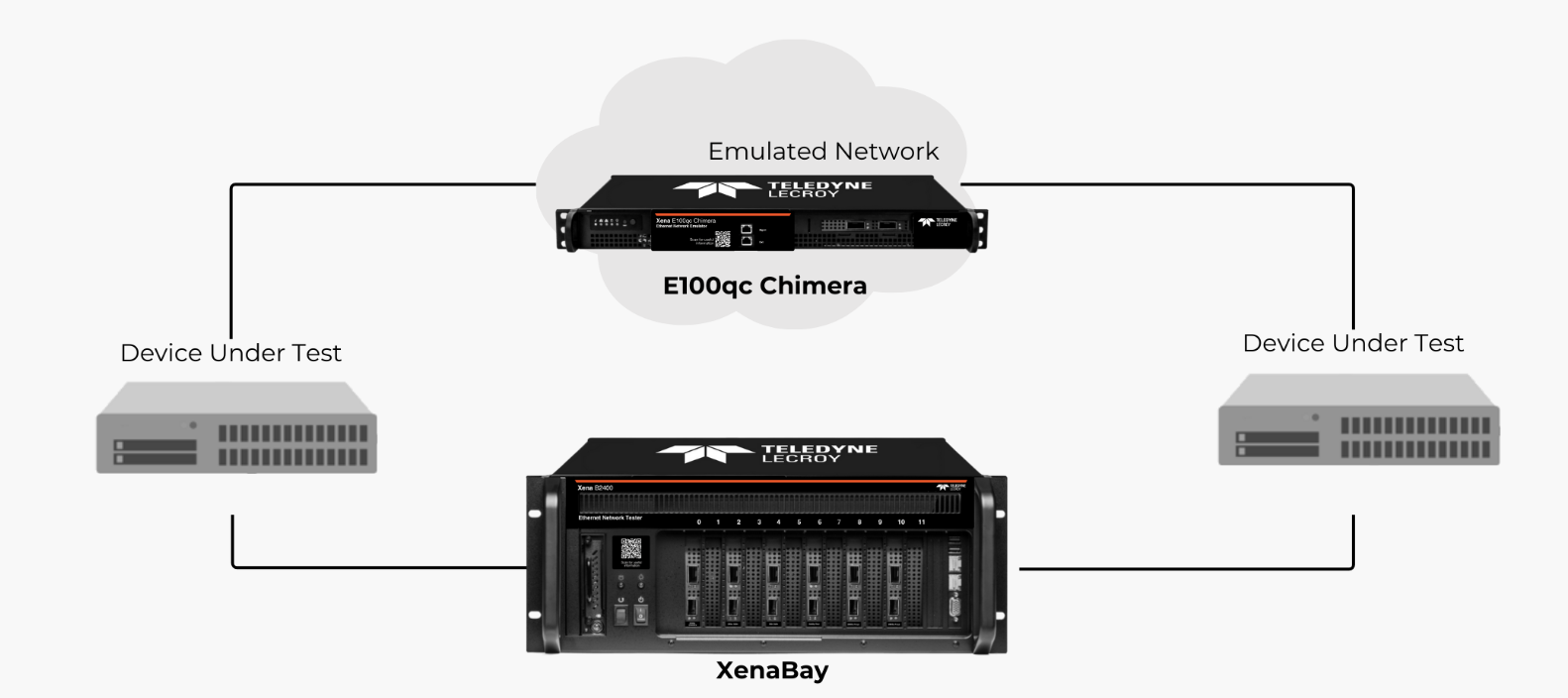

- CHIMERA
- Network emulation module
- Simulates latency, jitter, packet loss, bandwidth shaping, and more at line rate
- Works with Xena traffic generators to replicate real-world network impairments
- Ideal for stress testing, resilience verification, and robustness evaluation
Key Features
- Wide Speed Coverage: From 10 Mbps to 1.6 Tbps, supporting all generations of Ethernet testing needs.
- Comprehensive L1 Capabilities: Auto-Negotiation (AN), Link Training (LT), error insertion, and PCS/FEC verification.
- High-Efficiency Automation: Integrates with XenaManager and XOA API, supporting Python scripts and standardized test suites (RFC2544, RFC2889).
- Modular Architecture: Flexible configurations from a single desktop device to high-density, multi-slot platforms.
