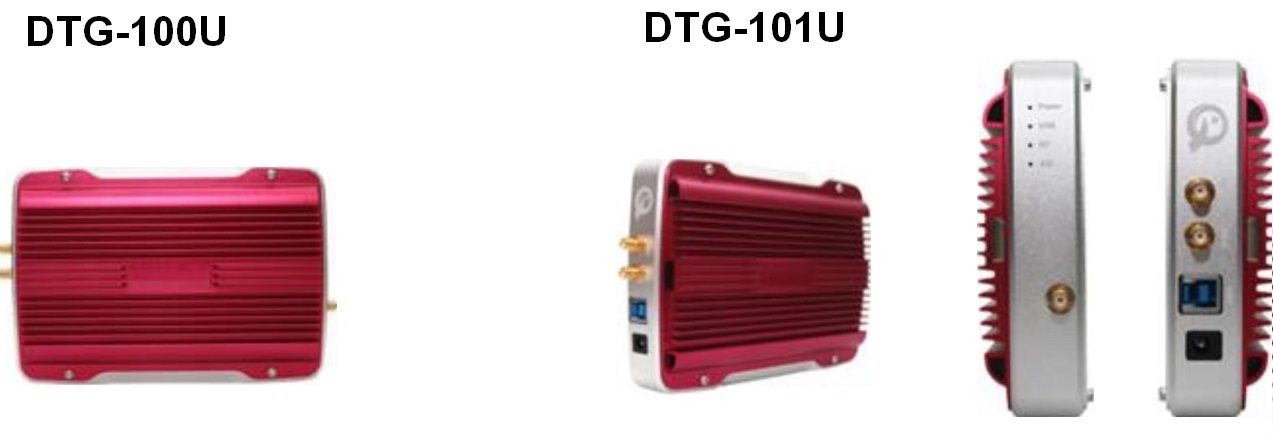

DTG-100U/101U USB Type Modulator DSG series USB multi-standard full-band digital TV signal generator

Suzhou Wuyang Electronic Technology Co., Ltd. is a professional company of network communication test equipment, dedicated to providing network test equipment, wireless network test equipment,

Network management analysis and debugging tools, and system development tools, etc.

Features

Used for testing and measurement purposes, such as professional R&D testing, factory testing, QA tuner, demodulator chip, receiver, TV, etc. testing.

Signal generator for easy portability.

Distinguishing feature

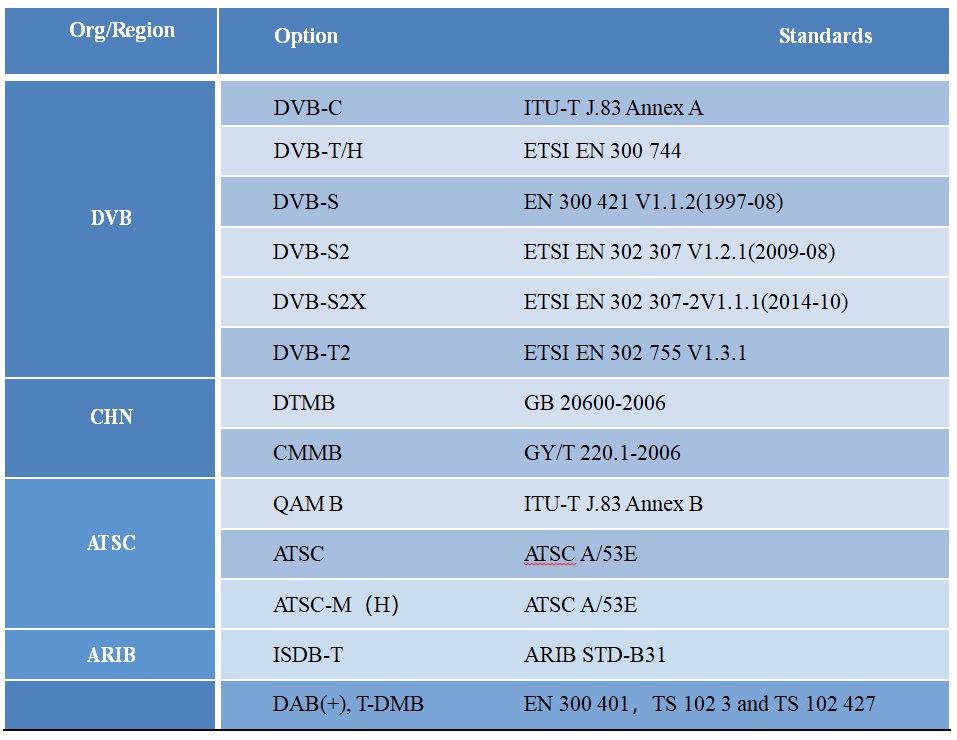

Support multiple modulation standards.

USB3.0 interface, high transmission rate.

It is easy to carry and can even be used with low-performance laptops.

Ultra-wide RF electrical frequency output from +10dBm to -110dBm (0.1dB setting).

High radio frequency accuracy.

Excellent signal quality, ultra-low phase noise.

AWGN model: white noise generation.

ASI input/output for real-time signal streaming.

The software supports automatic test FM function.

The software supports signal flow analysis and channel table.

The software supports the playlist function, and can be configured for automatic loop playback of multiple signal streams.

The software supports configuration parameter memory function and parameter configuration file function, suitable for production testing.

Convenient license upgrade.

Support extended function customization.

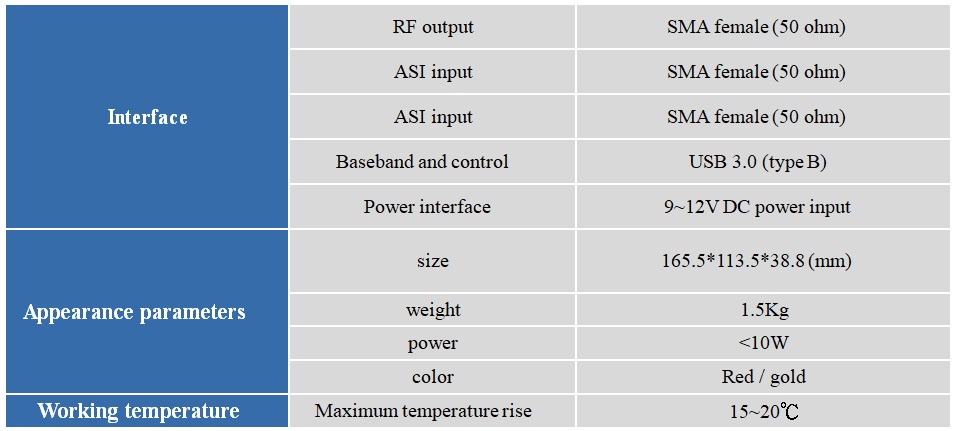

Configuration standard

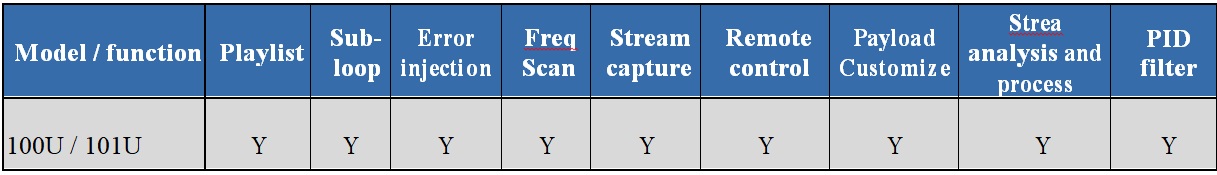

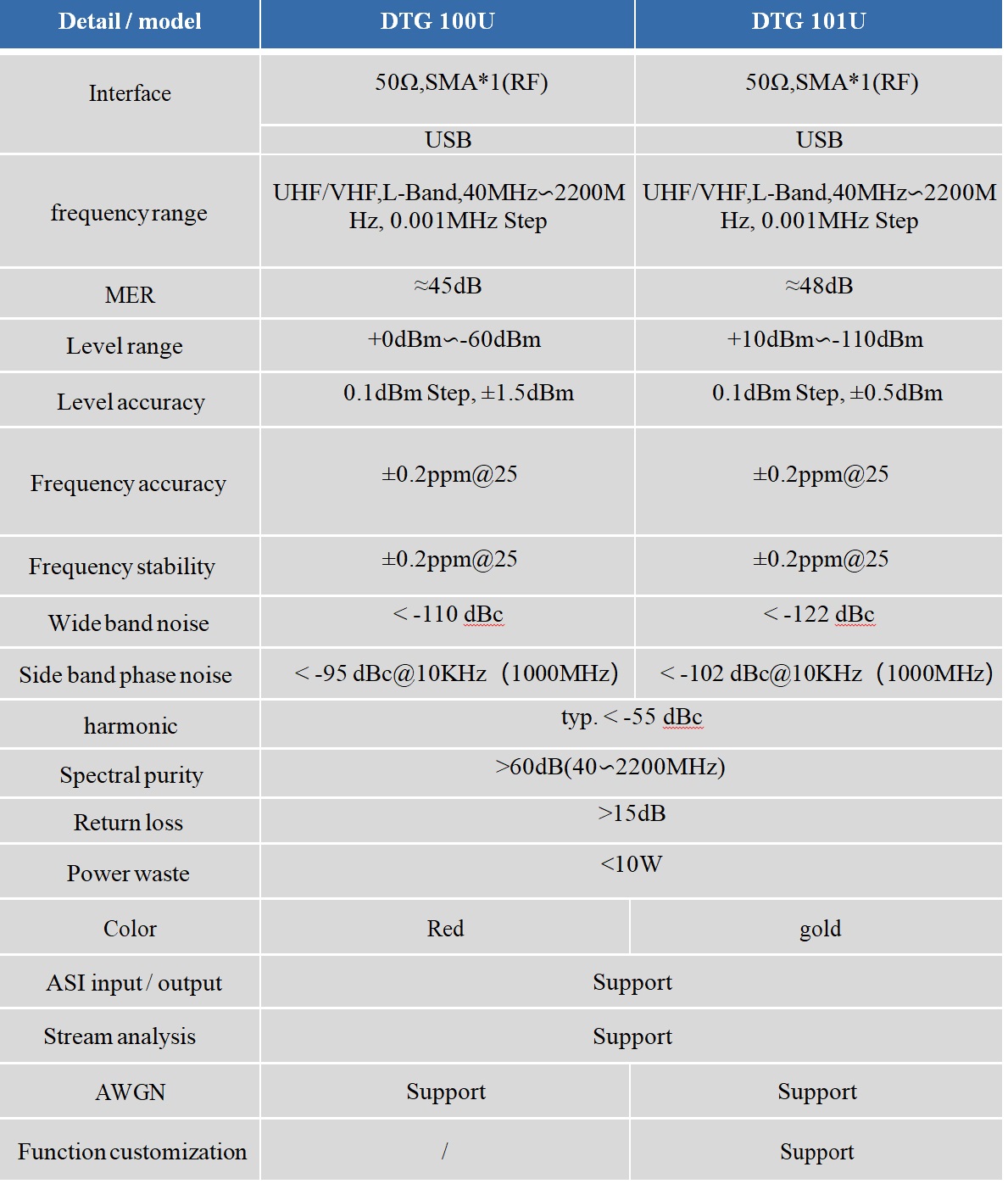

Model and characteristics

Other software support
