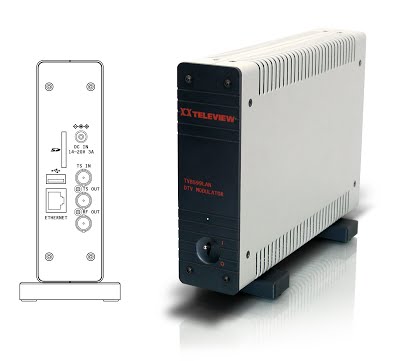

Network Modulator - TVB599/LAN

TVB599/LAN is a TVB598 integrated into a dedicated housing unit which has Single-chip Embedded Linux computer. The Linux computer has a Giga Ethernet port, USB2.0 port and SD card slot. Ethernet based remote control software ModulatorConsole is used to control this product from a remote site. The USB2.0 memory and SD card can be used optionally to store the transport stream file.

Features

• Transport stream from RTP/UDP over Ethernet (up to 80Mbps), FAT32 formatted USB 2.0 stick memory and SD memory card (UHS-1, up to 130Mbps), and DVB-ASI/SMPTE-310M input
• DVB-ASI, SMPTE-310M output for monitoring
• Integrated VHF/UHF/L-BAND RF output up-converter
• Programmable RF output level (0.1dB step, 0dBm ~ -60dBm)
• White noise addition over modulated signal to have desired C/N ratio
• QAM, 8VSB, DVB-T/H, DVB-T2, DVB-S/S2, DVB-S2X, DVB-C2, ISDB-T, ISDB-S, ISDB-Tmm,DAB(T-DMB), DTMB, CMMB, ATSC-M/H, 2nd-8VSB, 3rd-8VSB, 4th-8VSB, 2nd-QAM, 3rd-QAM, 4th-QAM, 2nd-DVB-T, 3rd-DVB-T, 4th-DVB-T modulation options available
• IQ Play modulation option NOT available
• Remote control using ModulatorConsole software available for Windows 7/8/10 32bit / 64bit and Linux 32bit / 64bit
• gRPC and SNMP based remote control available
