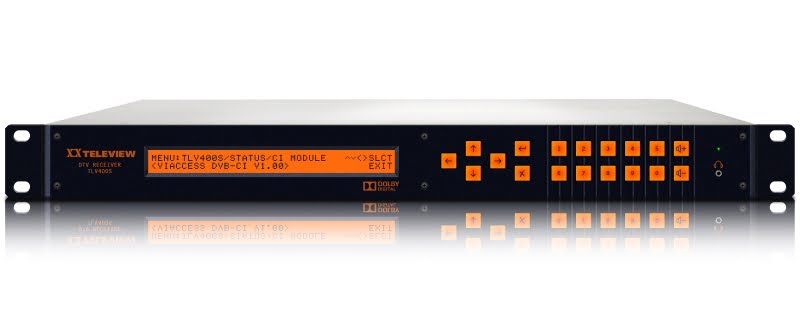

DTV HD Receiver - TLV400S

The TLV400S professional HDTV new generation frequency agile receiver demodulates all satellite DVB/ATSC H.264/MPEG-2 HDTV frequencies and supplies crystal clear digital or analog video from all formats used by broadcast professionals in Europe, USA, Canada, Mexico, Brazil and Korea. It not only functions as a dual input broadcast demodulator but also works well as a professional H.264/MPEG-2 decoder. The output of the demodulator is available through either DVB ASI or SMPTE 310M connectors. With its DVB ASI inputs it is able to decode transport streams up to 40Mbps. Designed to support all the industry standard forms of the DVB/ATSC standard it supports 576i/480i, 576p/480p, 720p and 1080i decoding. Supported video outputs include both digital and analog formats with HDSDI with embedded audio, SDI, Y Pr Pb, RGB, and composite. Audio output is available through embedded audio, 2 channel XLR connectors, D-Sub 9P connector and BNC connectors.

Features

• Signal from 75ohm BNC-connector
• May choose a digital stream from the satellite and DVB-ASI and SMPTE-310M signal
• Selected digital stream is supplied in DVB-ASI and SMPTE-310M format signal
• Dual MPEG-2(HD/SD) decoding, single MPEG-4/H.264 decoding (single audio decoding only)
• H.264(MPEG-4)/MPEG-2 MP@HL compliant video decoder supplies digital and analog video signal
• Digital video signal compliant with SMPTE-259M/SMPTE-292M(SDI) with embedded 8 channel audio (SMPTE-299M)
• Dolby digital AC-3 and HE-AAC and MPEG-1/2 5.1 channel audio decoder (MPEG2 AAC-LC(13818-7), MPEG4 HE-AACv1(14496-3. 2003) and MPEG4 HE-AACv2(14496-3. 2004) supported
• PCM stereo audio or compressed audio selectable over BNC connector
• Stereo audio output on XLR connector and D-sub 9P connector
• RGB video signal with 1080i/720p/576p/576i(480i) video mode
• BISS-1/E and DVB-CI support
• 2Lines by 40 characters LCD display
• PSIP/EIA-608, 708 closed caption compliant
• 1U rack mountable frame
• Firmware upgradeable via internet or USB
• USB 2.0 support
• SNMP (Gigabit Ethernet) management support
• TS transmission/reception over IP(UDP/RTP)
• FEC support(PRO-MPEG parity)

New IP Gateway Option

TLV400S is Gigabit Ethernet IP Gateway product that performs the following:

• Five channel ASI to IP Gateway
• Five channel SMPTE-310M to IP Gateway
• DVB-S/S2 to IP Gateway
• DVB-T/T2 to IP Gateway
• 8VSB to IP Gateway
• ISDB-T to IP Gateway
• Five channel combination of ASI/310M/DVB-S,S2/DVB-T,T2/8VSB/ISDB-T to IP Gateway

Specification

• MPEG2/MPEG4 video over UDP and RTP
• Simulcast and Multicast (IGMP v3)
• FEC with Pro MPEG CoP3 - SMPTE 2022
• ASI throughput: 216Mbps each
• IP throughput: 450Mbps (350Mbps for old TLV400S)
• Web based remote control: http and SNMP support

Available tuner options

• DVB-S+S2, DVB-T+T2, 8VSB+QAM options for 1st and 2nd tuner option
• ISDB-T tuner option for 2nd tuner option
