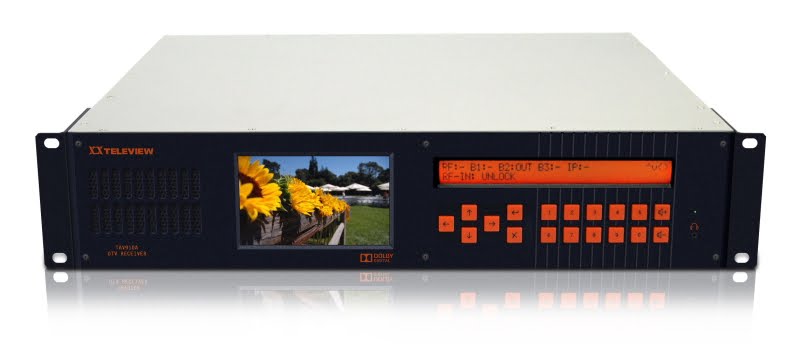

DTV Monitor - TAV910A

The professional DTV monitor TAV910A is based on TLV400S professional receiver and 4.3inch TFT-LCD and 10watt speakers are adopted to monitor decoding status. The TAV-910A demodulates all satellite DVB/ATSC H.264/MPEG-2 HDTV frequencies and supplies crystal clear digital or analog video from all formats used by broadcast professionals in Europe, USA, Canada, Mexico, Brazil, and Korea.

It not only functions as a dual input broadcast demodulator but also works well as a professional H.264/MPEG-2 decoder. The output of the demodulator is available through either DVB-ASI or SMPTE-310M connectors. With its DVB-ASI inputs it is able to decode transport streams up to 40Mbps. Designed to support all the industry standard forms of the DVB/ATSC standard it supports 576i/480i, 576p/480p, 720p and 1080i decoding. Supported video outputs include both digital and analog formats with HD-SDI with embedded audio, SDI, Y Pr Pb, RGB, and composite. Audio output is available through embedded audio, 5 channel XLR connectors, D-Sub 9P connector and BNC connectors.

Features

• Signal from 75ohm BNC-connector
• May choose a digital stream from the satellite and DVB-ASI and SMPTE-310M signal
• Selected digital stream is supplied in DVB-ASI and SMPTE-310M format signal
• Dual MPEG-2(HD/SD) decoding, single MPEG-4/H.264 decoding (single audio decoding only)
• H.264(MPEG-4)/MPEG-2 MP@HL compliant video decoder supplies digital and analog video signal
• Digital video signal compliant with SMPTE-259M/SMPTE-292M(SDI) with embedded 8 channel audio(SMPTE-299M)
• Dolby digital AC-3 and HE-AAC and MPEG-1/2 5.1 channel audio decoder (MPEG2 AAC-LC(13818-7), MPEG4 HE-AACv1(14496-3. 2003) and MPEG4 HE-AACv2(14496-3. 2004) supported
• Dolby digital (AC-3) or PCM stereo audio selectable over BNC Connector
• Dolby ProLogic compatible stereo audio output on XLR connector and D-SUB 9P connector
• RGB video signal with 1080i/720p/576p/576i(480i) video mode
• BISS-1/E and DVB-CI support
• PSIP/EIA-608, 708 closed caption compliant
• Firmware upgradeable via internet or USB
• USB 2.0 support
• SNMP (Gigabit Ethernet) management support
• TS transmission/reception over IP(UDP/RTP)
• FEC support(PRO-MPEG parity)
• 2Lines by 40 characters LCD display
• 4.3inch TFT-LCD monitor and 10Watt speaker
• 2 Rack Mountable Frame

New IP Gateway Option

TAV910A is Gigabit Ethernet IP Gateway product that performs the following:

• Five channel ASI to IP Gateway
• Five channel SMPTE-310M to IP Gateway
• DVB-S/S2 to IP Gateway
• DVB-T/T2 to IP Gateway
• 8VSB to IP Gateway
• ISDB-T to IP Gateway
• Five channel combination of ASI/310M/DVB-S,S2/DVB-T,T2/8VSB/ISDB-T to IP Gateway

Specification

• MPEG2/MPEG4 video over UDP and RTP, factory option
• Simulcast and Multicast (IGMP v3)
• FEC with Pro MPEG CoP3 - SMPTE 2022
• ASI throughput: 216Mbps each
• IP throughput: 450Mbps (350Mbps for old TAV910A)
• Web based remote control: http and SNMP support

Available Tuner Options

• DVB-S+S2, DVB-T+T2, 8VSB+QAM options for 1st and 2nd tuner option
• ISDB-T tuner option for 2nd tuner option
