DSG500 Generator

DSG500 is the all-in-one DTV signal generator supporting MPEG2 TS and RF Signal generation in one unit. It can cover all DTV standard and mobile TV standard in one unit including DVB-T, DVB-C, DVB-H, ATSC, OpenCable, DTMB(DMB-TH, ADTB-T), ISDB-T(SBTVD) and DVB-S/S2.

General Characteristics

• Modulator : Multi Standard (Option : DVB-T/H, DVB-C, ATSC, OpenCable, DVB-S/S2, DTMB(DMB-TH, ADTB-T), ISDB-T(SBTVD))
• RF Upconverter : Multi RF System (50 ~ 870MHz), Max.2
• MPEG2 TS Generator : Internal Generation
• MPEG2 TS Generator : External DVB-ASI/SPI Output (Optional)
• PS to TS (File, Live) Convert
• TS Analysis Information
• Easy Channel Selection by World-wide Channel Table DB
• Automatic Modulator setting (NIT Base) * DVB System Only
• Automatic Modulator setting (PCR bitrate Base/Dynamic Mode)
• Manual Modulator Setting (Parameter Setting : ISDB-T only)
• Manual Bitrate Setting
• Jitter Injection (TR 101 290 Level Error)
• C/N Noise Generation (AWGN)
• TS Packet Size : RAW/188/204/188+16 (Option: FM20X)
• Insertion of Null Packets (Static Mode, (Option: FM20X))
• Stream & System Monitoring
• Play List (Sequential Play)
• Memory Play on RAM Cache memory
• Touch Screen & Easy Operation GUI (Patent Registered)

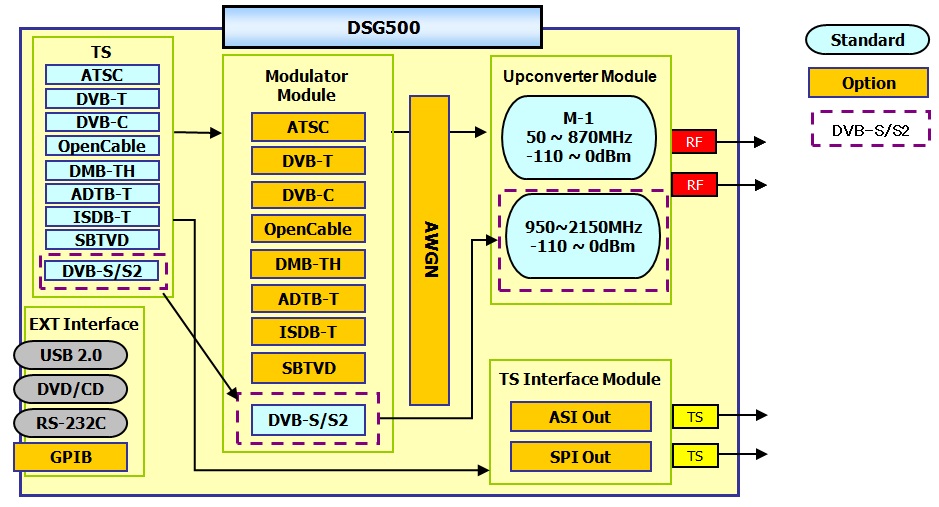

System Diagram
