AMM Test
MPEG Studio[AMM Test]

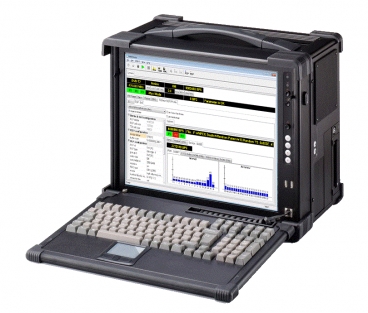

AMM Test is the integrated equipment which can Analyze MPEG TS, HEVC stream, Modifying and Transmitting immediately. (MPEG Analyzer, Editor, RF Generator unified and supports all digital broadcasting specifications: DVB-T2(MPLP, T2-MI), ISDB-T, DVB-S/S2)
AMM Test support creating, deleting, modifying functionality for MPEG TS packet and Section. User defined test pattern with variety parameters can be created.
And AMM Test support variety situations that occur in actual field.
Supporting specifications: DVB-T2 1.3.1(MPLP/T2 lite), DVB-T/C, ATSC, Opencable, DVB-S/S2, ISDB-T(SBTVD), CMMB : Nordig, DTG(D-Book), IDA, SABS, NCA, QCVN, SKMM, NBTC
Main Characteristics
Stream Analysis(DVB / ATSC / ARIB / CMMB)
- Packet Analysis
- EPG Analysis
- Service Analysis
- Video Profile Analysis : H.262, H.264, H.265(UHD)
- Audio Profile Analysis : MP1, MP2, AC3, AAC
Stream Editor
- EPG Editing
- Section and Descriptor Editing
- Sub Service Load and Save to TS
Pattern Generator : Internal Generation

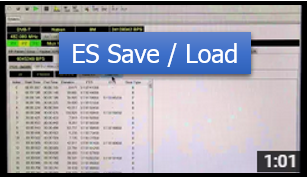

ES Load and Save with HEVC(UHD)

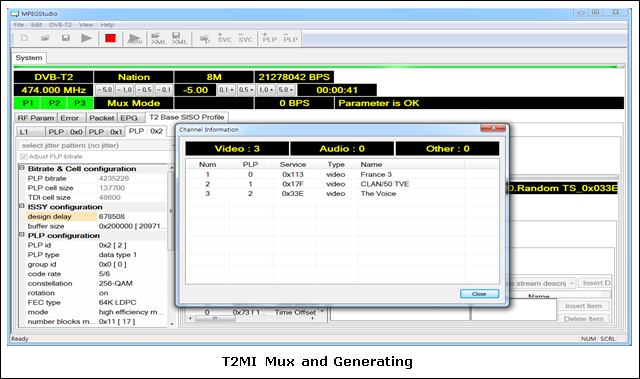

DVB-T2 (T2MI) Analysis, Edit, Generation support (Single PLP & Multi PLP)
- PLP insert and delete
- XML Scenario test(DTG Pattern support)

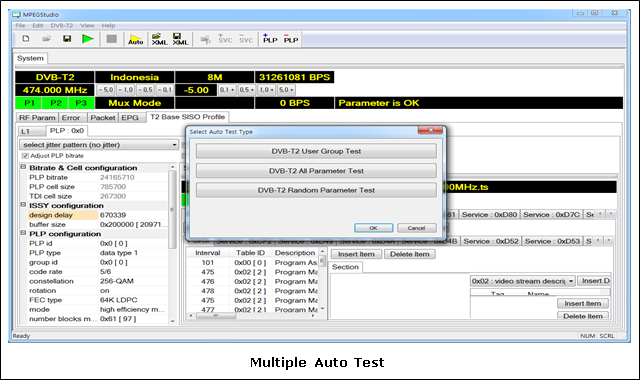

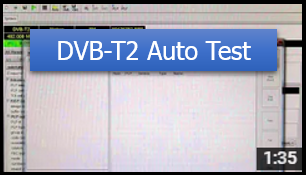

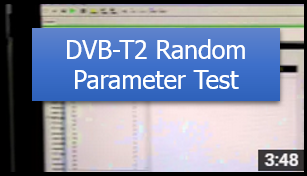

- 3 Types Auto test support
Multi Standard Support
- DVB-T, DVB-T2(T2 lite), DVB-C, ATSC, Opencable, DVB-S/S2, DMB-TH, ISDB-T(SBTVD), CMMB

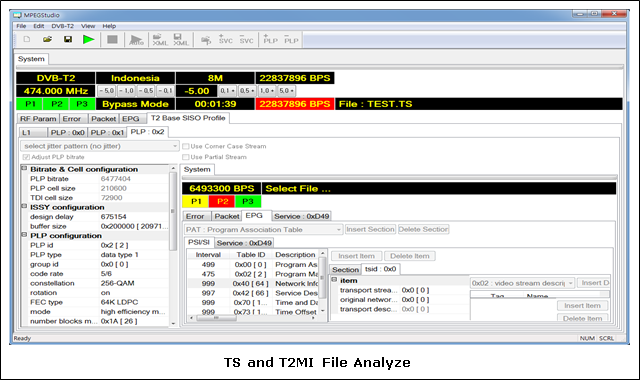

User Interface

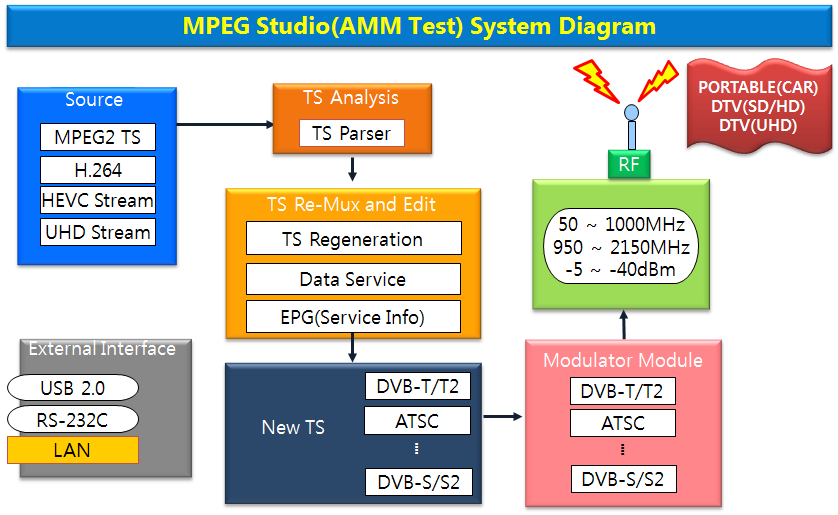

System Diagram

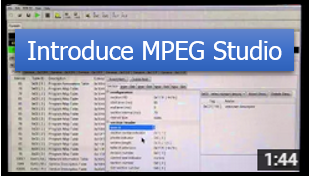

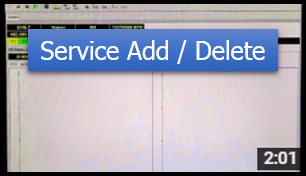

How to use this MPEG Studio[AMM Test]
