DVB-T2 Multi-view Monitoring System(ADM500)

ATBIS’ multi-view monitoring system, ADM500 is specialized in DVB-T2 signal monitoring and analysis. It’s powerful decoding function supports 3 HD contents simultaneously.

Also, ADM500 supports user-defined alarm function for various signal errors in broadcasting environment.

ADM500 is professional DVB-T2 monitoring system which supports multi-profile (Base and Lite Profile) and Multi-PLP analysis and monitoring function as well as various interface including ASI, RF, IP and File type (Offline analysis).

ADM500 will be very helpful solution for broadcasting engineers who want monitor and analyze DVB-T2 signal with real-time multi-view decoding more conveniently comparing to other solutions.

Key Features

• Support Standard
  - DVB-T2(T2MI)
• Deferred-time (Off-line) T2MI Analysis
• Real-time T2MI Analysis
• DVB-T2 L1 Analysis
• DVB-T2 M-PLP Analysis
• Support ISO/IEC 13818-1 Analysis
• Support ETSI EN 300 468 Analysis
• EPG Analysis
• MPEG2 TS Packet Analysis
• Service Analysis
• ES Parameter Analysis
  - H.262 MPEG2 video, H.264 MPEG4 Video
• Tree display about Multiplex Information (channel and table)
• Error Monitoring (TR 101 290 priority I II III)
• T2MI De-multiplexing & A/V Decoding
• Support Multi view Decoding
• Input Type : File, IP, ASI, RF
• Multi Input Analysis Support

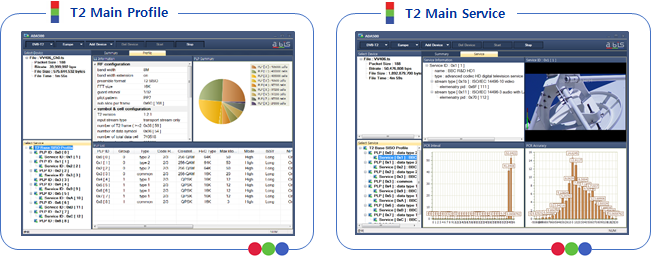

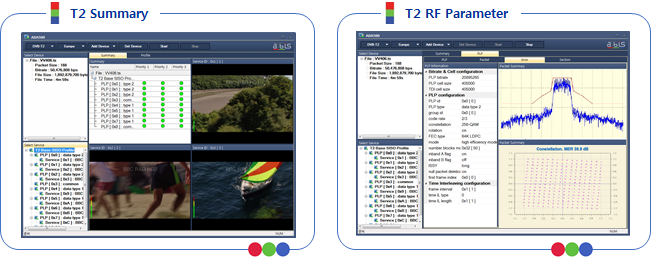

User Interface

System Diagram

RF Specifications
