AMARI UE Simbox Series
AMARI UE Simbox Series
The AMARI UE Simbox is an ideal solution for testing LTE eNodeB, 5G NR gNodeB in NSA/SA mode, and LTE and 5G core network functions and performance.

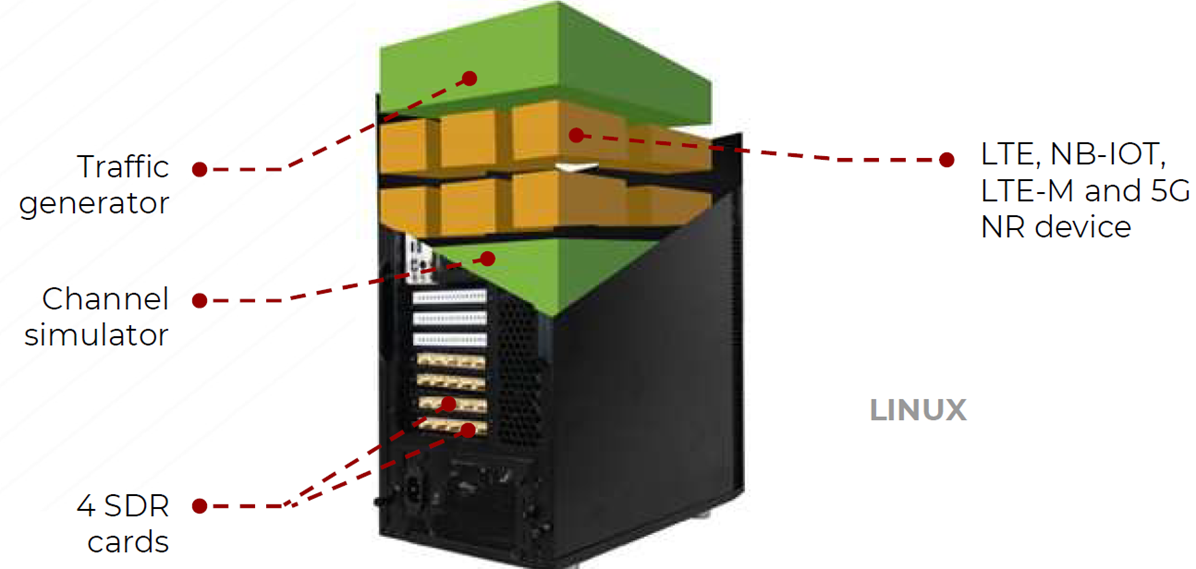

A single AMARI UE Simbox can simulate hundreds of UEs, sharing the same spectrum in multiple regions with different types of traffic. Each UE can be independently configured as an LTE, 5G NR, NB-IoT, or LTE-M device.
This product is equipped with an integrated IP simulation suite to reproduce test results.

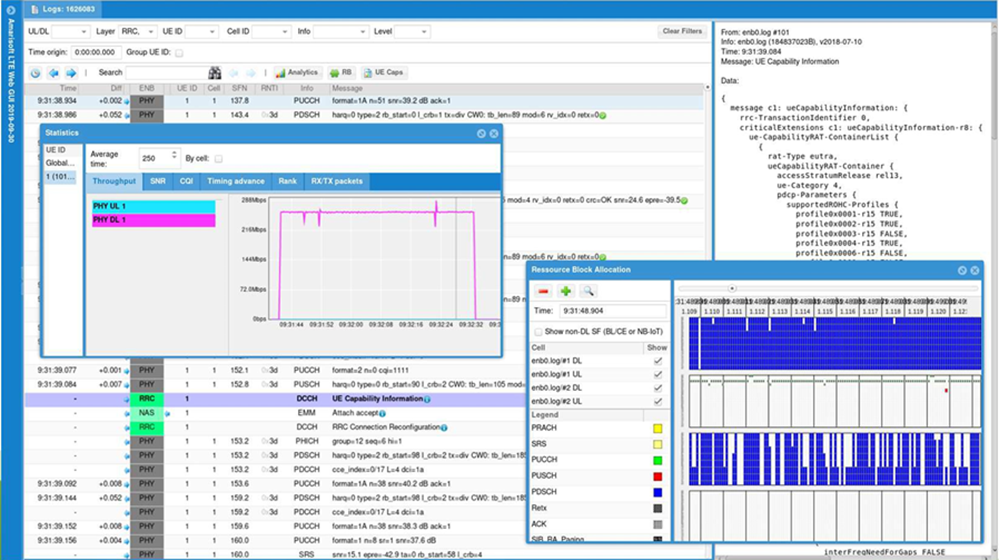

Recording and Measurement
Users can choose to record and display all layers of the 3GPP LTE and 5GNR stacks with accurate charts and analysis tools.
Automatic Test Setup and Scripts
A wide-ranging WebSocket API allows sending commands to eNodeB, gNodeB, EPC, and 5GC remotely, simplifying test automation.
Easy Configuration
Configuration is simplified through JSON files, with example configurations included for each software version of eNodeB, gNodeB, EPC, and 5GC.
End-to-End Data Testing
Users can operate with ease on standard Linux, allowing easy integration with IP services.
Channel Simulation
Simulate different DL channel types based on the 3GPP models specified in the 36101 standard.
Feature Testing
Feature testing allows covering standard protocol behaviors to simulate error conditions.
High-Performance
- Highly optimized software supports hundreds of UEs.
- Supports high data rates of up to 200 Mbps downlink and 75 Mbps uplink.
Full Spectrum Support
Supports all FDD and TDD frequency bands, including non-standard bands, to test custom frequencies below 6GHz.
3GPP Complete Support
Pre-knowledge of 3GPP features for quick validation of developing features.
| 3GPP Specification | Release 15 |
| Frequency bands | All FDD and TDD sub-6GHz bands with support of custom frequencies |
| Bandwidth | up to 50MHz |
| MIMO | up to MIMO 4x4 in DL |
| Modulation schemes | Modulation schemes |
| Subcarrier spacing | All SSB/data subcarrier spacing combination |
| Supported modes | NSA and SA |
| NSA NR Split bearer | 3, 3a and 3x |
| Use case | eMBB |
| Number of active users | 64 UEs |
| Number of active cells | 2 cells |
| IP traffic | Simulation of TCP, UDP, RTP, HTTP and VoIP with configurable packet size as well as support of external applications such as iperf |
