AMARI Callbox-Mini
AMARI Callbox-Mini

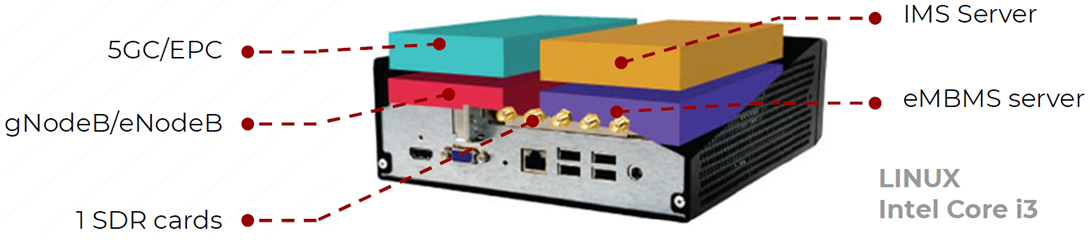

AMARI Callbox Mini is packaged in a plug-and-play integrated PC and is an ideal solution for testing LTE and 5GNR devices of all types.
4G/5G/IoT network simulation, supports 5G SA mode, suitable for basic connection testing and IoT environment simulation.
It acts as an eNodeB, gNodeB, EPC, and 5GC compliant with 3GPP specifications, allowing functional and performance testing of NR (SA mode), LTE, LTE-A, LTE-M, and NB-IoT devices. The device is completed by an integrated IMS server and an eMBMS gateway for VoLTE and eMBM testing.
Callbox is supported by high-quality LTE and NR software packages, providing basic band functionality at the same level as indoor/outdoor networks.
Recording and Measurement

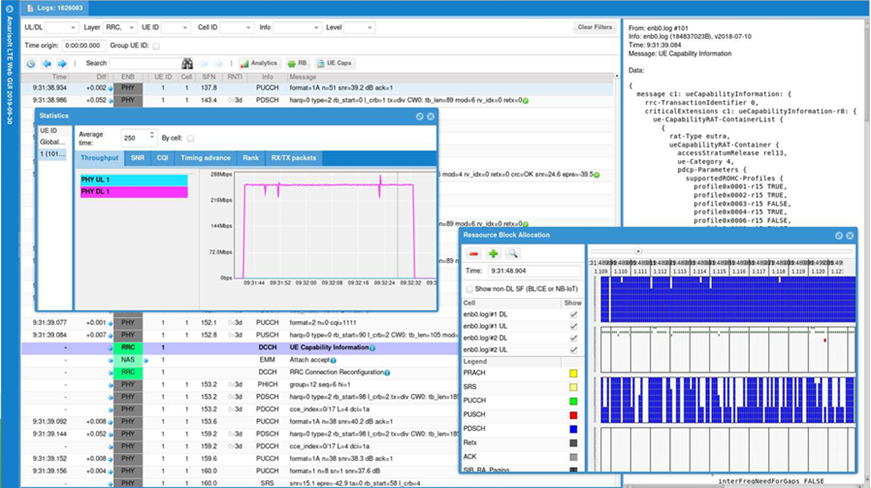

Users can choose to record and display all layers of 3GPP LTE and 5GNR stacks with accurate charts and analysis tools.
Automatic Test Setup and Scripts
Extensive WebSocket API allows sending commands remotely to eNodeB, gNodeB, EPC, and 5GC to simplify test automation.
Easy Configuration
Configure each software version of eNodeB, gNodeB, EPC, and 5GC through JSON files, including example configurations for easy setup.
End-to-End Data Testing
Users can operate easily with simple permissions on standard Linux, allowing easy integration with IP services.
Channel Simulation
Simulate different DL channel types based on 3GPP models specified in the 36101 specification.
Feature Testing
Feature testing allows covering standard protocol behaviors to simulate error conditions.
High-Performance
- Highly optimized software supports hundreds of UEs.
- Supports high data rates of downlink 200 Mbps and uplink 75 Mbps.
Full-Band Support
Supports all FDD and TDD bands, even non-standard bands, to test custom frequencies below 6GHz.
3GPP Full Support
Pre-knowledge of 3GPP features for quick validation of developing features.
| Max number of LTE cells | 1 |
| Max number 5G cells | 1 |
| Max total number of cells | 1 |
| Σ(Bi*Li) | 40 |
| Bi is the bandwidth in MHz of cell i, Li is the number of dl MIMO layer for cell i. | |
| 4G LTE | 20MHz 2x2 |
| NB-IoT | 1 NB-IoT cell in standalone, in-band or guard-band mode |
| LTE-M | 1 LTE cell with CAT M1 support |
