IPTV Combine 4X 是一个高集成IPTV伺服器,可应用酒店, 医院, 教育机构, 电信商, IPTV实验室等,本产品单一主机内建VOD Server, Middleware, DVB to IP Gateway , billing等,可同时处理高达500个IPSTB 的计费功能, DVB to IP 可接收解码4个 DVB-S/S2,DVB-T/C 的节目,1台IPTV Combine 4x 最多可同时处理50个节目流,并具1TB硬碟储存空间.

特点:

• 高集成性: IPTV Combine 4X 的所有软体均由NETUP开发,整合在单一主机时无相容性问题,出货时所有软硬体皆已安装完成,客户可快速使用无需再烦心安装及整合等问题.
• IPTV Combine 4X 可同时接收及解码4个DVB-S/S2 的讯号,相当于50个电视节目.
• IPTV Combine 4X 显示介面采用C++开发,当使用者透过IPSTB进行选单观看及选择时,其运行速度远较使用Javascript/HTML 开发之介面快速.

IPTV Combine 4x Specification

Services:

VoD + nVoD server (Video on Demand + near Video on Demand) DVB to IP Gateway: 4 DVB-S/DVB-S2 inputs + 4 CI solts Middleware, interactive user's interface for IP set-top boxes Electronic Program Guide (EPG) IP STB firmware update server, DHCP, DNS, IGMP querier, IP router optional: interface to hotel property management systems

Physical & Power

standard rack-mount case for 19" telecom rack height: 1U dimensions (WHD): 430 x 44 x 411 mm weight: 11.5 kg power supply: 90 ~ 264 Volts, 47 ~ 63 Hz

Disk Drives

flash card for reliable storage of OS and configuration files 1 TB HDD for multimedia content and database (corresponds to over 400 full-length movies in MPEG-2 4 Mb/s

Inputs/Outputs

6 x Gigabit Ethernet 10/100/1000 Mb/s 4 x CI solts 4 x DVB-S/DVB-S2 or 4 sx DVB-T/DVB-C or 4 x inputs for modulated TV signal (RF to IP) with real-time encoding into MPEG-2 or 4 x inputs for analog video signal (A/V, RCA) with real-time encoding into MPEG-2

Control & Administration

front panel LCD for initial configuration and system summary information administration Web interface administration Java interface ssh console, Linux 2.6.x OS RS-232 console

Performance

over 50 simultaneous VoD streams (4 Mb/s per stream). Total VoD bandwidth - 200 Mb/s satellite TV channels can be received from 4 different transponders at a total bandwidth of 240 Mb/s

Media Content Format

VoD files formats: MPEG-2, H.264 (MPEG-4 AVC) transport stream recommended bitrate: 4 Mb/s and more definition: SD, HD (720x576 or higher)

IPTV Combine 4x Hotel 是针对饭店业者提供完整的IPTV 头端系统,其内容包括

IPTV Middleare/Billing DVB to IP gateway VoD/nVoD server Interface to hotel property management systems (Hotel PMS)

特点

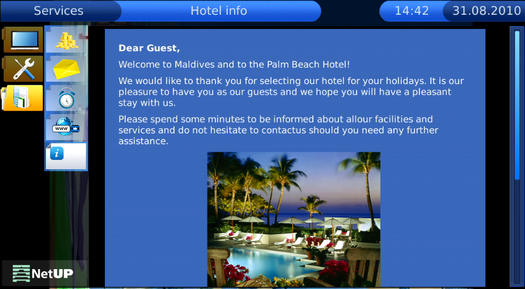

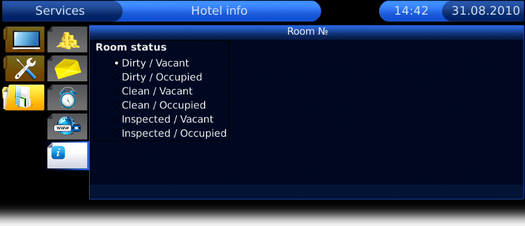

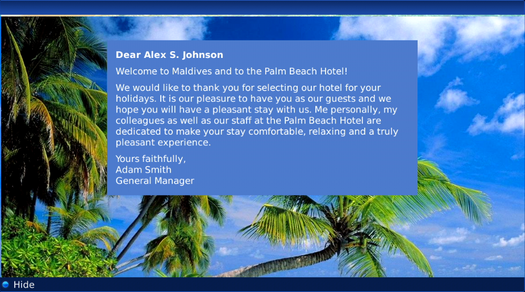

Welcome message on guest check-in Hotel information page Auto posting TV services from the IPTV system to the PMS Express checkout messages from reception Room status change via TV(dirty/clean) for the housekeeping service.

支援饭店PMS系统

MICROS-Fidelio hotel property management systems based on FIAS protocol:

Fidelio Suite 6 Fidelio Suite 7 Fidelio Suite 8 OPERA
