QA
Capture, Align, Compare, Pass/Fail, Repeat

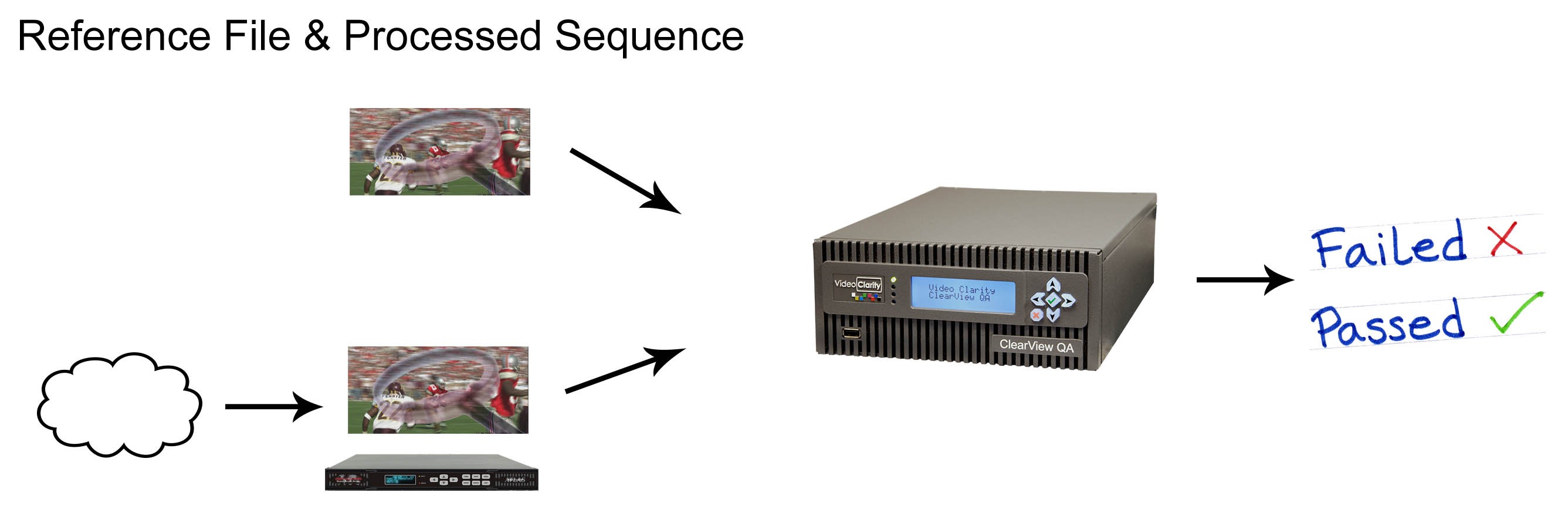

How do you know whether your quality is the same machine-to-machine? Do you know why the customer RMA-ed your unit back? ClearView QA captures the video output, aligns it with a known “gold” source, compares the 2 sequences, and reports pass/fail results outside of threshold. This solution is completely automated using our scriptable interface or it can be run interactively from a GUI.
ClearView QA is a 2RU Automated, Quantitative Video Analyzer, which is an end-of-line automated functional tester to ensure the quality of complex digital encoders & receivers used for terrestrial, cable, and satellite broadcast systems.
ClearView QA Solutions
Automated Pass/Fail Testing
Benefits
- Small QA/QC Quick, Scriptable A/V Quality Checker
Features
- Capture a “Reference Sequence”
- Capture a “Test Sequence”
- Automatic Spatial & Temporal Alignment
- Compare the Audio and Video and Generate Pass/Fail
- Log & Graph the results
Specifications
- 2RU form factor
- Up to 1080i/60Hz simultaneous record and playback
- Records or plays up to 1080p/60Hz with 3G HDSDI or HDMI
- Full Broadcast I/O Specs
- ClearView perceptual analysis and file import features are optional
Scripting Example
Optional Breakout Box
- QA HD Models
HD Audio and Video Quality Analyzers
Portable, Desktop and Rackmountable
| Format Independent Video Quality Analyzer with 1080p@60Hz 10 bit Play or Record or Dual 1080i HD, both with 2.5 TB storage |
| Two models preloaded VQEG & EBU Video Test Sequences |
| Objective Video & Audio Metrics (PSNR, aFREQ with lip sync, LKFS Loudness) |
| HD interactive side-by-side playback of two sequences up to 1080p30Hz or 1080i60Hz |
| Simultaneous play&record up to 1080i60Hz with HDSDI (or HDMI with 2041 model) |
| Single input or output mode up to 1080p60Hz on HDSDI 3G (or HDMI with 2041 model) |
| Side-by-Side Viewing Modes |
| GUI controlled or command line scriptable with application for set top box testing |
| HDSDI with HDMI I/O: Interface Description Page |
| Dual HDSDI IO Description Page: Dual HDSDI I/O: Interface Description Page |
| Options: |
| Perceptual Audio Metric – PEAQ |
| Perceptual Video Metrics – MOVIE, JND, MS-SSIM on both DMOS and MS-SSIM scales |
| ClearView File Importer with Optional DolbyR Digital Plus Professional Input Decoder |
| Perceptual Audio & Video Metrics (PEAQ& MOVIE, JND, MS-SSIM on both DMOS and MS-SSIM scales) |
| New for v8.4 – Waveform & Vectorscope – WFM |
| Test Patterns |
| Models: CV-S2041-QA (with HDMI) and CV-S2042-QA (Dual HDSDI model) |
| ClearView QA Solution Page |
