Players and Recorders
Uncompressed Multi-Format Video Players and Recorders
Venue Player
Venue Player DP
ClearView Player IP
4K Players with Venue Player
8K HDSDI Player
ClearView Player/Recorder 4K
When you need an Uncompressed A/V Playout Server capable of serving 4K sequences up to 60Hz with audio and VANC to your display or processing device, the ClearView Player is the device for unmatched format playback flexibility.
ClearView Player 4K Solution
Record up to 4096X2160 @ 60Hz 10 bit or Import Files
Play 4K up to 4096X2160 @ 60Hz 10 bit 4:2:2 via Quad 3G HDSDI
Benefits
- Easily create your own sequences and playlists
- Long regord time of up to 144 minutes of 4096X2160P/60Hz sequences
- Up to 518 minutes of 1920X1080P/60Hz sequences
Features
- 4K video, audio and VANC record and playback
- HDMI output for UHD formats up to 4096X2160P/60Hz 4:2:0
- Includes ClearView File Importer
Specification Links
Venue Players – Multiple 4K & 2K with SDI
Multi-format players with HDSDI programmable for multiple 2K & 4K outputs
| Models: CVVP-1044 (one 4K), CVVP-1084 (two 4K) |
| Includes ClearView Player, Venue Player & Manager |
| Multiple storage sizes per available models |
| Comparison sheet of Venue Player models |
| Ingest files via included ClearView File Importer |
| Record 2K, 4K via HDSDI as Quad or 2SI 4K format |
| Four (1044) or eight (1084) 3G HDSDI outputs |
| Play up to two 2160p50/60Hz 10 bit 4:2:2 sequences |
| Apply up to 16 channels of embedded audio per video |
| Playout start via system clock or LTC time code value |
| GUI controlled or command line scriptable |
| Option: Test Patterns |
| Option: Waveform & Vectorscope |
Venue Players – 4K or 2K with Display Ports
Multi-format players with up to four 2K or three 4K on DP
| Models: CVVP-1084-DP (1 RU), CVVP-3084-DP (3 RU) |
| Includes ClearView Player, Venue Player & Manager |
| Multiple storage sizes per available models |
| Comparison sheet of Venue Player models |
| Ingest files via included ClearView File Importer |
| Four programmable DP outputs via V |
| Play up to three 2160p50/60Hz 10 bit 4:4:4 sequences |
| Playout start via system clock or application command |
| Nvidia multi-output sync on 3084-DP model |
| GUI controlled or command line scriptable |
| Option: Test Patterns |
| Option: Waveform & Vectorscope |
ClearView Player IP
1RU, 10 Gigabit I/O with 2 SPF slots for SMPTE-2022-6/7
| Models: CVP-1012-IP-2, CVP-1012-IP-4 |
| 1.8 or 3.8 terrabytes of storage |
| Uncompressed HD recorder/player |
| Single record or dual program play up to 1080p50/60Hz |
| Sixteen channel audio and full VANC record and play |
| A selection of preloaded video test sequences available |
| Includes ClearView Player & ClearView File Importer |
| GUI controlled or command line scriptable |
| Option: Test Patterns |
| Option: Waveform & Vectorscope |

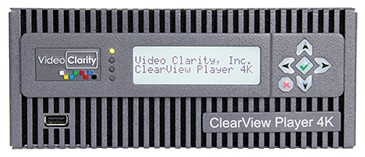

Portable Player Models – with 10G IP or 4K
Quad/HD 4K, HDMI, with Venue Player and ClearView Player-Recorder
Or 10 Gigabit IP IO Model for HD with ClearView Player-Recorder
| 4K Models: CVVP-2044 and CVVP-2044-5 with ClearView Player, Venue Player & Manager |
| HD IP Models: CVP-2043-IP and CVP-2043-IP-5 with ClearView Player application |
| Models have 2.5 or 5 TB Storage |
| Small portable uncompressed recorder/player |
| 4K model IO up to 2160p50/60Hz 10 bit 4:2:2 (Quad or 2SI) |
| 10G IP model IO up to 1080p60Hz, in SMPTE-2022-6/7 |
| Sixteen channel audio and full VANC record and play |
| Preloaded uncompressed video sequences |
| All models include ClearView File Importer |
| GUI controlled or command line scriptable |
| Options: Test Patterns, Waveform & Vectorscope |

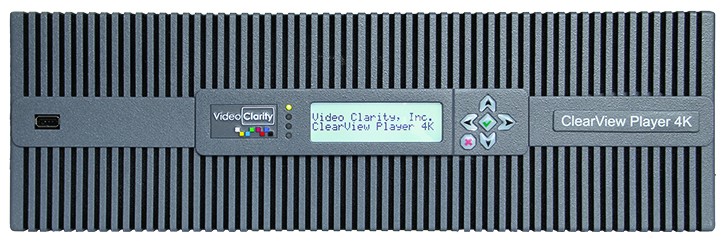

ClearView Player 4K – High Capacity Server
3RU Rack Mount, 4K Dual Quad/HDSDI & HDMI with CV-Player, Venue Player & Manager
ClearView Player IP Model with 4K HDSDI and HD IP Interfaces and CV-Player Application
| Models: CVVP-3084-4K-12, CVVP-3084-4K-24 with ClearView Player, Venue Player & Manager |
| IP Models: CVP-3084-IP-12, CVP-3084-IP-24 with ClearView Player application |
| Dual Quad 3G HDSDI 4096X2160p60 4:2:2 10 bit |
| One (CVP) or two (CVVP) 4K sequence playback on Quad 3G HDSDI outputs, each up to 4096X2160p60 10 bit 4:2:2, or 4K plus 4 different HD & SD formats |
| One or two 4K playback on two HDMI 2.0b outputs, both up to 4096X2160p60 8 bit 4:2:0 (Supports Quad or 2SI format) |
| Single record on Quad 3G HDSDI up to 4K/60Hz or SMPTE-2022-6/7 with 10G IP |
| Eight channel audio and full VANC record and play |
| Preloaded uncompressed video sequences |
| All models include ClearView File Importer |
| GUI controlled or command line scriptable |
| Option: Test Patterns |
| Option: Waveform & Vectorscope |
| Further Information Links |

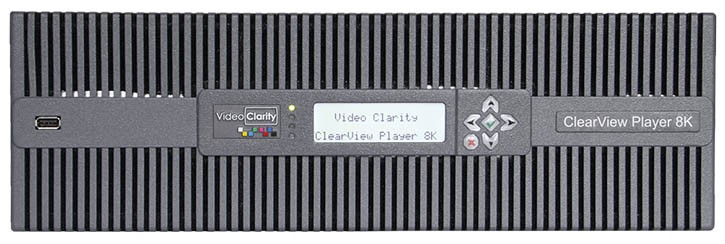

ClearView Player 8K – High Capacity Server
– 8K Recorder-Player with 16 3G HDSDI
3RU Rack Mount, also Dual Quad/HDSDI 4K Playback
| Models: CVVP-3088-8K-16 or -32 with ClearView Player, Venue Player & Manager |
| Models carry 16 or 32 TB of storage |
| 16 3G HDSDI video interfaces with embedded audio |
| Single 8K sequence playback or record on 16 3G HDSDI, 7680x4320p60 4:2:2 10 bit |
| Two 4K sequence playback on Quad 3G HDSDI, both up to 4096X2160p60 10 bit 4:2:2 (Quad or 2SI format) |
| Single record of 4K, HD of SD formats on HDSDI |
| Sixteen channel audio and full VANC record and play |
| All models included ClearView File Importer |
| GUI controlled or command line scriptable |
| Option: Test Patterns |
| Option: Waveform & Vectorscope |
| Further 8K Player Information and Specifications |
