AVC/H.264 Full HD Dual Channel / 4K Contribution Encoder

XVE9310

Key features

• Supports AVC/H.264 HDTV/SDTV 2ch Encoding
• 4K Contribution by cascading two sets of XVE9310s
• Supports Full HD Stereoscopic 3D Contribution
• Low Latency Mode (Minimum Latency 1 Frame)
• Compressed Audio for Super Low Latency
• Multiple Video Format Compatibility including
• 1080i, 1080p, 720p, 576i, 480i, 1080p50, 1080p59.94, 1080p60
• Phase Aligned Audio
• Embedded Audio Features up to 8ch/4PES

  • MPEG-1 LayerⅡ : Stereo x 4
  • MPEG-2 AAC/MPEG-4 AAC/HE-AAC: 5.1+Stereo
  • Multiple Audio Format Support up to 8ch/4PES Combinations
• Closed Caption: CEA-608, CEA-708, ARIB STD-B37
• Ancillary Data Transmission Support: Time Code, SMPTE RDD11, SMPTE2038, ARIB TR-B22, TR-B23, OP-47
• Supports Satellite Carrier ID
• Seamless Protection Switching with MVD5000, HVD9130 combination (* Decoder optional)
• Seamless Bit Rate Change
• TS Over IP Support with FEC
• Supports DHCP
• Easy Operation from Front Panel Display with Control Buttons as well as SNMP and WEB GUI via IP Network
• Supports BISS-1/E
• Quick Boot-up (23sec)
• Redundant Power Supply
• RoHS Compliant

Front/Rear Panel

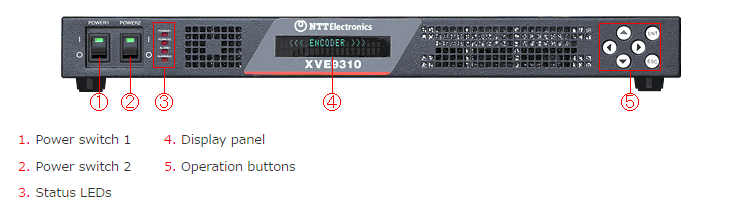

XVE9310 : Front panel

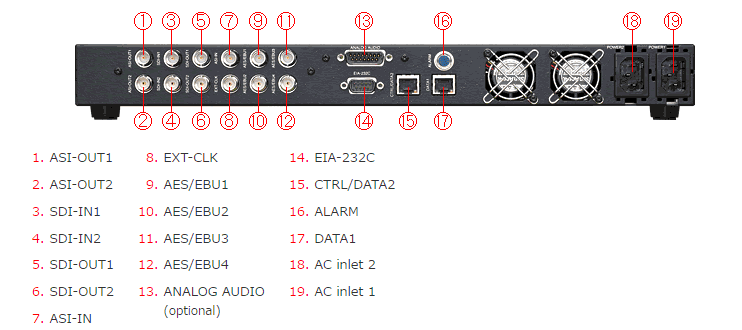

XVE9310 : Rear panel

Specifications

Supported Standards

System	ISO/IEC13818-1 (MPEG-2 SYSTEM TRANSPORT STREAM)
Video	ISO/IEC14496-10 (MPEG-4 AVC/H.264)
Audio	ISO/IEC11172-3 (MPEG-1 AUDIO LayerⅡ) ISO/IEC13818-7 (MPEG-2 AAC) LC Profile ISO/IEC14496-3 subpart 4 (MPEG-4 AAC) LC Profile ISO/IEC14496-3 Amendment 1 (MPEG-4 HE-AAC v1) ISO/IEC14496-5:2001 Amendment 24 : 2009 (MPEG-4 AAC-ELD) ATSC-A52B (Dolby Digital) SMPTE302M-2002

Video Specifications

Video Format	1080I (1920/1440/1280/960x1080) @25Hz, 29.97Hz, 30Hz : SMPTE274M 1080P (1920/1440/1280/960x1080) @23.98Hz, 24Hz : SMPTE274M 1080P (1920/1440/1280/960x1080) @29.97Hz, 30Hz : SMPTE274M 1080P (1920/1440/1280/960x1080) @50Hz, 59.94Hz, 60Hz : SMPTE274M *4:2:0 only 720P (1280x720) @50Hz, 59.94Hz, 60Hz : SMPTE296M 480I (720/352x480) @29.97Hz : SMPTE125M 576I (720/352x576) @25Hz : ITU-R BT.656-4
Profile/Level	AVC/H.264	Profile : Main, High, High4:2:2 (8bit) Level : 4.2/4.1/4.0/3.2/3.0 Entropy : CABAC/CAVLC
	MPEG-2	-
Video Input	SMPTE424M/SMPTE292M/SMPTE259M BNC x 2 lines (0.8Vp-p 75Ω)
Video Through Output	SMPTE424M/SMPTE292M/SMPTE259M BNC x 2 lines (0.8Vp-p 75Ω)
GOP Structure	AVC/H.264	M=1 to 3, N=1 to 30
	MPEG-2	-

Audio Specifications

Audio Input	AES/EBU (8ch) : BNC x 4 lines (1 Vp-p 75Ω) Embedded Audio (SDI1 8ch) : SMPTE299M, SMPTE272M Embedded Audio (SDI2 8ch) : SMPTE299M, SMPTE272M Analog (4ch) : D-SUB 15Pin (20KΩ, balanced)
Encoding Channels	AES max. 8ch, Embedded max. 8ch, Analog max. 4ch (Selectable for each stereo)
Encoding Method	MPEG-1 L2 (1ch(Mono), 2ch(DualMono), 2ch(Stereo)) max. 4PES MPEG-2 BC (1ch(Mono), 2ch(DualMono), 2ch(Stereo)) max. 4PES MPEG-2 AAC-LC (1ch(1/0), 2ch(1+1), 2ch(2/0), 4ch(4/0), 5.1ch(3/2/1), 6ch(6/0)) max. 2PES MPEG-4 AAC-LC (2ch(2/0), 5.1ch(3/2/1)) max. 2PES MPEG-4 HE-AACv1 (2ch(2/0), 5.1ch(3/2/1)) max. 2PES MPEG-4 AAC-ELD (2ch(2/0), 4ch(3/1),5.1ch(3/2/1)) max. 2PES Dolby Digital (1ch(Mono), 2ch(Stereo)) max. 4PES SMPTE302M (2, 4, 6, 8 ch) max. 4PES
Sampling Frequency	48kHz
Sampling Bit	16bit (MPEG-1, MPEG-2 BC, MPEG-2/4 AAC, MPEG-4 HE-AAC, MPEG-4 AAC-ELD, Dolby Digital), 16/20bit (SMPTE302M)
Bitrate	128/192 kbps (MPEG-1, MPEG-2 BC 1ch) 128/192/256/384 kbps (MPEG-1, MPEG-2 BC 2ch) 128/192 kbps (MPEG-2 AAC-LC 1ch) 128/192/256/320/384 kbps (MPEG-2/4 AAC-LC 2ch) 320/384/480/512/640 kbps (MPEG-2/4 AAC-LC 4ch, 5.1ch, 6ch) 64/96/128 kbps (MPEG-4 HE-AAC 2ch) 128/192/256 kbps (MPEG-4 HE-AAC 5.1ch) 128/192/256 kbps (MPEG-4 AAC-ELD 2ch) 256/384/512/640 kbps (MPEG-4 AAC-ELD 4ch, 5.1ch) 64/80/96/112/128/160/192/224/256/320/384/448/640 kbps (Dolby Digital 1ch) 96/112/128/160/192/224/256/320/384/448/640 kbps (Dolby Digital 2ch )
Pass Through	Dolby E external encoder delay absorption function (0 to 2 frames)
Audio ch Control	ARIB STD-B39

Ancillary Data

Data Type	TIMECODE, SMPTE334M, SMPTE2038, ATSC A /72, ARIB TR-B22, ARIB TR-B23, ARIB STD-B37

Internal Test Signal

Video: Color Bar, Audio: 1kHz Sine wave

TS Specifications

Output Interface	DVB-ASI : BNC x 2 lines (0.8Vp-p 75Ω)
	IP	100Base-TX/1000Base-T (RJ-45) x 2 lines (Category 5/5e/6) RTP/UDP/IP (RFC1889), FEC (Pro-MPEG COP#3 R2 method)
External Clock Input	Max. 160.000MHz (ARIB STD B-18 clock input compliant) BNC x 1 line (0.8Vp-p 75Ω)
Stream Type	TS (188/204byte : No Reed-Solomon)
Max. Multiplicity	Video 1, Audio max. 8, Ancillary Data max. 3, Total 12
Maximum TS Rate	160.000Mbps (internal setting in 1 kbps units)

Control Specifications

Local Control	FL display (20 digits x 2) + operator switches (6 buttons)
Remote Control	LAN 100Base-TX/1000Base-T (RJ-45)
Maintenance I/O	LAN 100Base-TX/1000Base-T (RJ-45) (joint use with remote control)
Alarm Output	Buzzer(volume adjustable), relay contact outputs (2 NO/NC contacts)
External Reset	System reset by relay contact input (1 NO contact)
Device Monitor Control	SNMPv1, WEB Based GUI

Other

TS encoding	BISS-1/E
Dimensions (mm)	44(H) x 432(W) x 460(D) (w/o Connector, Foot, Rack mount bracket)
Weight (typical)	6kg
Power Source	AC100V to 240V, 50/60Hz
Power Consumption	70W max.
Operating Environment	0 to 45℃ , 30 to 90% (condensation not allowed)
RoHS Compliant	This product is RoHS compliant
