HVE9200
AVC/H.264 HDTV/SDTV Encoder

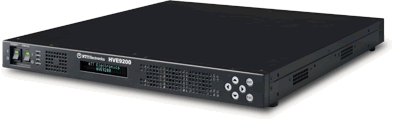

HVE9200
HVE9200 is an AVC/H.264 HDTV/SDTV Encoder which inherits its high image quality and performance from the HV9100 series.
HVE9200 has greatly enhanced ultra-low codec latency of 33msec performance and newly supports low bit rate to transfer SDTV image at 1.5Mbps and HDTV image at 3Mbps.
You may now enjoy from "face to face" dialogues without disturbances of longer time-lag to transmitting contribution video materials with high picture quality with one unit.
Key features
- Low Bit Rate Encoding
- Super Low Latency (1 Frame)
- Redundant Power Supply
- Multiple video format compatibility including
- 1080i, 1080p, 720p, 576i & 480i
- State-of-the-art performance of Award-winning HV9100 Series (High4:2:2 Profile)
- Multiple Audio Format Support up to 4 x PES
- TS Over IP Support with FEC (COP#3)
- User Friendly Front Panel Operation
- Easier Network Maintenance with Built-In SNMP Functionality and Web based GUI
- Support BISS-1/E (optional)
- Quick Boot-up (15sec)
- RoHS Compliant
- Closed Caption (Future Release)
Application
- SNG
- FPU
- Real-time Monitoring
- IP
Front/Rear Panel

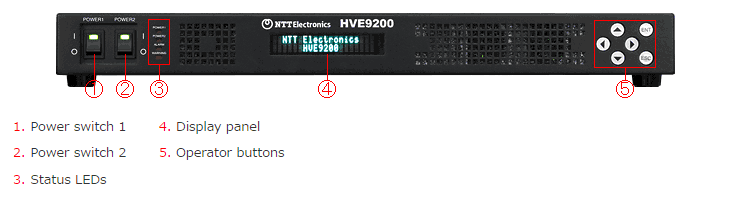

HVE9200 : Front panel
HVE9200 : Rear panel
Specifications
| Category | Item | Specification |
|---|---|---|
| Video | Input Format | HD-SDI (SMPTE292M) SD-SDI (SMPTE259) |
| Encoding Format | MPEG4 AVC/H.264 | |
| Profile / Level | Profile: High422 (8bit), High, Main Level: 4.1/ 4.0 / 3.2 / 3.0 | |
| Video Format | 1080i: 1920 / 1440 / 1280 / 960 x 1080 1080p: 1920 / 1440 / 1280 / 960 x 1080 (optional) 720p: 1280 x 720 576i: 720 / 352 x 576 480i: 720 / 352 x 480 |
|
| Frame Rate | 1080i: 25 / 29.97/ 30 (SMPTE274M) 1080p: 23.96 / 24 (SMPTE274M) (optional) 720p: 50 / 59.94 / 60 (SMPTE296M) 576i: 25 (ITU-R BT.656-4) 480i: 29.97 (SMPTE125M) |
|
| Audio | Input Format | Embedded Audio: 8ch (SMPTE299 / 272M) AES/ EBU: 8ch Analog Audio: 4ch (optional) |
| Encoding Format | MPEG-1 LayerΙΙ (1ch / 2ch) MPEG-2 BC (1ch / 2ch) Dolby Digital (1ch / 2ch) (optional) SMPTE302M (2ch /4ch / 6ch / 8ch) {Max. 4PES up to 8ch} MPEG-2 AAC-LC (1ch / 2ch /4ch / 5.1ch / 6ch) MPEG-4 AAC-LC (2ch / 5.1ch) (optional) MPEG-4 HE-AACv1 (2ch / 5.1ch) (optional) {Max. 2PES up to 8ch} |
|
| Ancillary Data | Data Type | TIMECODE, SMPTE334M, ARIB B22/B23 |
| System | Output Stream Type | MPEG2-TS (188 / 204 byte) |
| Output Interface | DVB-ASI, IP (optional) | |
| Max. Output Rate | HDTV 160Mbps/SDTV 50Mbps | |
| Internal Test Signal | Video: Color Bar Audio: 1kHz Sine wave |
|
| Control | Local Operation | Power ON/OFF, Front Control Key |
| Remote Operation | SNMP, Web-GUI | |
| Dimensions | W432 x D460 x H44 (mm) | |
| Weight | 6kg | |
| Power Source | AC 100 - 240V, 50Hz / 60Hz | |
| Power Consumption | 60W | |
| RoHS Compliant | This products is RoHS compliant | |
- Features and specifications are subject to change without prior notice.
- DolbyR is a trademark of Dolby Laboratories.
