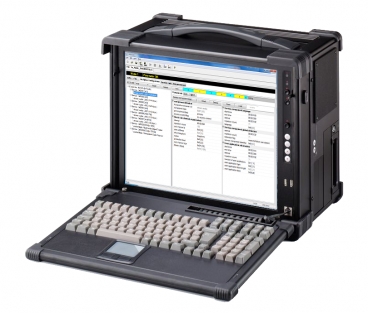

DAB Test and DAB+ Test Studio and Generator

DAB Test Studio is the integrated in equipment which can analyze ETI files, modifying and transmitting immediately.

DAB, DAB+ ETI Analyzer, Editor, RF Generator unified and support all DAB radio broadcasting specifications)DAB Test Studio support creating, deleting and modifying functionality in ETI files for DAB Test and DAB+ Test. Also, It is possible to editing, creating the new xml files with FIC(Fast Information Channel) and MSC(Main Service Channel): DAB Test, DAB+ Test, DMB Test DAB Test Studio can be used for development and Quality Control.

Key Features

• DAB All Character set support
  - EBU Latin, UTF-8, UTF-16 support
• DAB, DAB+/DMB ETI Analsis
• DAB, DAB+/DMB ETI Edit:
  (DAB Test, DAB+ Test, DMB Test)
  - FIC DATA Edit(MCI, SI, Service Link Test, Announcement Test and EWS Test)
  - MSC DATA Edit(Sub channel Data, Audio Data, MOT, DLS/DL+, SLS, Intelitext and BWS and EPG)
• DAB, DAB+/DMB ETI Generating:
• Edited ETI Direct Generating and save to Xml type
• Ensemble Reconfiguration Test
• Real time Analyzing, Editing and Generating support
• Auto test support with Ethernet

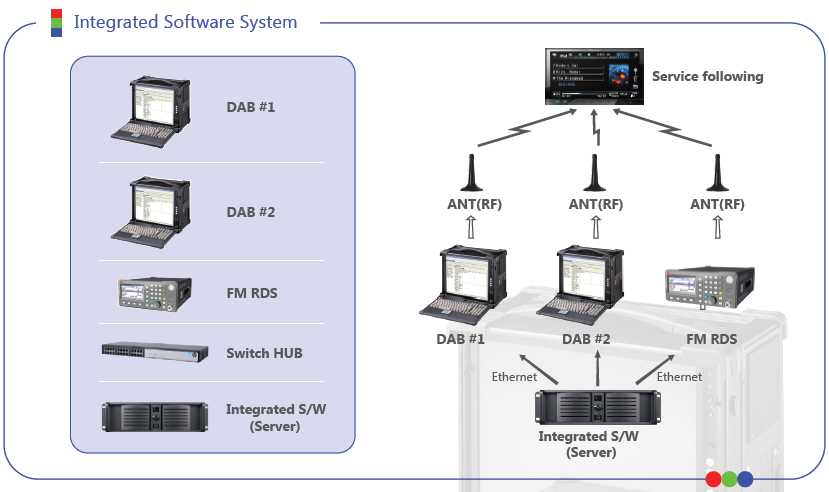

• Integrated Software System
• Service Link TEST
• DAB to FM RDS Test
• FM RDS to DAB+ Test
  - Support of all case
• DAB All Character set support
  - EBU Latin, UTF-8, UTF-16 support
• DAB, DAB+, DMB ETI Analsis
• DAB, DAB+, DMB ETI Edit:
  (- DAB Test, DAB+ Test, DMB Test)
  - FIC DATA Edit(MCI, SI, Service Link, Announcement and EWS)
  - MSC DATA Edit(Sub channel Data, Audio Data, MOT, DLS/DL+, SLS, Intelitext and BWS and EPG)
• DAB, DAB+, DMB ETI Create and Generating:
• Edited ETI Save and Direct Generating
• Ensemble Reconfiguration
• Real time Analyzing, Editing and Generating support
• Auto test support with Ethernet
• Integrated Software System
• Service Link TEST(Service following Test)
• DAB to FM RDS
• FM RDS to DAB+
  - Support of all case

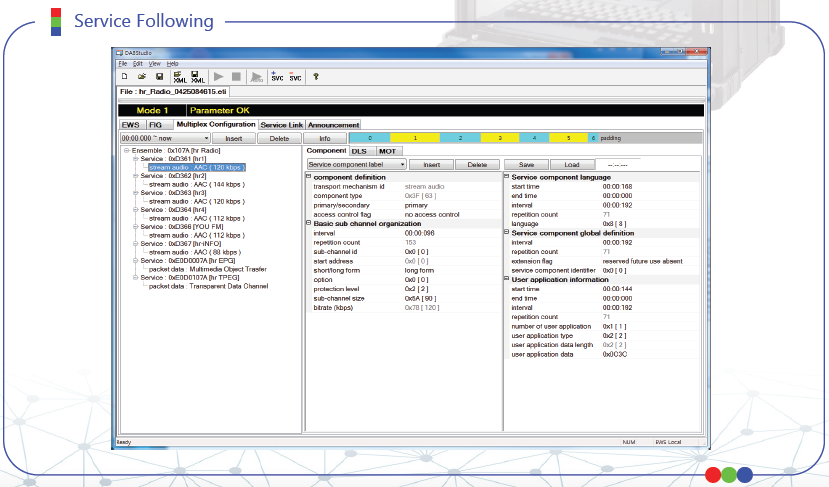

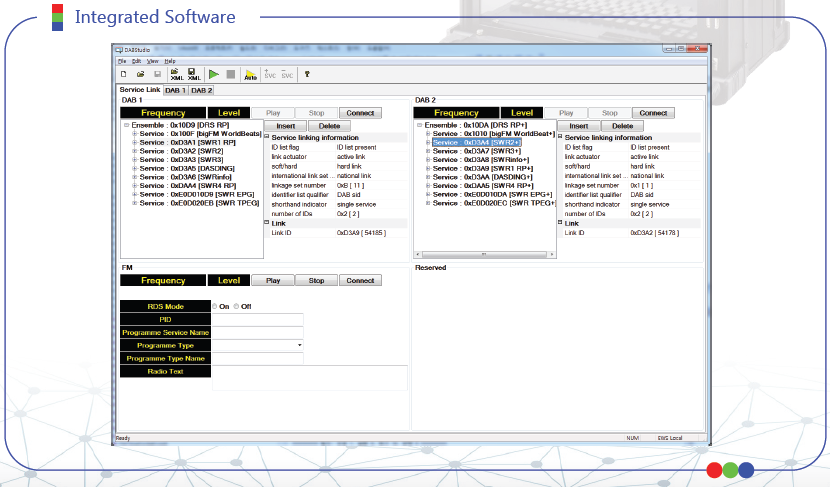

User Interface

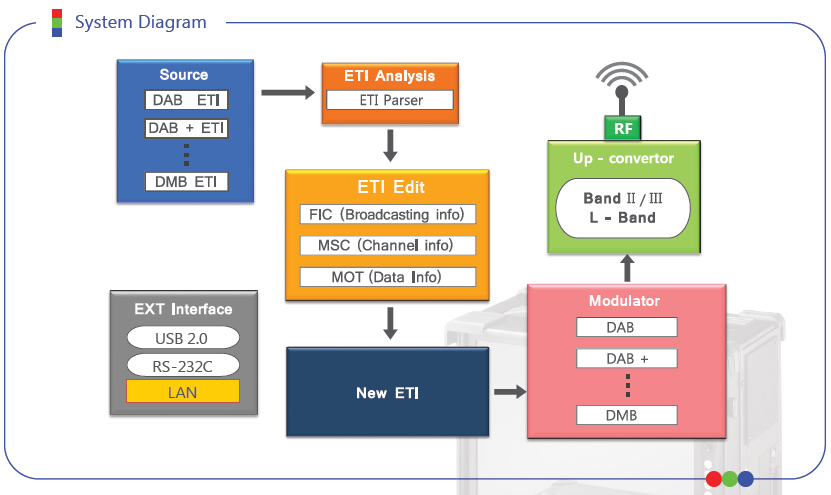

System Diagram

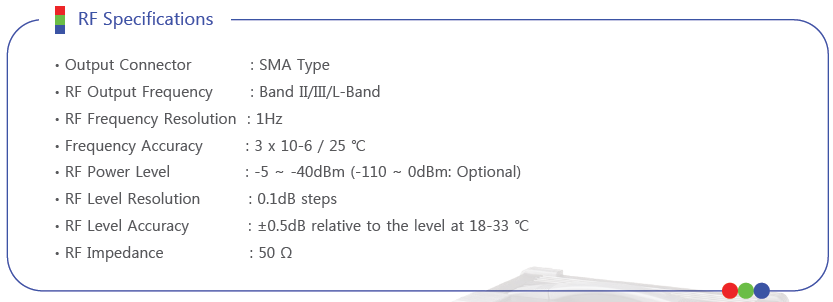

RF Specifications
