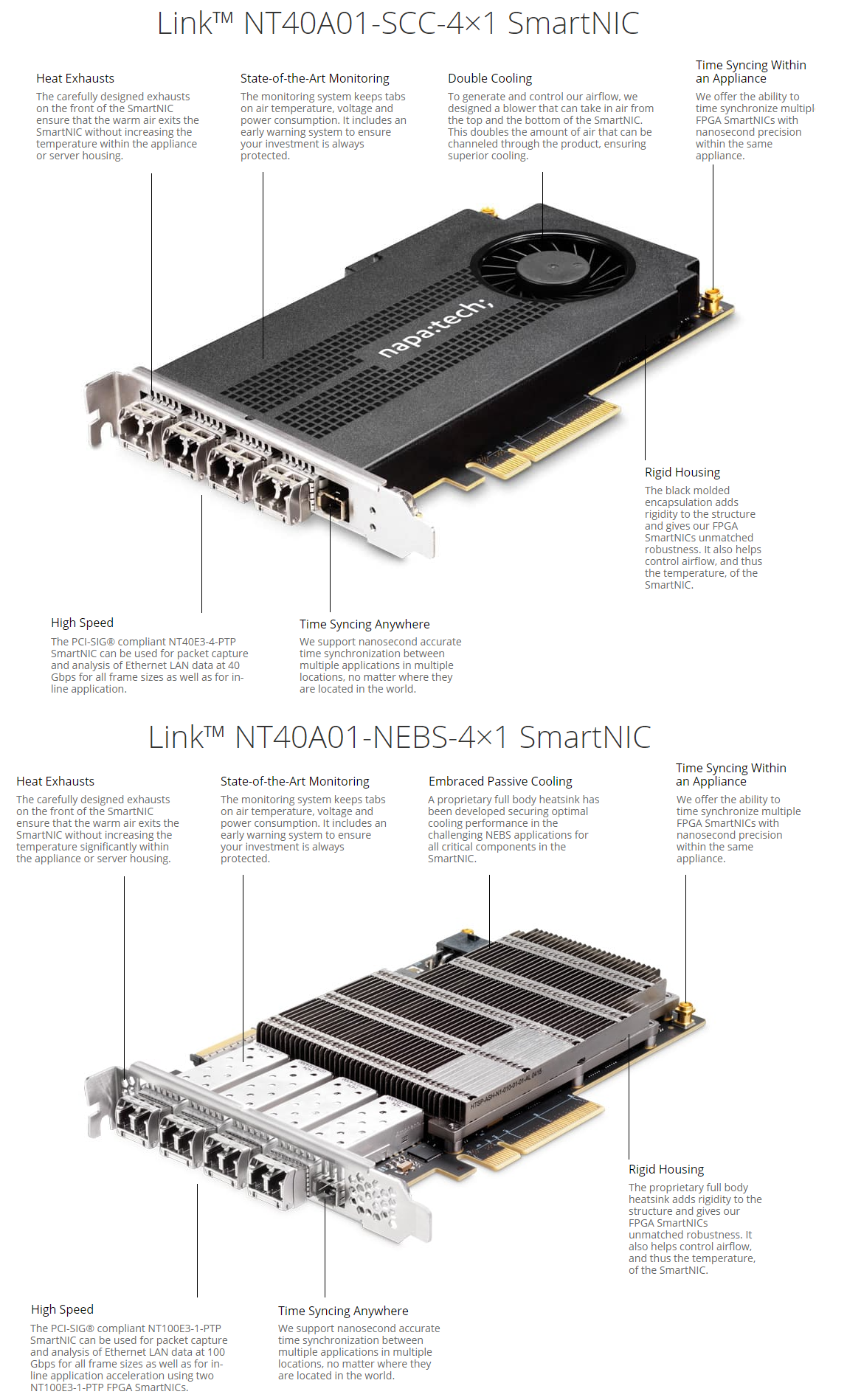

Napatech NT40A01
4-PORT 1G PCIE GEN2

4 Gbps PACKET CAPTURE AND ANALYSIS

The NT40A01 accelerator provides full packet capture and analysis of Ethernet LAN at 4 Gbps with zero packet loss for all frame sizes. It allows real-time data from multiple points in the network to be captured and merged into a single analysis stream. Transmit or replay of Ethernet traffic at 4 Gbps is provided with full transmission control. NT40A01 can also be used for in-line application acceleration.

Intelligent features for flow identification, filtering and distribution to up to 32 CPU cores accelerate application performance with extremely low CPU load.

Flexible time synchronization support including onboard IEEE 1588-2008 (PTP v2) software PTP stack with dedicated PTP port.

FEATURE HIGHLIGHTS

4 x 1 Gbps SFP connections
Full 4 Gbps capture & replay of Ethernet LAN
Full 4 Gbps transfer to host
300 ms of onboard data burst buffering
Typical CPU load: 5%
GTP and IP-in-IP tunneling support
Onboard IEEE 1588-2008 support with dedicated

PTP port

Frame processing with dynamic and conditional slicing and deduplication
Frame and flow filtering
4 ns time-stamping
GPS, CDMA and IEEE 1588 time synchronization
Identification and distribution of IP fragments
10 ns control of IFG for transmitted frames
Synchronized transmission across accelerators
Easy-to-integrate API

NAPATECH-SUPPORTED APPLICATIONS

Napatech accelerators enable OEM vendors to build high-performance network appliances based on standard servers. Examples of applications include:

Revenue and services optimization
Quality of experience optimization
Telecom network management
Network behavior simulation
Financial latency measurement
Customer experience analysis
Data loss prevention
Virtualized activity analysis
Cyber defense
Infrastructure management and security
Network and application performance
Troubleshooting and compliance

SPECIFICATIONS

GENERAL FEATURES

Full line-rate processing for all frames from 64 bytes to 10,000 bytes
IEEE standard: IEEE 802.3 1 Gbps Ethernet support
Pluggable options for IEEE 1588-2008, PPS and NT-TS time synchronization
Packet Delay Variation (PDV) filter for PTP
Physical interface: 4 SFP ports
Supported SFP modules: Multi-mode SX (850 nm), singlemode LX (1310 nm), single-mode ZX (1550 nm), 1000BASE-T or 10/100/1000BASE-T
Data rate: 4 x 1 Gbps
PCIe performance: 25 Gbps full-duplex
Typical CPU load: 5%
Time formats: PCAP-ns/-μs, native, NDIS 10 ns/100 ns, UNIX 10 ns
PTP master and slave in IEEE 1588-2008 default profile
PTP slave in IEEE 1588-2008 telecom and power profiles

HOST INTERFACE

Data transfer modes:
Bus master DMA
Memory write or memory read transactions
Bus type: 8-lane 5 GT/s PCIe Gen2 REGULATORY APPROVALS AND COMPLIANCES
CE, CB, RoHS, REACH, cURus (UL), FCC, CSA, VCCI, C-TICK

ACCELERATOR SOFTWARE

Supported operating systems
Linux
FreeBSD
Windows
API supporting user level applications
libpcap and WinPcap support
Software PTP stack
SDK tools included in source code for debugging and prototyping and as examples of how the accelerators are used
