Standard Features:

QPSK Modulator and UHF Up-converter, supports DVB-S2, DVB-S & DVB-DSNG.
Re-Mux function to reduce bitrate for trans-modulation.
On board Compact Flash Memory to play Transport Streams without a need for an external source.
Stand alone operation. No PC needed. Modulation of TS files from On Board CF or External DVB-ASI source.
High Speed USB 2.0
Windows XP, Vista, Windows 7 ( 64bit ) Drivers + SDK.
Accompanied by DVSStation4 Alitronika's Application Software.
Supports DVB According to Standard A1010 Rev1 and EN50083.
Modulation of Transport Stream files from Hard disk.
Modulation of Transport Stream from an external source via DVB-ASI input.
All modulation processes are carried out by the hardware so that there is no load on the PC processor,
   So there is no need for an expensive high performance PC.
Supports Burst or continuous modes, 188 and 204 packet sizes.
Interfaces
RS232 for control of Settings & Parameter.
US2.00 for both Settings & Data transfer.
Input
DVB-ASI input.
Output
RF Output.
IF (I) & (Q) Output.
DVB-ASI output for monitoring the modulated TS file.
Modes of operation
USB Mode
In this mode the AT3900USB operates just as a standard USB based device. The Modulation and IF/RF parameter can be set via the application software, DVSStation4. The Transport Streams could be entering the device via the USB interface or via an external DVB-ASI source.
A Re-Mux function could be used to Filter out unwanted PIDs to reduce the bitrate of the TS file or the Incoming DVB-ASI Transport Streams.
Stand alone Mode
In this mode the device no longer requires a PC for its operation. Any Transport Streams from the DVB-ASI input is modulated according to the parameters set by the user. The modulation, If & RF parameters are stored on the on board memory of the AT3900USB. These parameters could changed by the user ant any time via the USB or RS232 interfaces.
If there are no incoming DVB-ASI streams, the device modulates from the TS files recorded on its ON BOARD COMPACT FLASH memory.
In this mode of operation, it is possible to have UNINTERRUPTED modulations of  a MPEG Transport Streams, having RF ( 950 to 2150MHz ), IF ( both I & Q ) & DVB-ASI outputs available at the SAME TIME, 24 Hours a day, 7 days a week without a PC.

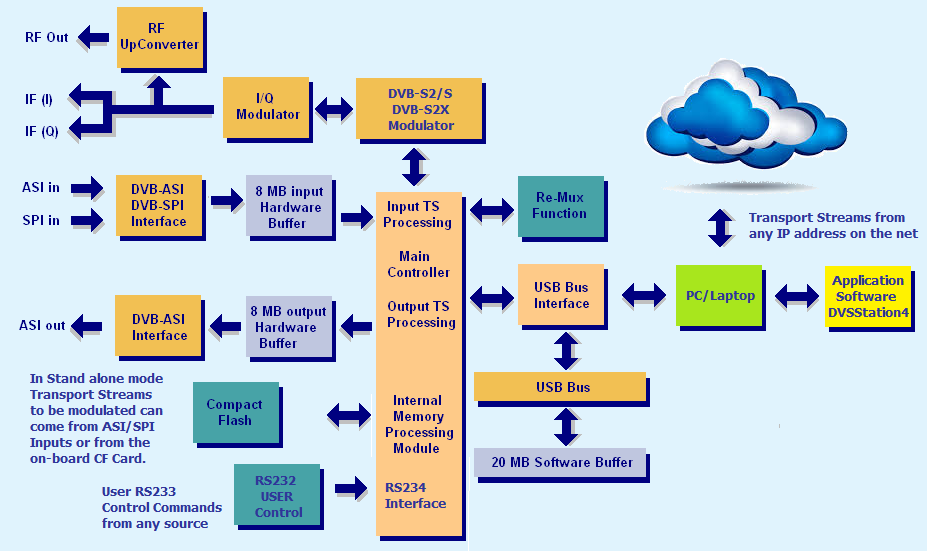

Block Diagram:

Connections:

Application:

Targeted for Digital Video Professionals, Sophisticated End Users and OEMs
the AT3900USB is an ideal solution for a number of applications such as:
Development Tools for DVB-S2/S Receiver R&D.
IP to DVB Gateway.
DVB-S2/S Transport Stream Generation.
Stand alone QPSK signal generator for Test & Validation.
Demonstration and Trade Shows.
DVB-S2/S output for OEM product.

Specification:

On Board Buffer:16 Mbytes.
IF Connector:75 Ohms BNC.
IF Output Frequency:49-51 MHz or 99-101MHz adjustable in 1Hz steps.
IF Output Power over bandwidth: -10dBm.
RF Connector:75 Ohms F-Type.
RF Output Frequency Range:950MHz to 2150MHz.
RF Output Power over bandwidth:-10dBm to -45dBm, adjustable in 0.5dB steps.
DVB modes: DVB-DSNG, DVB-S, DVB-S2 and DVB-S2X.
Spectral modes: inverted and non-inverted.
DVB-S Mode:
Alpha rolloff: 0.35.
Modulation Modes: QPSK.
FEC Code Rates: 1/2, 2/3, 3/4, 5/6 and 7/8.
Symbol rate: up to 45 MSymbols/s.
Bitrate: up to 72.574 MBit/s. In Stand Alone mode bitrate is limited to 50MBit/s.
DVB-S2, DVB-S2X Mode:
Alpha rolloff: 0.20, 0.25 and 0.35.
Modulation Modes: QPSK, 8SPK, 16APSK and 32APSK.
FEC Code Rates: 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9 and 9/10.
Symbol rate: up to 45 MSymbols/s.
Bitrate: up to 200.385 MBit/s. In Stand Alone mode bitrate is limited to 50MBit/s.
DVB-DSNG Mode:
Alpha rolloff: 0.20, 0.25 and 0.35.
Modulation Modes: 8SPK and QAM16.
DVB-ASI Input/Output Connectors:75 Ohms BNC.
DVB-ASI Output Signal level:1.0Vp-p nominal.
DVB-ASI Output Clock: 270 MHz.
DVB-ASI Input return loss: 15dB.

Application Software:

DVSStation3/4/IP: Alitronika devices are supported by DVSStation3/DVSStation4 or DVSStationIP, Alitronika's FREE Transport Stream Player, Recorder, Analyser and converter application software. Please refer to the specification and User Manual of these applications for more information. Even better please download them from our website and try them out. They works in DEMO mode without any Alitronika devices.

Play Screen=> In normal operating conditions

Record Screen => In normal operating conditions

DVB-S Settings

DVB-S2 PLS Codes

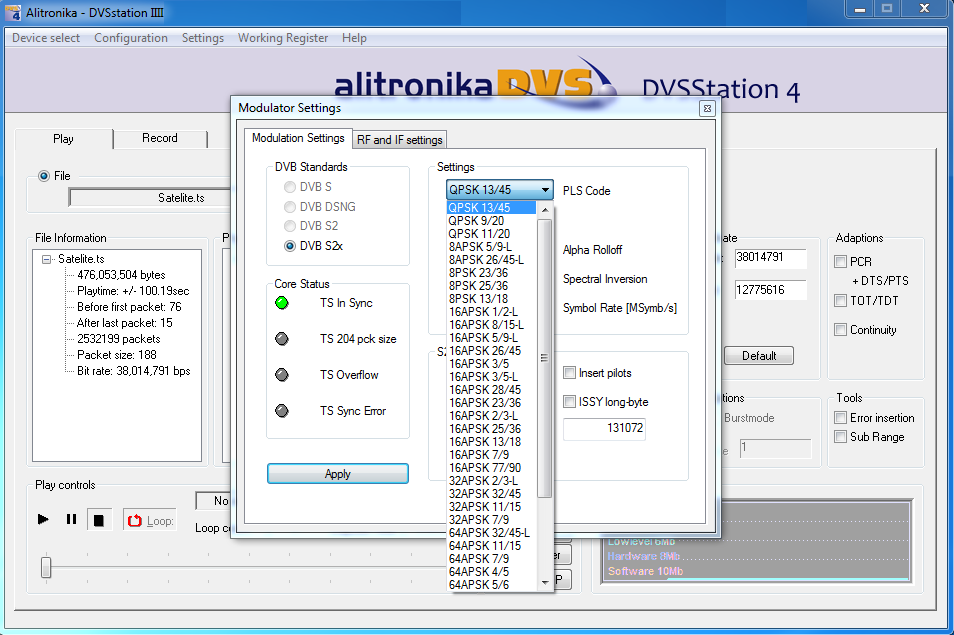

DVB-S2X PLS Codes

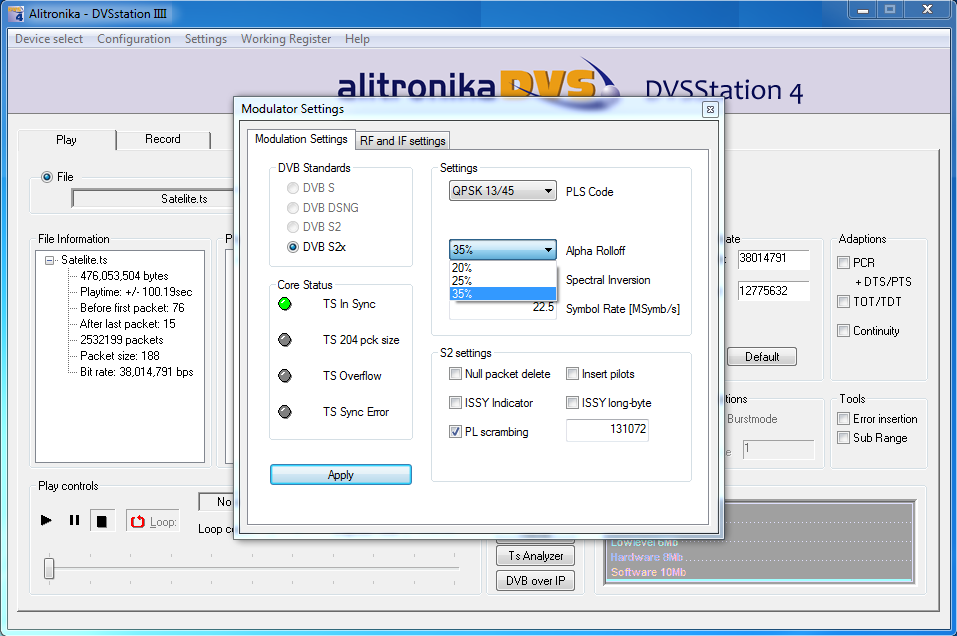

Alpha Roloff Settings

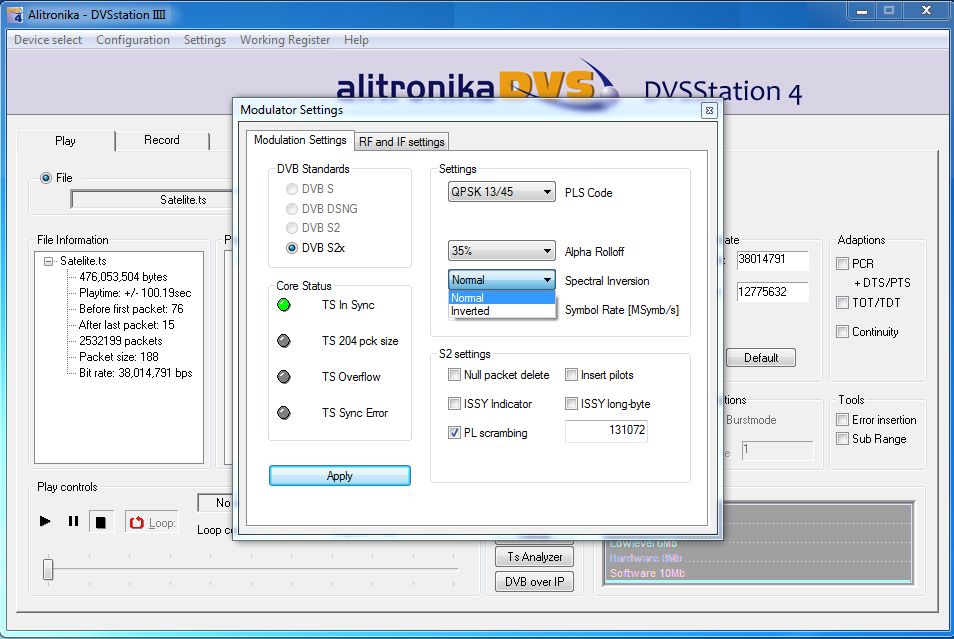

Spectral Settings

Rf Settings

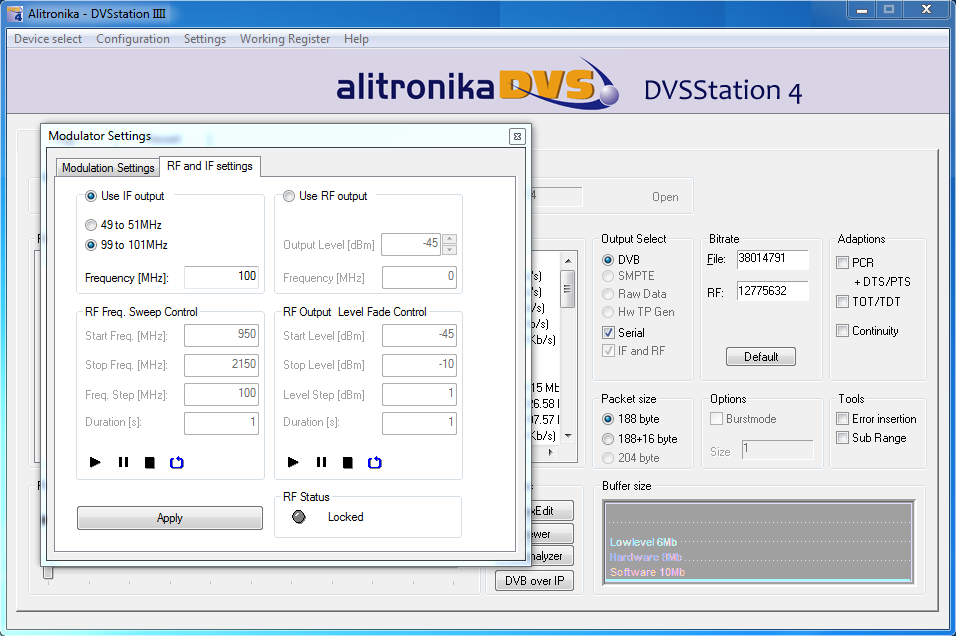

IF output frequency is selectable between 50MHz & 100MHz

The application software provides the user with many functions & features such as :

PID Filtering

Bit, Byte & Packet error insertion

TOT & TDT selection

PlayBack in loops, sub-loops.......

Hardware Working Regiters are accessable for monitoring

Among the "Goodies" are a Video Viewer

Hex Editor

A DVB to IP Player/Converter

As well as the Integrated Quick TS Analyzer, TSReader support these devices.

Accessories

Accessories: The AT3900USB is delivered with the following items, 2 power supply units, a power cord, a USB cable, a 4MB CF card, a CF card reader, a set of 3 different RF adaptors.
