MiniCore 5G

    一套提供完整5G/LTE/IMS以及GSM/GPRS核心网路的测试与研究解决方案。

    它结合了YateHSS / HLR (AUSF / UDM)，YateUCN (SMF / UPF) 和YateNRF，可实现所有行动网路技术的全部功能。

    这种高经济效益的解决方案为满足旨在实施5G技术的移动网路运营商和虚拟网路运营商的需求。


    MiniCore5G 完整提供对以下核心网路技术：

  • 5G
  • IMS
  • LTE EPC
  • GSM/GPRS

    • 特性

  • 通过MMI管理界面设置/编辑移动网路和组件选项

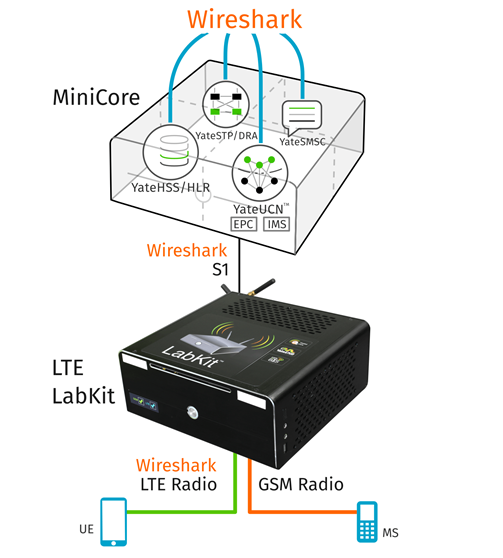

  • 透过Wireshark抓取组件之间的通信，包括解密的IMS流量
  • 支援JSON API与任何SIM管理和CRM系统集成
  • 支援发送短信的JSON和REST API
  • 可以使用5G CAPIF，SIGTRAN / SS7和Diameter进行信令测试
  • 支持IPv4，IPv6和非IP协议
  • 既可以独立工作，也可以与外部组件一起串接连线

    • 通讯协议支援项目
    MAP/SS7/SIGTRAN M2PA or M3UA-ASP over SIGTRAN, SCTP (CRC32)
    ITU TCP, ETSI MP v3
    ITU or ANSI SCCP and SS7 MTP
    E.164, E.212 (ANSI), E.214 (ITU),TT or PC SCCP addressing
    Can connect to multiple STP/GW
    CAMEL phase 2
    Diameter 3GPP Applications S6a/S6d, Cx/Dx
    SCTP or TCP transport
    Can establish or listen for connections
    Can connect to multiple Routing Agents
    MAP/SS7/SIGTRAN M2PA or M3UA-ASP over SIGTRAN, SCTP (CRC32)
    ITU TCP, ETSI MP v3
    ITU or ANSI SCCP and SS7 MTP
    E.164, E.212 (ANSI), E.214 (ITU),TT or PC SCCP addressing
    Can connect to multiple STP/GW
    CAMEL phase 2
    HTTP JSON API server for conguration and subscriber management
    JSON API for monitoring and information retrieval
    REST API client for visited network change notication
    JSON and REST API for sending SMSg
    SNMP SNMP v2 or v3 for information retrieval
    Traps sending for alarms
    Telnet Management CLI for each component
    Optional SSL and password protection
    Voice interconnect SIP and RTP
    G711, GSM and AMR codecs
    SIP Supported standards (RFC3261)
    Registrar function
    B2BUA for calls
    RTP (RFC3550) with sideband DTMF (RFC2833)
    SMS and USSD over IP
    SMPP Standard version 3.3
    Supports bidirectional communication
    RADIUS Authorization of voice calls, data sessions and short messages
    Postpaid accounting for voice, data and SMS
    Prepaid support by re-authorization
    Support for 3GPP, Cisco VoIP VSA and Cisco ISG VSA
    dictionaries
    SMS Format: SMS PDU (MO and MT)
    MAP/SS7 transport (T-PDU format)
    SIP MESSAGE transport (SMS over IP, R-PDU format)
    CDR Flexible file format (default .tsv les) with customizable table headers
    Automatic file rotation
    Optional file transfer: FTP, SFTP
    JSON HTTP push API
    RADIUS with 3GPP and Cisco dictionaries
    CAPIF (Common API Framework) 3GPP standard for 5G Core
    OpenAPI v3 JSON/HTTP
    HTTP v2 or v1.1 (fallback)
    HTTPS as standard, HTTP for testing
